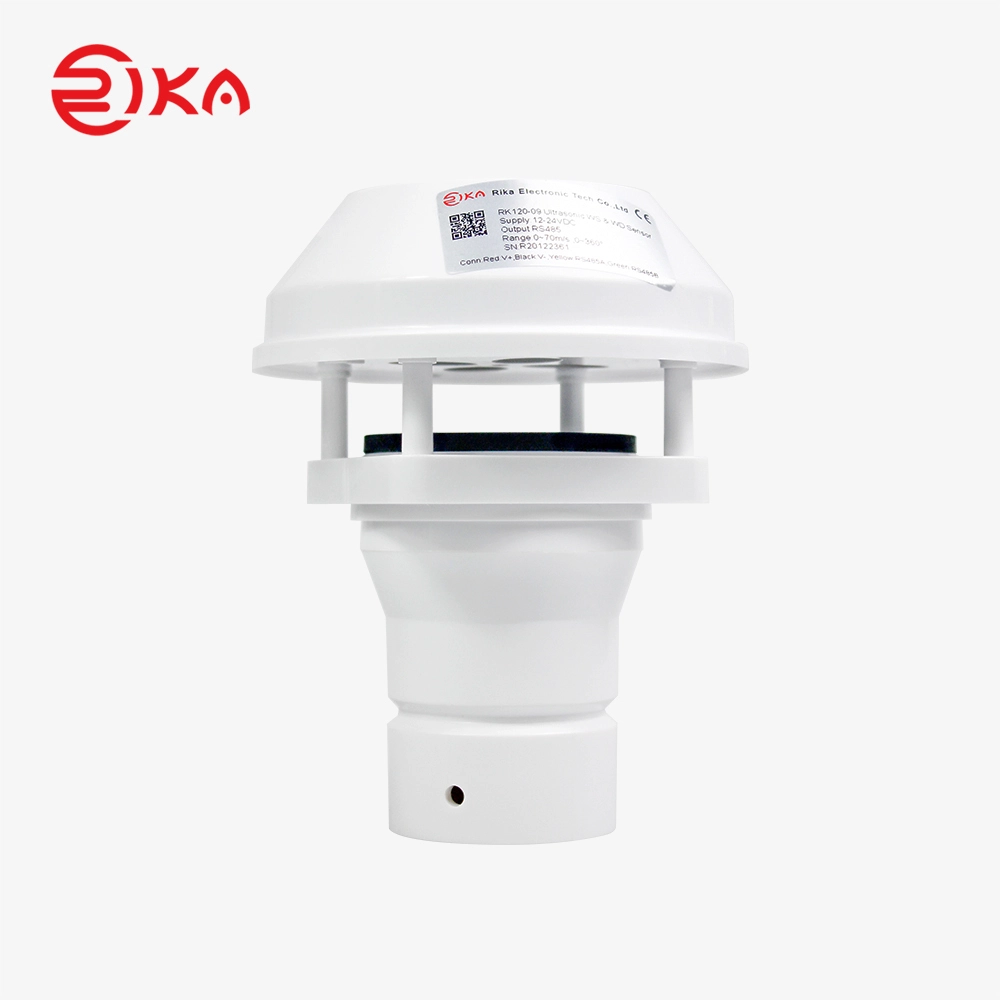

RK120-09 Sensor ultrasónico de dirección de velocidad del viento &
PRODUCT DESCRIPTION
RK120-09 wind speed and direction meter is a kind of measuring instrument which uses the time difference of ultrasonic wave in the air to measure the wind speed and direction.It uses low-power chip with power consumption of only 0.2W, which is especially suitable for solar or battery powered environment with high power consumption requirements. Due to the adoption of new technology and new process, the structure is more compact and compact.
SPECIFICATIONS
I tem | Technical Specification | ||
Wind speed | Wind direction | ||
Range | 0 - 70m/s | 0 - 359° | |
Resolution | 0.1m/s | 1° | |
Précision | ± 3 ％ | ±3 ° | |
Power Supply | 5V,12-24VDC | ||
Power consumption | 0.2W | ||
Output Signal |
RS232/RS485(Modbus/NMEA-0183),4-20mA/0-5V①optional
| ||
Operating Temperature | -40 ℃ -+80 ℃ | ||
Ingress Protection | IP65 | ||
Dimension | Ф110*140mm | ||
Weight(unpacked) | 0.22kg | ||
Main material | ASA | ||
①4-20mA/0-5V only for wind speed and direction, and the power supply can only be 12-24V.
DIMENSION
Unit：mm
