What is a Cup Anemometer and How Does It Work?

by:Rika Sensors     2024-04-04

Wind is a powerful natural force that has fascinated humans throughout history. Understanding and measuring wind speed is essential in various applications, from weather forecasting to aviation and wind energy generation. One of the most common instruments used to measure wind speed is a cup anemometer. This article will delve into what a cup anemometer is, how it works, and its significance in meteorology and other fields.

Understanding Wind Measurement

To comprehend the operation of a cup anemometer, it is crucial to grasp the fundamental concept of wind speed measurement. Wind speed refers to how fast the air is moving horizontally. It is typically measured in units such as meters per second (m/s), kilometers per hour (km/h), or miles per hour (mph).

The Design of a Cup Anemometer

Cup anemometers consist of a few key components that allow them to accurately measure wind speed. The most distinctive feature of a cup anemometer is its rotating cups or cups. Generally, three or four cups are arranged symmetrically on a horizontal axis. The cups are designed to catch the wind as it blows, causing the structure to spin.

The cups are usually mounted on a vertical rod or shaft, which then connects to the body or housing of the anemometer. The body houses the internal mechanism responsible for recording the rotational speed of the cups. It also contains electrical contacts that transmit this data to a display or recording device.

RK100-01 Metal Wind Speed Sensor Cup Anemometer

How Cup Anemometers Work?

Cup anemometers operate on a simple principle: the rotational speed of the cups is directly proportional to the wind speed. As the cups spin, a mechanism inside the anemometer measures the number of rotations per unit of time. These rotations are then converted into wind speed using a mathematical formula that takes into account the cup size, diameter, and other factors.

The electrical contacts in the anemometer track the revolutions of the cups and generate electrical pulses. The frequency of these pulses is directly proportional to the rotational speed of the cups and, consequently, the wind speed. By measuring the frequency of the electrical pulses, the anemometer can provide a quantitative measurement of wind speed.

It is important to note that cup anemometers are more suitable for measuring average wind speeds rather than instantaneous gusts. This is due to the inertia of the cups, which result in a slight delay in responding to sudden changes in wind speed.

Advantages of Cup Anemometers

Cup anemometers offer several advantages that make them popular in wind speed measurement:

1. Accurate and reliable: Cup anemometers have been extensively tested and calibrated, making them highly accurate and reliable in measuring wind speed. They consistently provide accurate data, making them crucial in meteorology, research, and various industries.

2. Robust and durable: Cup anemometers are designed to withstand harsh weather conditions, including high winds and extreme temperatures. Their sturdy construction and materials ensure long-term durability and minimal maintenance requirements.

3. Low power consumption: Cup anemometers consume relatively little power, making them suitable for remote installations or areas where power supply might be limited.

4. Simplicity: The design of cup anemometers is straightforward, making them easy to install and operate. Their simplicity also contributes to their reliability as there are fewer components susceptible to failure or malfunction.

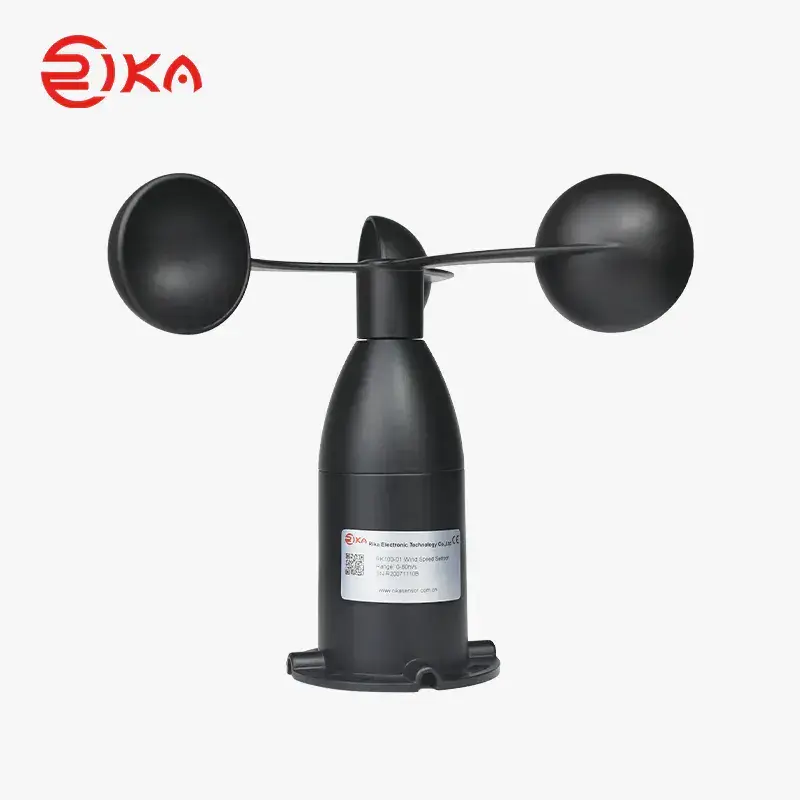

RK100-02 Plastic Wind Speed Sensor Wind Anemometer

Applications of Cup Anemometers

Cup anemometers find widespread use in a variety of fields and industries. Here are some of their primary applications:

1. Meteorology: Meteorologists use cup anemometers to measure wind speed in weather stations and during weather forecasting. Accurate wind speed data allows forecasters to predict weather patterns and issue warnings for severe weather conditions like hurricanes and tornadoes.

2. Aviation: Pilots and air traffic controllers rely on wind speed information provided by cup anemometers to ensure safe takeoffs, landings, and in-flight operations. Wind speed affects aircraft performance and can influence flight paths and navigation decisions.

3. Wind energy: Cup anemometers play a crucial role in the wind energy industry. Wind farm operators use anemometers to assess wind speed and select optimal locations for wind turbines. This data is essential for maximizing energy generation and predicting maintenance needs.

4. Research and environmental monitoring: Cup anemometers are used in various research applications, including studies on climate change, air pollution, and atmospheric dynamics. They provide valuable information for understanding the environment and its impact on ecosystems and human activities.

5. Outdoor activities and sports: Cup anemometers are popular among outdoor enthusiasts, sports lovers, and professionals engaged in activities such as sailing, paragliding, and kite flying. They provide real-time wind speed data, helping individuals make informed decisions and ensure their safety.


In conclusion, cup anemometers are indispensable instruments for measuring wind speed in a variety of applications. Their simple yet effective design allows for accurate and reliable measurements, making them valuable tools in meteorology, aviation, wind energy, research, and various recreational activities. By understanding how cup anemometers work, we gain a deeper appreciation for the advancements in wind speed measurement and the critical role they play in our daily lives. So, next time you come across a cup anemometer, you'll have a better understanding of its purpose and significance.
