Sensor de iones de amonio (NH4+) RK500-15
PRODUCT DESCRIPTION

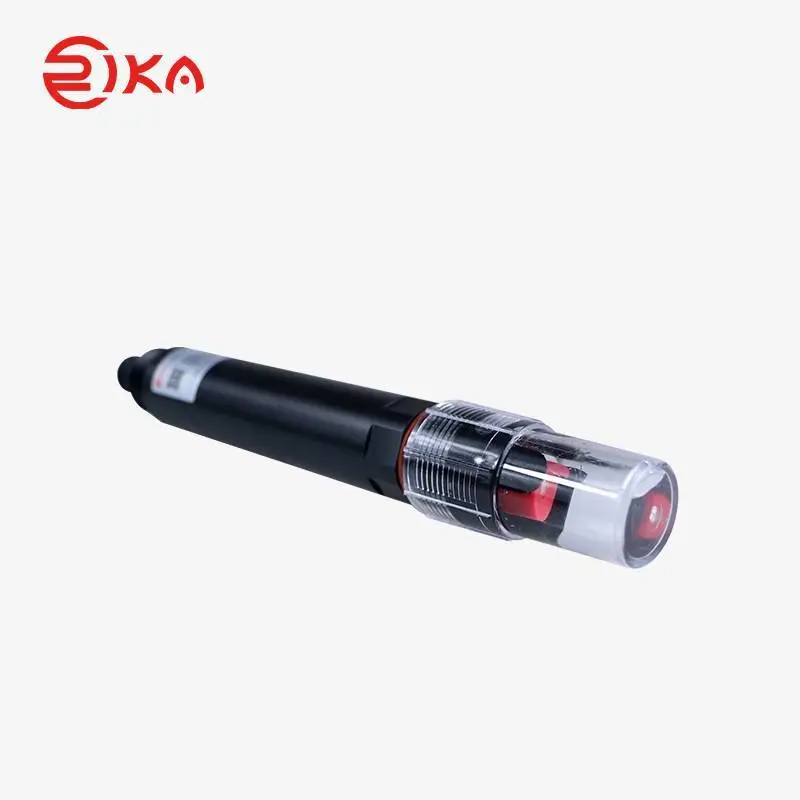

The RK500-15 Ammonia Nitrogen Sensor uses an ammonium ion electrode based on PVC film to test the content of ammonium ion in water. With temperature compensation, the measurement is fast, simple and accurate. The internal reference liquid of the ammonium ion electrode exudates from the microporous salt bridge very slowly. The forward exudation of the reference liquid can last for more than 20 months, and the service life of the electrode is longer than that of the ordinary industrial electrode. Riaka innovative ammonium sensor utilizes cutting-edge technology to precisely measure ammonia concentrations, ensuring water quality and safety. Whether you need to monitor ammonia levels in wastewater treatment plants, aquaculture facilities, or environmental monitoring applications, our ammonia nitrogen sensor delivers reliable results every time. Trust our water ammonia sensor for efficient and dependable ammonia nitrogen detection. With its user-friendly interface and durable construction, our sensor is designed to meet your monitoring needs with ease.
SPECIFICATIONS
| Articol | Technical Specification |
| Range | 0-10ppm,0-100ppm |
| Accuracy | ±5%FS |
| Resolution | 0.1mg/L |
| Drift | ≤0.1ppm/24h |
| Supply | 7-28VDC |
| Output | 4-20mA@RS485(Modbus-RTU) |
| Pressure resistance | <0.5mpa |
| Response time | 5s (98%,flowing liquid) ,14s (98%,stationary liquid) |
| Power consumption | <0.5W |
| Operating temperature | 0-55 ℃ |
| Probe material | ABS |
| Ingress protection | IP68 |
| Cable length | 5m default, other length optional |
| Storage | 10-60 ℃ @20%-90%RH |
DIMENSION
Unit：mm
