PRODUCT DESCRIPTION

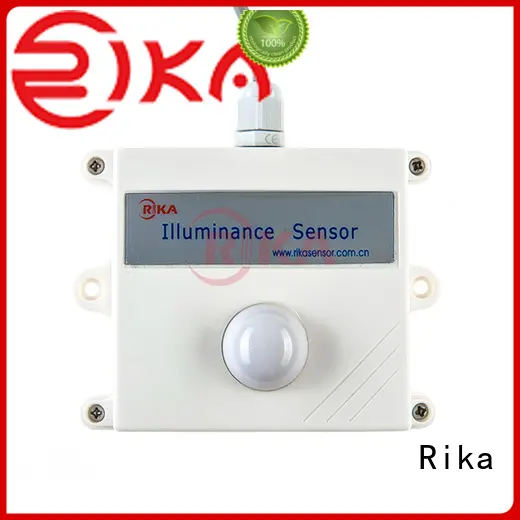

RK210-01 Illuminance Sensor is very sensitivity and can detect weak light, has a wide measuring range, high accuracy, good waterproof performance, easy to use, easy to install. It’s suitable for most applications, especially in agricultural greenhouses, urban lighting and other places.

great pyranometer solar radiation factory-1

great pyranometer solar radiation factory-2

Suitable for harsh environment.

great pyranometer solar radiation factory-3

Conform to the WMO standard.

great pyranometer solar radiation factory-4

Visual desiccant Window.

great pyranometer solar radiation factory-5

Low power Consumption.

great pyranometer solar radiation factory-6

High sensitivity.

great pyranometer solar radiation factory-7

Easy installation.

SPECIFICATIONS

Item	SPECIFICATIONS
Range	0-100lux,0-2000lux,0-20klux,0-200klux optional
Spectral range	380-780nm
Supply	5VDC,12-24VDC
Output	4-20mA,0-5V,0-10V,RS485
Accuracy	±5%FS
Response time	1s
Temperature effect	±0.2%/℃
Repeatability	<1%FS
Operating temperature	-40℃-+75℃
Weight(unpacked)	170g
Shell material	ABS,metal shell can be customized
Dimension	1178656mm

DIMENSION & MOUNTING

great pyranometer solar radiation factory-8

Unit:mm

PRODUCT DETAILS

great pyranometer solar radiation factory-9

great pyranometer solar radiation factory-10 Product Principle

great pyranometer solar radiation factory-11

great pyranometer solar radiation factory-12 Product Material & Installation

great pyranometer solar radiation factory-13

great pyranometer solar radiation factory-14 Multiple Output Optional
