Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

RK500-12 Type-B1 water ph probe（Conventional water） 1

RK500-12 Type-B1 water ph probe（Conventional water） 2

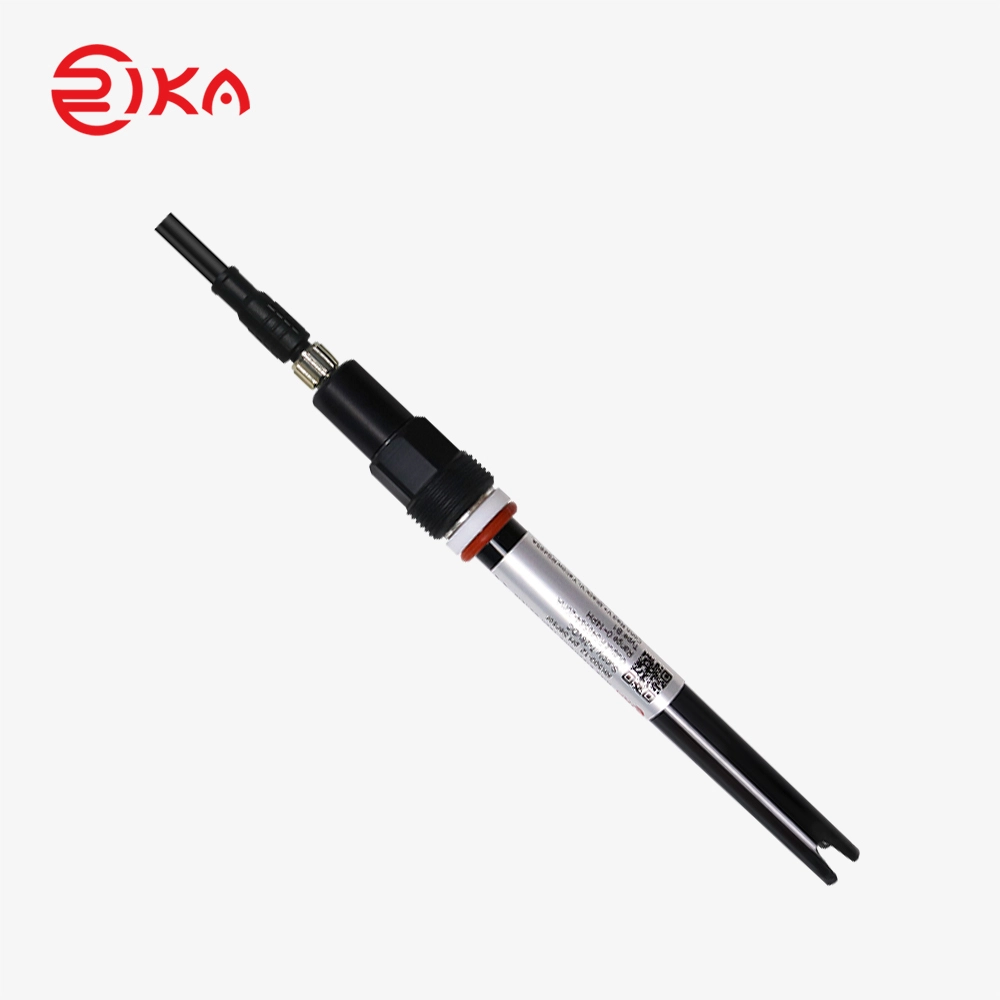

RK500-12 Type-B1 water ph probe（Conventional water）

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

1PCS

Model:

RK500-12 B1

Lead Time:

7-11 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

download

RK500-12 pH sensor specification V5

Write a Review

PDF Download

PRODUCT DESCRIPTION

RK500-12 pH sensor is a good solution to measure the pH value. It does not require a professional calibration instrument and is simple to operate. It can be used to continuously measure the pH value of wastewater. It is suitable for agriculture, sewage treatment plants, chemical industry, printing and dyeing, papermaking, pharmaceuticals, electroplating and environmental protection.

RK500-12 Type-B1 water ph probe（Conventional water） 3

RK500-12 Type-B1 water ph probe（Conventional water） 4

Fast response.

RK500-12 Type-B1 water ph probe（Conventional water） 5

Excellent stability.

RK500-12 Type-B1 water ph probe（Conventional water） 6

Widely used.

RK500-12 Type-B1 water ph probe（Conventional water） 7

High precision.

RK500-12 Type-B1 water ph probe（Conventional water） 8

High sensitivity.

RK500-12 Type-B1 water ph probe（Conventional water） 9

Simple operation.

SPECIFICATIONS

Technical Parameter
Type	B1
Material	PC+ABS
Operation temperature	0-60℃
Working pressure	0.6Mpa
Thread	PG13.5
Electrical connection	M8 waterproof connector
Application	Conventional water, sewage, nutrient solution, etc
Range	0-14pH
Resolution	0.01pH
Accuracy	0.01pH
Response time	10 seconds (98% ﬂowing liquid)
Temperature compensation	Thermal resistance
Power supply	7-28VDC(< 0.15W)
Output	RS485 & 4-20mA
Dimensions	Φ12.0 x 170.0
Ingress protection	IP68

pH Scale

pH value	Description
<4.5	Strongly acidity
4.5-5.5	Acidity
5.5-6.5	Faintly acidity
6.5-7.5	Neutral
7.5-8.5	Faintly alkalinity
8.5-9.5	Alkalinity
>9.5	Strongly alkalinity

Electrode Maintenance

When the probe is not in use, it can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water, deionized water, or tap water with very low ion content. If the pH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l HCl or sodium hydroxide solution for a few minutes, and then rinsed with distilled water.If the pH electrode is contaminated with organic matter, it can be cleaned with alcohol or acetone, and then rinsed with distilled water. (Note: When using, remove the protective cap in front of the electrode)

According to the work environment, clean the electrodes with tap water every 3 or 6 months.

Installation & Fixed

Installation bracket (Iength=1m) NPT3/4 installation thread is optional
