 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

great anemometer sensor industry for industrial applications 1
great anemometer sensor industry for industrial applications 1

great anemometer sensor industry for industrial applications

Payment:
T/T, L/C or Paypal
MOQ:
1PCS
Model:
RK120-01C
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry
Product Details
Rika Sensors pays great attention to product quality and strives for perfection in every detail of products. This enables us to create fine products.weather sensors, manufactured based on high-quality materials and advanced technology, has excellent quality and favorable price. It is a trustworthy product which receives recognition and support in the market.
  • great anemometer sensor industry for industrial applications 2
Enterprise Strength
  • Rika Sensors has always been committed to providing professional, considerate, and efficient services.

PRODUCT DESCRIPTION

great anemometer sensor industry for industrial applications 3

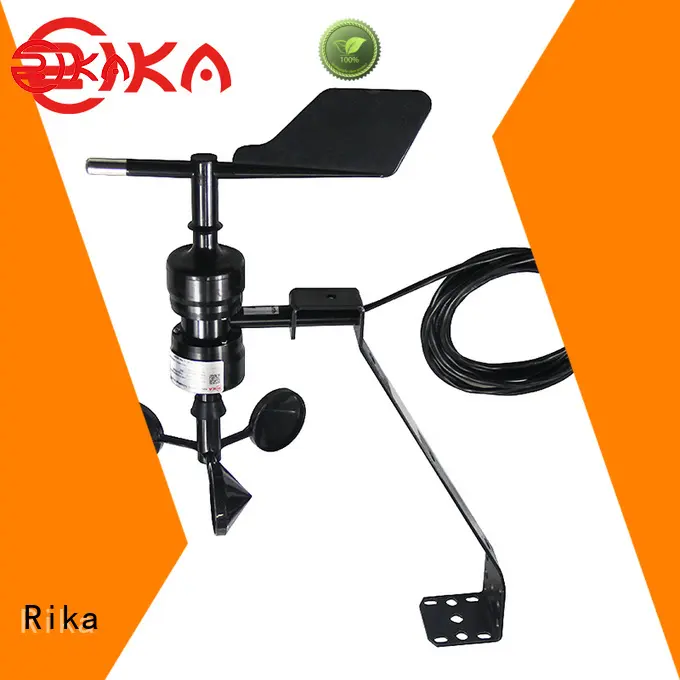

RK120-01C Combined Wind Speed & Direction Sensor is assembled with aluminum alloy precision machined parts, which has high strength and convenient installation.The wind speed part adopts the traditional three-wind cup structure, the wind cup is made of carbon fiber material, the starting performance is good, the measuring range is large, the linearity is good, stable and reliable.The wind direction part adopts low inertia wind direction to respond to the wind direction. When the wind direction changes, the tail wheel drives the angle sensor to sense the azimuth change, thereby generating a change of electrical signal output, good linearity, high precision, and no blind zone.

great anemometer sensor industry for industrial applications 4

SPECIFICATIONS


Item

Technical Specification


Wind speed

Wind direction

Range

0-45m/s(current or voltage ouput);


0-70m/s(pulse,RS485,RS232 output)

0-360°

Resolution

0.1m/s

Accuracy

±(0.3+0.03V)m/s ,V is current wind speed

≤±3°

Acquisition Cycle

3s

Starting wind speed

0.5m/s

Limited wind speed

75m/s

Supply

5V(only for digital output),12-24VDC

Output Signal

RS485,4-20mA,0-5V,RS232,pulse(NPN,only for wind speed)

Operating Temperature

-40℃-+70℃

Ingress Protection

IP65

Main material

Aluminum alloy and carbon fiber

                 Cups:PA, reinforced with carbon fibre, black

              Vane:PA, reinforced with fiberglass, white


Storage10-60℃@20%-90%RH
Cable lengthDefault 2.5m,other length is optional
Installation bracketattached
Weight(unpacked)700g




DIMENSION & MOUNTING

Unit:mm
Unit:mm

Unit:mm

PRODUCT DETAILS

great anemometer sensor industry for industrial applications 13

great anemometer sensor industry for industrial applications 14Product Principle & Output

great anemometer sensor industry for industrial applications 15

great anemometer sensor industry for industrial applications 16 Product Material

PRODUCT MOUNTING

great anemometer sensor industry for industrial applications 17

PRODUCT APPLICATION



Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
