 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

RK500-04 Type-B Dissolved Oxygen(DO) Sensor 1
RK500-04 Type-B Dissolved Oxygen(DO) Sensor 2
RK500-04 Type-B Dissolved Oxygen(DO) Sensor 3
RK500-04 Type-B Dissolved Oxygen(DO) Sensor 4
RK500-04 Type-B Dissolved Oxygen(DO) Sensor 5
RK500-04 Type-B Dissolved Oxygen(DO) Sensor 6
RK500-04 Type-B Dissolved Oxygen(DO) Sensor 1
RK500-04 Type-B Dissolved Oxygen(DO) Sensor 2
RK500-04 Type-B Dissolved Oxygen(DO) Sensor 3
RK500-04 Type-B Dissolved Oxygen(DO) Sensor 4
RK500-04 Type-B Dissolved Oxygen(DO) Sensor 5
RK500-04 Type-B Dissolved Oxygen(DO) Sensor 6

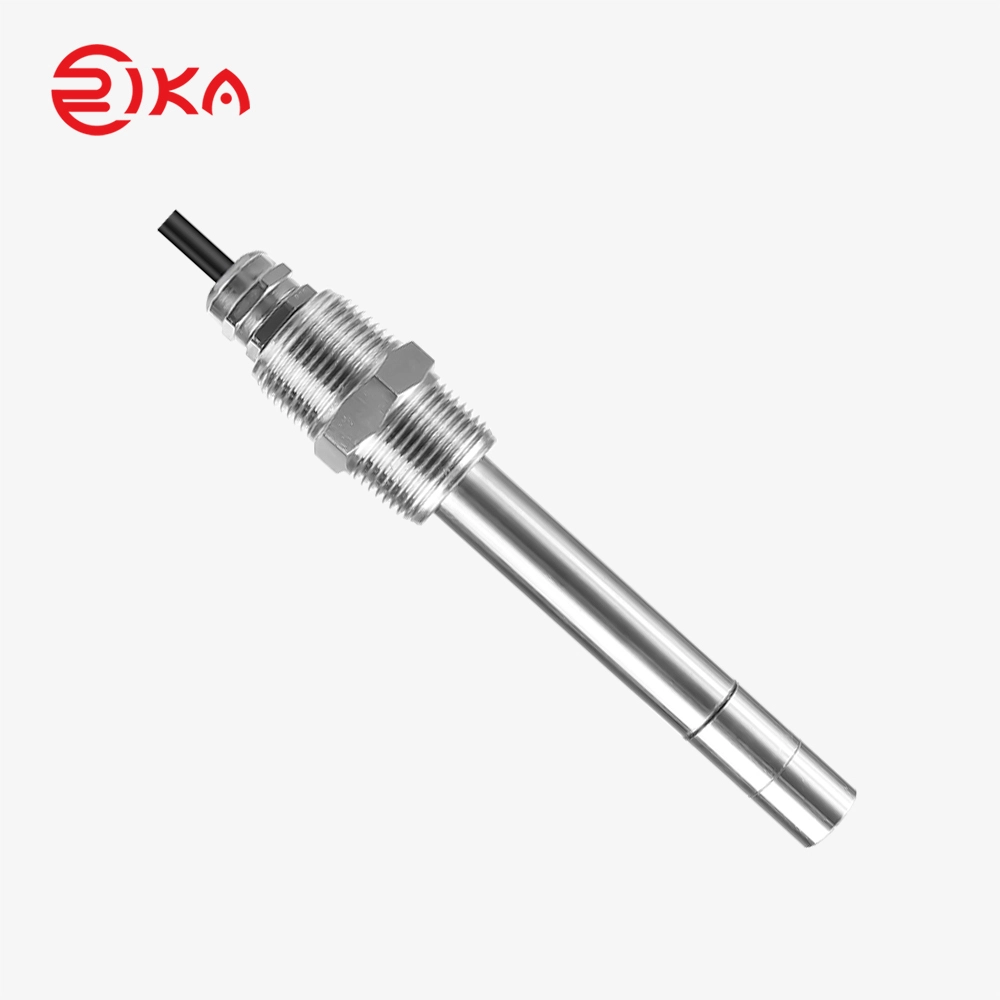

RK500-04 Type-B Dissolved Oxygen(DO) Sensor

    oops...!

    no product data.

    Go to homepage
    RK500-04 DO sensor specification V5.0.pdf
    RK500-04 DO sensor specification V5.0.pdf
    PDF Download

    PRODUCT DESCRIPTION

    RK500-04 Dissolved Oxygen(DO) Sensor design based on the principle of fluorescence and high performance through oxygen membrane, with short response time, measurement accuracy, stable performance, etc. It is a excellent device designed to deliver accurate, reliable, and real-time measurements of oxygen levels in aquatic environments. The water dissolved oxygen sensor can be widely used in chemical fertilizer, metallurgy, environmental protection water treatment engineering, pharmaceutical, biochemical, food, aquaculture and water such as continuous monitoring of dissolved oxygen in the solution.

    dissolved-oxygen-sensor-product-description
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 8
    High precision.
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 9
    High sensitivity.
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 10
    Fast response.
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 11
    Widely used.
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 12
    Excellent stability.
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 13
    Simple operation.

    SPECIFICATIONS

    Technical Parameter

    Type

    500-04 Type-B

    Performance Edition

    Application

    Industrial control, general sewage, environmental

    Sensor

    DO

    Temperature

    Range

    0-20mg/L
    0-50mg/L

    0-60℃

    Accuracy

    0.2mg/L

    ±0.5℃

    Resolution

    0.01mg/L

    0.1℃

    Repeatability

    0.05mg/L

    Response time

    T90<40S

    Stability

    Drift <0.2mg/L/year

    Material

    All stainless steel 316L

    Principle

    Fluorescent

    Temperature compensation

    Thermal resistance

    Thread

    Lower: NPT3/4,Upper:NPT3/4

    Installation method

    Pipe or dip (IP68)

    Operating temperature

    -5 - +60℃

    Working pressure

    0.8Mpa

    Supply

    7-28VDC

    Power consumption

    <0.2W

    Output

    RS485 & 4-20mA at the same time

    Ingress protection

    IP68

    Cable length

    5m default, other length customizable

    Weight(probe)

    0.7kg

    Storage

    -20 - +80℃

    DIMENSION

    Uint:mm

    Dissolved Oxygen(DO) Sensor

    Thread:Lower:NPT3/4,Upper:NPT3/4

    Installation & Usage

    ·Put directly into the liquid

    ·Adoptsubmersiblemountingbracket(showinthebelowfigure)

    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 15

    PRODUCT APPLICATION

    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 16
    Agricultural Irrigation
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 17
    Urban Sewage
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 18
    River
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 19
    Reservoir
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 20
    Biodegradation
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 21
    Chemical
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 22
    Well
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 23
    Water Treatment

    CUSTOMER TESTIMONIALS

    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 24
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 25

    CERTIFICATE

    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 26
    ISO9001
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 27
    TUV Certificate
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 29
    RoHS-Automatic Weather Station
    RK500-04 Type-B Dissolved Oxygen(DO) Sensor 30
    EMC-Automatic Weather Station
