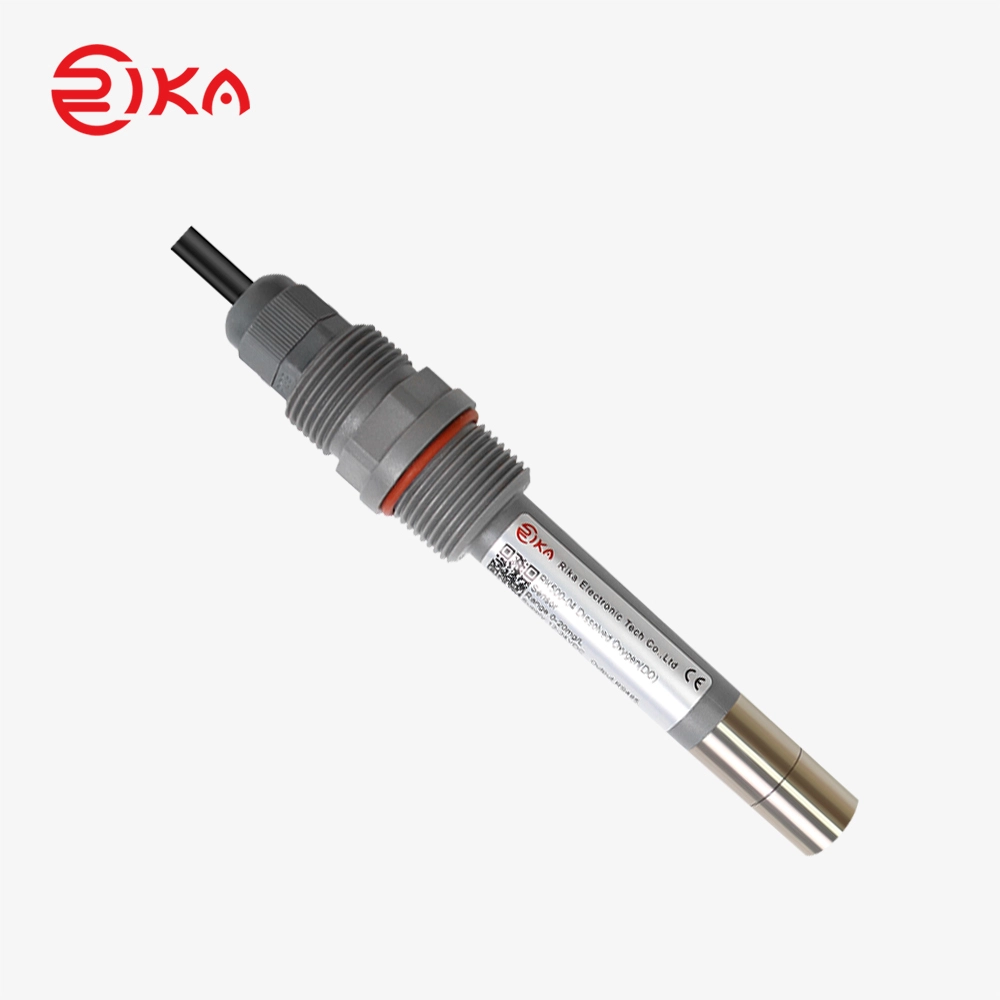

RK500-04 Type-C Corrosion Resistant Dissolved Oxygen Sensor

    oops...!

    no product data.

    Go to homepage
    RK500-04 DO sensor specification V5.0.pdf
    RK500-04 DO sensor specification V5.0.pdf
    PDF Download

    PRODUCT DESCRIPTION

    The ​​500-04 Type-C​​ represents a pinnacle of engineering in environmental and industrial monitoring technology, engineered to excel in the most demanding scenarios such as mariculture, strongly corrosive wastewater environments, and complex operational settings. As a versatile and rugged sensor solution, it redefines precision and durability by integrating cutting-edge materials, intelligent design, and industry-leading performance—making it an indispensable tool for professionals who demand reliability in harsh conditions.


    Built to withstand corrosion and challenging environments, the sensor features a fluorescent cap constructed from titanium alloy and a body made of gray nylon reinforced with fiber, ensuring superior strength and chemical resistance. Its exceptional repeatability (0.05mg/L for DO) and rapid T90 response time (<40 seconds) ensure responsive, reliable data, even in fluctuating conditions.

    dissolved-oxygen-sensor-product-description
    RK500-04 Type-C Corrosion Resistant Dissolved Oxygen Sensor 4
    High precision.
    RK500-04 Type-C Corrosion Resistant Dissolved Oxygen Sensor 5
    High sensitivity.
    RK500-04 Type-C Corrosion Resistant Dissolved Oxygen Sensor 6
    Fast response.
    RK500-04 Type-C Corrosion Resistant Dissolved Oxygen Sensor 7
    Widely used.
    RK500-04 Type-C Corrosion Resistant Dissolved Oxygen Sensor 8
    Excellent stability.
    RK500-04 Type-C Corrosion Resistant Dissolved Oxygen Sensor 9
    Simple operation.

    SPECIFICATIONS

    Technical Parameter

    Type

    500-04 Type-C

    Strong anti-corrosion

    Application

    Mariculture, strongly corrosive sewage, complex scenes

    Sensor

    DO

    Temperature

    Range

    0-20mg/L
    0-50mg/L

    0-60℃

    Accuracy

    0.2mg/L

    ±0.5℃

    Resolution

    0.01mg/L

    0.1℃

    Repeatability

    0.05mg/L

    Response time

    T90<40S

    Stability

    Drift <0.2mg/L/year

    Material

    Fluorescent cap: titanium alloy, other : gray nylon plus fiber

    Principle

    Fluorescent

    Temperature compensation

    Thermal resistance

    Thread

    Lower: NPT3/4,Upper:NPT3/4

    Installation method

    Pipe or dip (IP68)

    Operating temperature

    -5 - +60℃

    Working pressure

    0.8Mpa

    Supply

    7-28VDC

    Power consumption

    <0.2W

    Output

    RS485 & 4-20mA at the same time

    Ingress protection

    IP68

    Cable length

    5m default, other length customizable

    Weight(probe)

    0.7kg

    Storage

    -20 - +80℃

    DIMENSION

    Uint:mm

    Dissolved Oxygen(DO) Sensor

    Thread:Lower:NPT3/4,Upper:NPT3/4

    Installation & Usage

    ·Put directly into the liquid

    ·Adoptsubmersiblemountingbracket(showinthebelowfigure)
