Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.
Industrial Ec Sensor - for Water Quality Monitoring - Rika Sensor
Product details of the industrial ec sensor
Product Introduction
industrial ec sensor's design idea is based on the search for a high-quality life standard. The product performs well and has a long service life and internationally-proven quality. Hunan Rika Electronic Tech Co.,Ltd will pays high attention to complaints of our industrial ec sensor and take immediate measures to improve.
PRODUCT DESCRIPTION

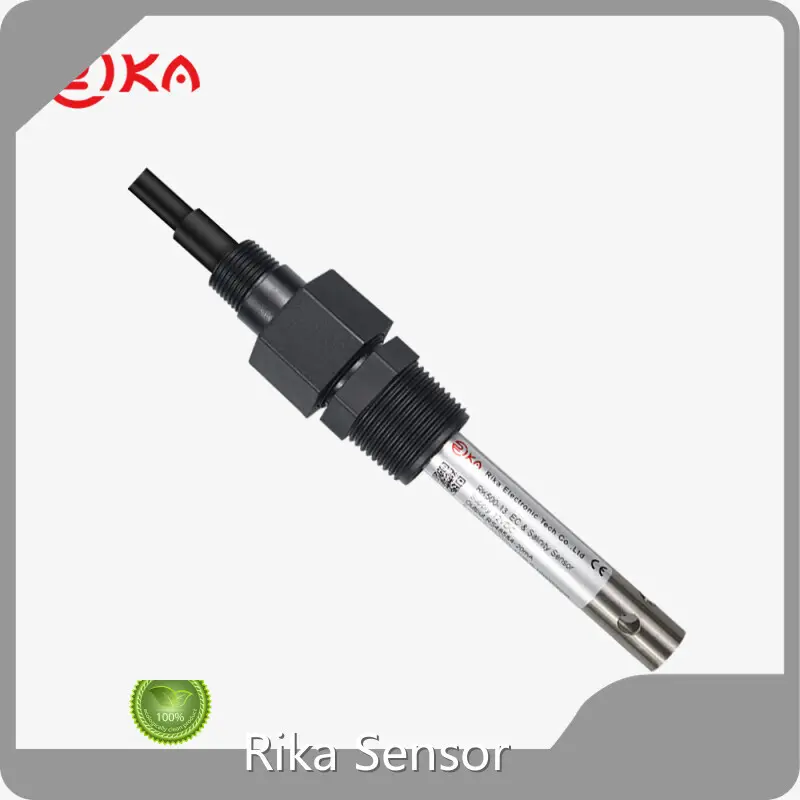

RK500-13 EC Sensor uses advanced anti-polarization technology, internal signal isolation technology, and have strong anti-interference ability. Stable measurement, accurate, maintenance-free, easy to install. It achieves exceptional data quality with an accuracy of ±1%FS and a rapid 1-second response time, ensuring you capture real-time changes in water quality. The EC conductivity meter is mainly used in aquaculture, water source testing, sewage treatment, environmental monitoring and so on.
SPECIFICATIONS
Technical Parameter | |
Type | RK500-13-B |
Conventional type | |
Main material | Nylon fiber+316electrode |
Screw thread | Bottom : NPT3/4 |
PressureResistance | 1.0MPa |
TemperatureCompensation | Automatic (Temperature 0-60℃) |
Output signal | 4-20mA & RS485 at the same time |
Supply | 7-30VDC |
Range EC | 0～2000μs/cm, 0～5000μs/cm,0～10000μs/cm, 0～20000μs/cm(any range of 0-300ms/cmcan be customized, 1ms/cm = 1000μs/cm) |
Accuracy | ±1%FS |
Resolution | 0.01mS/cm |
Power consumption | <0.2W |
Principle | Frequency conversion method |
Response time | 1s |
Drift | ≤0.3%FS/24h |
Measurement environment | 0-60℃(High temperature electrodes can be customized) |
Ingress protection | IP68 |
Storage | 10-60℃@20%-90%RH |
Cable length | 5m default, other length customizable |
Application | General freshwater testing, high pressure-resistant environment |
Installation & Usage
- Put directly into the liquid
- Adopt submersible mounting bracket (showin the below figure)
PRODUCT APPLICATION
CUSTOMER TESTIMONIALS
CERTIFICATE
Company Feature
• Rika Sensor, built in has developed the business based on laborious efforts. Now we are a leading company in the industry with well-grounded equipment, strong technological capability, and high brand awareness.
• Our company has developed products that comply with international safety regulations, and has broadened the market scope. In addition to being sold domestically, our products are also exported to Southeast Asia, Europe and the United States.
• Rika Sensor runs a comprehensive service system covering from pre-sales to sales and after-sales. Customers can rest assured during the purchase.
• Rika Sensor's location enjoys traffic convenience and complete facilities and good comprehensive environment. All these are good for the efficient transportation of weather sensors,environmental sensor,environmental monitoring.
Welcome to contact us.
