Pure Water Ph Sensor Maker for Aquaculture
Company Advantages
· The raw materials of Rika Sensor pure water ph sensor are procured from our trusted vendors.
· The product is well received in the market for its high performance and reliable quality.
· Rika Sensor set up an integrated series of quality assurance system to ensure the pure water ph sensor quality.
PRODUCT DESCRIPTION

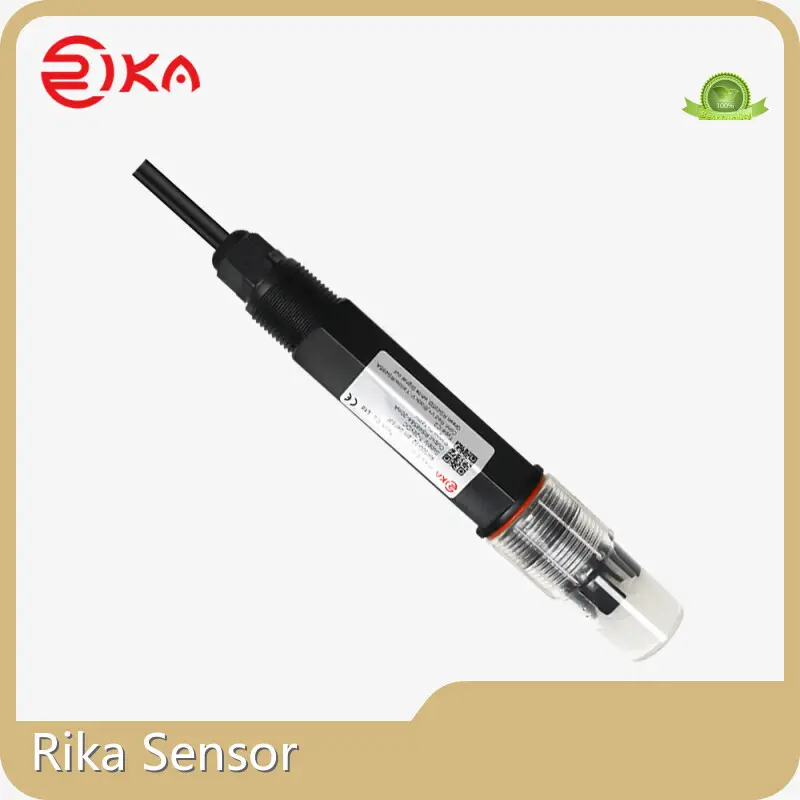

The RK500-12 C3 pH Sensor, a dedicated model developed for high-temperature environments, operates stably at temperatures exceeding 80℃ with an upper operating temperature limit of 100℃. It can withstand a working pressure of 1MPa, effortlessly coping with extreme monitoring scenarios such as high-temperature industrial processes and high-temperature wastewater treatment. Constructed with a high-quality Glass+ABS material combination, it not only exhibits excellent high-temperature stability but also possesses superior hydrolysis resistance and corrosion resistance, effectively eliminating alkali errors and ensuring long-term reliable operation in high-temperature complex liquid environments.
SPECIFICATIONS
Technical Parameter | |
Type | C3 |
Material | Glass+PPS |
Operation temperature | 0-100℃ |
Working pressure | 1MPa |
Response time | 10 seconds (98% flowing liquid) |
Electrical connection | Direct cable |
Application | High tempera-ture occasions, etc |
Thread | Upper: NPT3/4 thread,Lower: NPT3/4 thread |
Range | 0-14pH |
Resolution | 0.01pH |
Accuracy | 0.01pH |
Temperature compensation | Thermal resistance |
Power supply | 7-30VDC(< 0.15W) |
Output | RS485 & 4-20mA |
Dimensions | Φ31.0 x 180.0 |
Ingress protection | IP68 |
PRODUCT DETAILS
pH Scale
pH value | Description |
<4.5 | Strongly acidity |
4.5-5.5 | Acidity |
5.5-6.5 | Faintly acidity |
6.5-7.5 | Neutral |
7.5-8.5 | Faintly alkalinity |
8.5-9.5 | Alkalinity |
>9.5 | Strongly alkalinity |
Electrode Maintenance
When the probe is not in use, it can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water, deionized water, or tap water with very low ion content. If the pH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l HCl or sodium hydroxide solution for a few minutes, and then rinsed with distilled water.If the pH electrode is contaminated with organic matter, it can be cleaned with alcohol or acetone, and then rinsed with distilled water. (Note: When using, remove the protective cap in front of the electrode)
According to the work environment, clean the electrodes with tap water every 3 or 6 months.
Installation & Fixed
Installation bracket (Iength=1m) NPT3/4 installation thread is optional
PRODUCT APPLICATION
CUSTOMER TESTIMONIALS
CUSTOMER TESTIMONIALS
Company Features
· Hunan Rika Electronic Tech Co.,Ltd ranked first in China's production and sales of pure water ph sensor for many years.
· Hunan Rika Electronic Tech Co.,Ltd has strong R&D and product reserves capabilities.
· Our goal is to provide consistent customer delight. We are putting efforts on providing innovative products at the highest level.
Product Details
Compared with ordinary products, our pure water ph sensor has the specific differences as follows.
Product Comparison
Compared with other products in the same category, pure water ph sensor has more advantages, specifically in the following aspects.
Enterprise Advantages
With excellent working environment and sound incentive mechanism, our company has attracted a group of professional, high-level and capable talents to form a team with strong technical R&D strength and comprehensive strength, which provides a good guarantee for our healthy development.
Rika Sensor focuses on the internal management and opens up the market. We actively explore innovative thinking and fully introduce modern management mode. We continuously achieve development in the competition based on strong technical capability, high-quality products, and comprehensive and thoughtful services.
Rika Sensor intends to be honest, efficient, cooperative and win-win in the business operation. We are committed to providing quality products and excellent services for the majority of customers.
Since the inception in Rika Sensor has gone through the development for years. Now, we have advanced production and processing techniques.
Our company has developed products that comply with international safety regulations, and has broadened the market scope. In addition to being sold domestically, our products are also exported to Southeast Asia, Europe and the United States.
