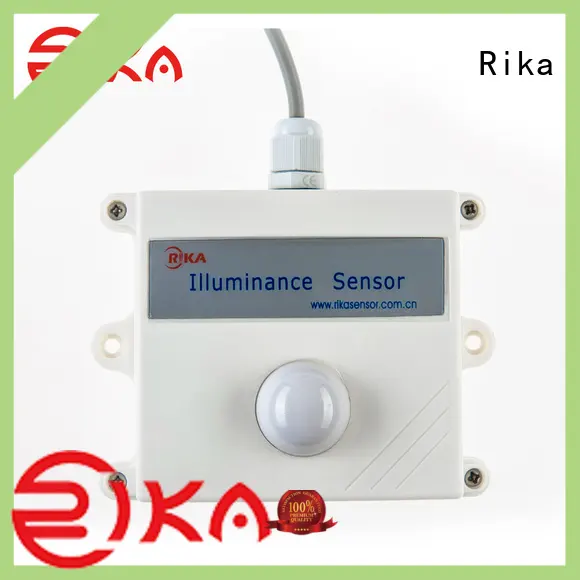

professional illuminance sensor supplier

Professional illuminance sensor supplier

Model:
RK200-02
MOQ:
2PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

PRODUCT DESCRIPTION

The RK200-02 PAR Sensor is mainly used for measuring solar radiation within 400~700nm wavelength. It is easy installation and can work continuously in all weathers. When there is sunlight, voltage output proportional to incident light intensity will be generated by the silicon-photo detector in the sensor. Its sensitivity is proportional to the cosine of incident light direct angle. Each product is with one sensitivity coefficient respectively. It can directly output radiation value in unit of μ*mol/m2*s.

    professional illuminance sensor supplier-1

    SPECIFICATIONS

    Item

    Specification

    Spectral range

    0-2500μ*mol/m2*s

    350-1100nm

    0-2000W/m2400-700nm

    Supply

    5V,12-24VDC

    Accuracy
    ±5% rdg

    Range

    0-2500μ*mol/m2,0-2000W/m2

    Output

    0-2000mV

    4-20mA(2-wires)

    RS485

    Sensitivity

    0-2500μ*mol/m2*s

    0.8mV/μmol*m-2* S-1

    6.4μA/μ*mol*m2*s/
    0-2000W/m21mV/W/m28uA/W/m2/

    Response time

    <1s (99%)

    Temperature effect

    <0.05%/℃

    Cosine correction

    <10% (until 80°)

    Non-linearity

    <±2%

    Operating temperature

    -40℃-+80℃°

    Shell material

    Aluminum alloy

    Storage Condition

    10℃-60℃@20%-90%RH


    OUTPUT CHARACTERISTICS

     0-2000mV

    Range:0-2000W  PAR values(W)= Voltage output value(μV)/1000

    Range:0-2500μ*mol/m2*s  PAR values(μ*mol/m2*s)= Voltage output value(μV)/800

     4-20 mA

    Range:0-2000W  PAR values(W)=(I(μA)-4000μA)/8 (Where I is output current value,unit:μA )

    Range:0-2500μ*mol/m2*s  PAR values(μ*mol/m2*s)= (I(μA)-4000μA)/6.4(Where I is output current value,unit:μA )

     RS485

    MODBUS-RTU

    DIMENSION

    professional illuminance sensor supplier-8

    In order to ensure measurement accuracy, please keep the horizontal installation.


    PRODUCT DETAILS

    professional illuminance sensor supplier-9

    professional illuminance sensor supplier-10Product Principle

    professional illuminance sensor supplier-11

    professional illuminance sensor supplier-12 Product Range

    professional illuminance sensor supplier-13

    professional illuminance sensor supplier-14Product Output Optional

    professional illuminance sensor supplier-15

    professional illuminance sensor supplier-16Product Installation

    PRODUCT APPLICATION



    The design of Rika Sensors uv measurement involves several stages. They are trend studies, fabric and accessory research, sample making, etc.
    Rika Sensors pyranometer solar radiation is required to undergo a series of tests. The tests include the insulation properties of materials, the integration of the circuit board, the shockproof performance of housing.
    Rika Sensors uv measurement 's design takes into account the use of color. This is decided by fashion professionals who understand color psychology and chemistry.
    Rika Sensors illuminance sensor is designed using a variety of techniques. Its design is with the add of the CAD system, CNC machine tool processing, hydraulic pneumatic transmission, plc function design, etc.
    Rika Sensors illuminance sensor is carefully manufactured. The production process includes cutting, sewing and finishing. Being divided into many fine operations, it is necessary to produce the product.
    This solar pyranometer is illuminance sensor and practical for illuminance sensor.
