 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika air quality sensor factory for dust monitoring1 1
Rika air quality sensor factory for dust monitoring1 1

Rika air quality sensor factory for dust monitoring1

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2 PCS
Model:
RK300-02
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry
Application Scope
Rika Sensors's environmental monitoring is widely applicable in the Manufacturing Environmental Protection Waste Treatment Environmental Products industry.According to different needs of customers, Rika Sensors is capable of providing reasonable, comprehensive and optimal solutions for customers.
  • Rika air quality sensor factory for dust monitoring1 2
Enterprise Strength
  • Rika Sensors provides complete services for customers with professional, sophisticated, reasonable and fast principles.

PRODUCT DESCRIPTION

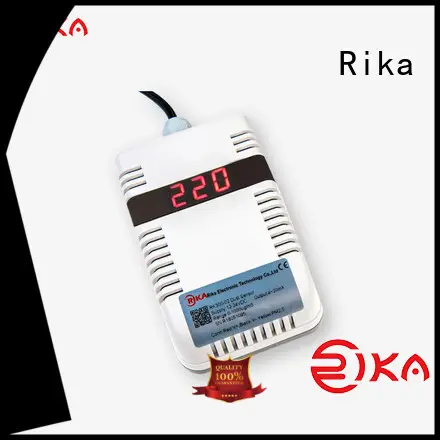

RK300-02 Dust Sensor using laser scattering principle, detecting the existence of dust particle concentration in the air, the minimum can detect 1.0um particles, has a good consistency and stability.According to different usage environment ,there are indoor type and outdoor type to select.

Rika air quality sensor factory for dust monitoring1 3

SPECIFICATIONS

Item

Technical Specification

Sampling object

PM1.0, PM2.5, PM10 Concentration

Range

0-1000ug/m3

Accuracy

±3%FS@25℃

Supply

5VDC,12-24VDC

Output

4-20mA,0-5V,0-10V,RS485

Power Consumption

<50mA@24V(4-20mA)

Warm Up Time

3min

Response Time

<90s

Temperature Drift

≤0.2%FS/℃

Stability

<±2%fs

Repeatability

<±1%fs

Operating Temperature

-20℃-+50℃@15-80%RH

Storage

-40-60℃@20%-90%RH

Shell material

ABS

DIMENSION & MOUNTING

PRODUCT DETAILS

Rika air quality sensor factory for dust monitoring1 12

Rika air quality sensor factory for dust monitoring1 13Product Principle

Rika air quality sensor factory for dust monitoring1 14

Rika air quality sensor factory for dust monitoring1 15 Suitable For Harsh Environment

Rika air quality sensor factory for dust monitoring1 16

Rika air quality sensor factory for dust monitoring1 17Multiple Range & Output Optional

Rika air quality sensor factory for dust monitoring1 18

Rika air quality sensor factory for dust monitoring1 19Material & LED Display

PRODUCT APPLICATION



Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
