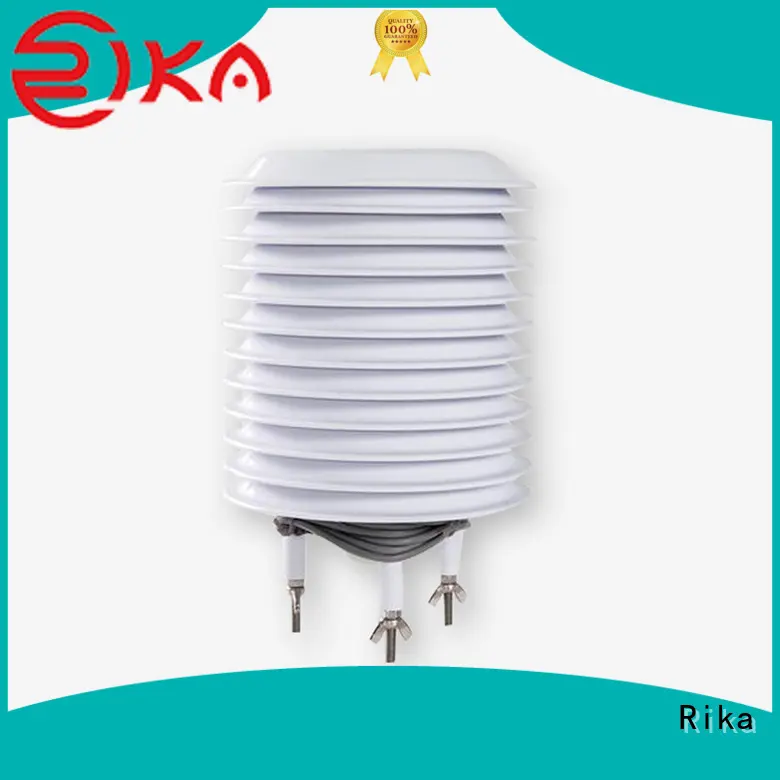

Rika best multi-plate radiation shield factory for temperature measurement

Rika best multi-plate radiation shield factory for temperature measurement

Model:
RK95-08
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika best multi-plate radiation shield factory for temperature measurement

PRODUCT DESCRIPTION

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.The product with breathing fan, make sure the screen inside and outside environment difference is minimal.

Rika best multi-plate radiation shield factory for temperature measurement-1

SPECIFICATIONS

Item

Specifications

Number of plates

7-20 plates optional,typ.:11,14,19

Color

White

Material

Anti-radiation engineering plastics & Stainless steel screw

Supply of fan

7-13.8VDC(typ.12VDC)

Rated power

1W

Operating temperature

-40℃-+75℃

Dimension

Inner diameter:62mm,Outer diameter:140mm/180mm
     Height:180mm(11 plates),220mm(14 plates),280mm(19 plates)

Optional accessories

Metal bracket(304SS),Embrace hoop screw(inner diameter:60mm,304SS)

BRACKET DIMENSION & WATERPROOF GLANDS SPECIFICATIONS

DIMENSION

Rika best multi-plate radiation shield factory for temperature measurement-8

Plates

Inner space(mm)

D1(mm)

H1(mm)

H2(mm)

7

ø62*50

140

89

approx.63

8

ø62*63

140

101

approx.63

9

ø62*75

140

114

approx.63

10

ø62*88

140

126

approx.63

11

ø62*100

140

139

approx.63

12

ø62*113

140

151

approx.63

13

ø62*125

140

164

approx.63

14

ø62*138

140

176

approx.63

15

ø62*150

140

189

approx.63

16

ø62*163

140

201

approx.63

17

ø62*175

140

214

approx.63

18

ø62*198

140

226

approx.63

19

ø62*200

140

239

approx.63

20

ø62*213

140

251

approx.63

ADAPTER WATERPROOF GLANDS

PG  Glands

Model

Cable/Sensor Diameter(mm)

PG7

3-6.5

PG9

4-8

PG11

5-10

PG13.5

6-12

PG16

10-13

PG19

12-15

PG21

13-18

PG25

16-21

PG29

18-25

PG36

22-32

Rika best multi-plate radiation shield factory for temperature measurement-9

PRODUCT DETAILS

Rika best multi-plate radiation shield factory for temperature measurement-10

Rika best multi-plate radiation shield factory for temperature measurement-11Material

Rika best multi-plate radiation shield factory for temperature measurement-12

Rika best multi-plate radiation shield factory for temperature measurement-13 Multiple output optional

Rika best multi-plate radiation shield factory for temperature measurement-14

Rika best multi-plate radiation shield factory for temperature measurement-15Product features

PRODUCT APPLICATION
