Rika great air quality monitoring equipment solution provider for dust monitoring

Rika great air quality monitoring equipment solution provider for dust monitoring

Model:
RK300-04
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika great air quality monitoring equipment solution provider for dust monitoring
Application Scope
Rika Sensors's environmental monitoring is widely used in many industries.Rika Sensors insists on providing customers with reasonable solutions according to their actual needs.
Product Details
With a focus on product quality, Rika Sensors pursues perfection in every detail.environmental sensor is in line with the stringent quality standards. The price is more favorable than other products in the industry and the cost performance is relatively high.

PRODUCT DESCRIPTION

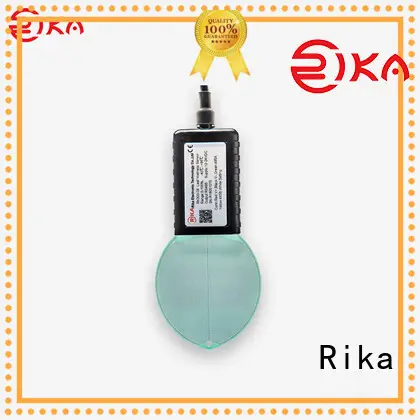

RK300-04 Leaf Wetness Sensor is an important tool for observing and studying leaf wetness, preventing pests and diseases, and spraying sprinkler control. The accurate measurement of the moisture content of the leaf surface can be used to monitor the trace moisture or ice crystal residue. The shape of the sensor is simulated by the blade, which can simulate the characteristics of the leaf surface, so that it can reflect the situation of the leaf surface more accurately. By measuring the variation of the dielectric constant of the upper surface of the blade, the mist, water vapor and ice can be measured.

Rika great air quality monitoring equipment solution provider for dust monitoring-1

SPECIFICATIONS

Item

Technical Specification

Range

Wetness: 0-100%
     Temperature: -40-+80℃

Accuracy

Wetness: ±3%(0-50%),±5%(>50%)
    Temperature: ±0.5℃

Repeatability

<±3%fs

Temperature Drift

≤0.2%FS/℃

Supply

5VDC,12-24VDC

Output

4-20mA,0-5V,0-2V,RS485

IP Rating

IP65

Operating Temperature

-40℃-+80℃

Dimension

65*13*145mm

Storage

-40-70℃@20%-90%RH

DIMENSION & MOUNTING

Rika great air quality monitoring equipment solution provider for dust monitoring-8

When installing the sensor to simulate the face of the grid part of the face, roughly the same angle with the surrounding surface and the ground. Such as foliar fertilization spray testing, can be installed in the plant height of different height, to ensure that the plant close to the ground effect of foliar fertilization.

PRODUCT DETAILS

Rika great air quality monitoring equipment solution provider for dust monitoring-9

Rika great air quality monitoring equipment solution provider for dust monitoring-10Product Principle

Rika great air quality monitoring equipment solution provider for dust monitoring-11

Rika great air quality monitoring equipment solution provider for dust monitoring-12 Multiple Output Optional

Rika great air quality monitoring equipment solution provider for dust monitoring-13

Rika great air quality monitoring equipment solution provider for dust monitoring-14RS485 Or RS232 Output

Rika great air quality monitoring equipment solution provider for dust monitoring-15

Rika great air quality monitoring equipment solution provider for dust monitoring-16 Product Features
