Rika great solar power supply system manufacturer for environmental monitoring system installation

Rika great solar power supply system manufacturer for environmental monitoring system installation

Model:
RK95-03
MOQ:
1 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika great solar power supply system manufacturer for environmental monitoring system installation
Enterprise Strength
  • Rika Sensors constantly improves after-sales service mechanism and takes the lead in establishing a professional after-sales service team in the industry. We focus on solving various problems and meeting different needs.

PRODUCT DESCRIPTION

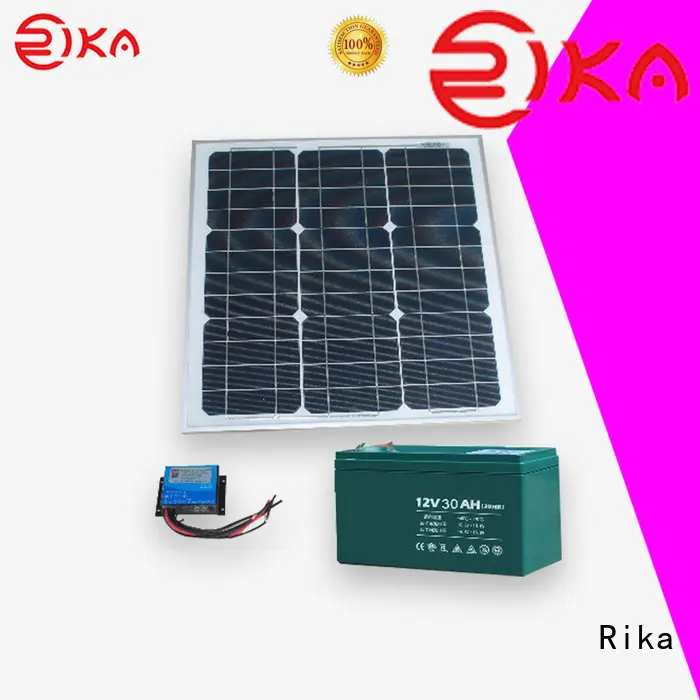

RK95-03 Solar power supply system consists of solar panel, solar controller, battery and the inverter (optional). Solar energy is a clean renewable new energy, has no moving parts, no noise, no pollution, high reliability. It can provide reliable power to sensors or weather stations, mainly used for wireless sensor, automatic test station, automatic weather stations and other power supply.

Rika great solar power supply system manufacturer for environmental monitoring system installation-1

SPECIFICATIONS & TYPICAL APPLICATIONS

Specifications:

Item

Technical parameters

Rated current

10A

Rated voltage(self-adaption)

12V

24V

Solar panel voltage

18V

36V

Start voltage

7V

14V

Shutoff voltage

3V

6V

Float charging voltage

13.8V

27.6V

Boost charging voltage

14.8V

29.6V

Equalizing charging voltage

14.4V

28.8V

Over voltage protection

16.5V

33.0V

Over voltage recovery

15.0V

30.0V

Under voltage protection

10.8V

21.6V

Under voltage recovery

12.8V

25.6V

Commercial power start voltage

≤10.8V

≤21.6V

Commercial power shutoff voltage

≥12.8V

≥25.6V

Circuit protection

Overload, short protection

No-load current

≤12mA@12V

Ingress Protection

IP67

Working temperature

-40℃~+70℃

Dimension

81.0*62.0*20.0mm

Controller cannot be directly connected to the AC110V/AC220V,the AC must be converted to DC(12V/24V),then connect to the controller.

Typical applications:

Application scope

Single wireless(WIFI,GPRS,Lora, etc.) sensor

RK160-02,RK200-05 or RK400-03

RK900-01

Solar panel

5Wp@18V

10Wp@18V

30Wp@18V

240*230*17mm

295*295*20mm

520*420*25mm

Controller

10A@12V/24V

10A@12V/24V

10A@12V/24V

81*62*20mm

81*62*20mm

81*62*20mm

Lead-acid battery

7AH@12V

12AH@12V

20AH@12V

151*65*94mm

151*98*95mm

181*76*165mm

Protection box

Customized

Customized

Customized

Cable

RVV2*0.5

RVV2*0.75

RVV2*0.75

Note:

1. Suggest user to ready battery, because the battery is not convenient to transport;

2. The size of the protective box according to the project need to customize;

3. Cable length can be customized.

CONTROLLER  DIMENSION & CONNECTION & WORK MODE

Rika great solar power supply system manufacturer for environmental monitoring system installation-8

The controller has 4 work modes:

1. Light & time control: Mode=1-15: When there is no sunlight start the load, time control shutoff(1-15 hours);

2. Light control Mode=16: When there is no sunlight start the load,when the light appear, shut down load;

3. Normally open Mode=17: Keep the output state 24 hours a day;

4. Manual mode Mode=18:Manual mode.

5. Press the button for 5 s, digital tube start flashing, product into regulating mode, loosen the button, each time you press the button, the number will increase, and the set up, about 5 s digital tube stop flashing, exit mode Settings.
