Rika perfect radiation sensor industry for shortwave radiation measurement

Rika perfect radiation sensor industry for shortwave radiation measurement

Model:
RK200-04
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika perfect radiation sensor industry for shortwave radiation measurement
Enterprise Strength
  • With the highest sincerity and the best attitude, Rika Sensors strives to provide consumers with satisfactory services in line with their real needs.

PRODUCT DESCRIPTION

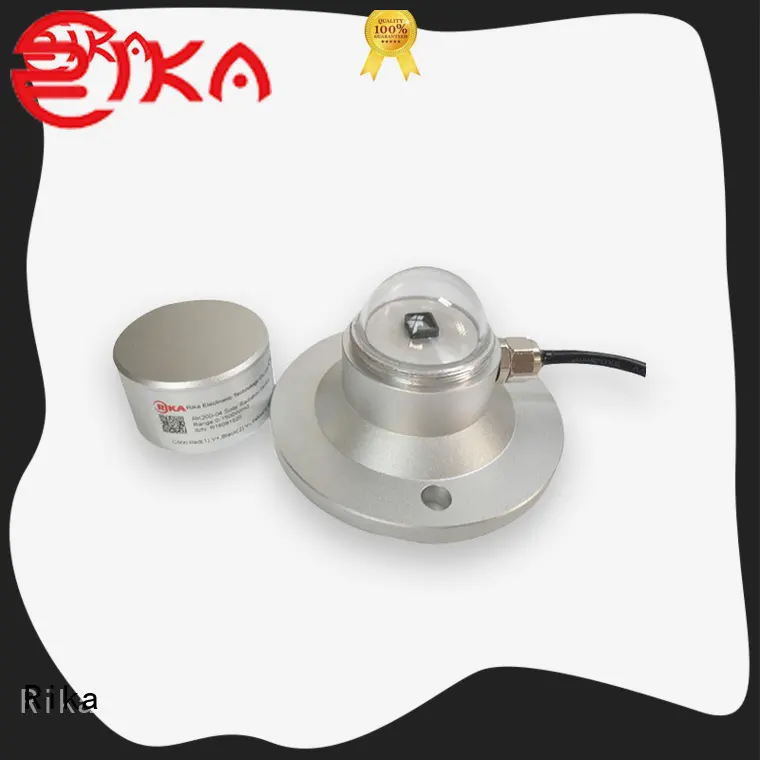

RK200-04 Solar Radiation Sensor is designed on basis of silicon-cell principle. It is mainly used for measuring solar radiation within 300-1100nm wavelength. If the sensing face is downwards, it can test the reflected radiation and solar radiation on the incident to the inclined plane. If shad is added, it can test the scattered radiation. It is widely used to monitor the solar radiation in meteorology, solar energy, agriculture, construction materials aging and atmospheric pollution and etc..

Rika perfect radiation sensor industry for shortwave radiation measurement-1

SPECIFICATIONS

Item

SPECIFICATIONS

Spectral range

300~1100nm

Supply

5V,12-24VDC

Range

0-1500W/m2

Resolution

1W/m2

Output

0-5V,4-20mA,RS485

Response time

≤5s

Cosine correction

≤±10%(Solar elevation angle=10°)

Non-linear

≤±3%

Temperature effect

±0.08%/℃

Stability

≤±2%/year

Operating Temperature

-40℃-+80℃

Ingress Protection

IP65

Weight(unpacked)

420g

Shell material

Aluminum alloy

Storage Condition

10℃-60℃@20%-90%RH

* The product can be used as a sunshine time sensor Sunshine hours is the sum of time periods that the sun direct irradiance intensity to reach or exceed 120W/m2 time , hour as a unit, a decimal. Sunshine hours is also known as actual irradiance time.

DIMENSION & MOUNTING & SPECTRAL RESPONSE

PRODUCT DETAILS

Rika perfect radiation sensor industry for shortwave radiation measurement-10

Rika perfect radiation sensor industry for shortwave radiation measurement-11Product Principle

Rika perfect radiation sensor industry for shortwave radiation measurement-12

Rika perfect radiation sensor industry for shortwave radiation measurement-13 Installation

Rika perfect radiation sensor industry for shortwave radiation measurement-14

Rika perfect radiation sensor industry for shortwave radiation measurement-15Product Functions

Rika perfect radiation sensor industry for shortwave radiation measurement-16

Rika perfect radiation sensor industry for shortwave radiation measurement-17 Product Material

PRODUCT APPLICATION
