 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika professional large rain gauge factory 1
Rika professional large rain gauge factory 1

Rika professional large rain gauge factory

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2 PCS
Model:
RK400-01
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry
Product Details
Rika Sensors strives excellent quality by attaching great importance to details in the production of environmental sensor.Rika Sensors insists on the use of high-quality materials and advanced technology to manufacture environmental sensor. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.
  • Rika professional large rain gauge factory 2
Application Scope
The environmental sensor produced by Rika Sensors is widely used in the Manufacturing Environmental Protection Waste Treatment Environmental Products industry.Rika Sensors could customize comprehensive and efficient solutions according to customers' different needs.
  • Rika professional large rain gauge factory 3

PRODUCT DESCRIPTION

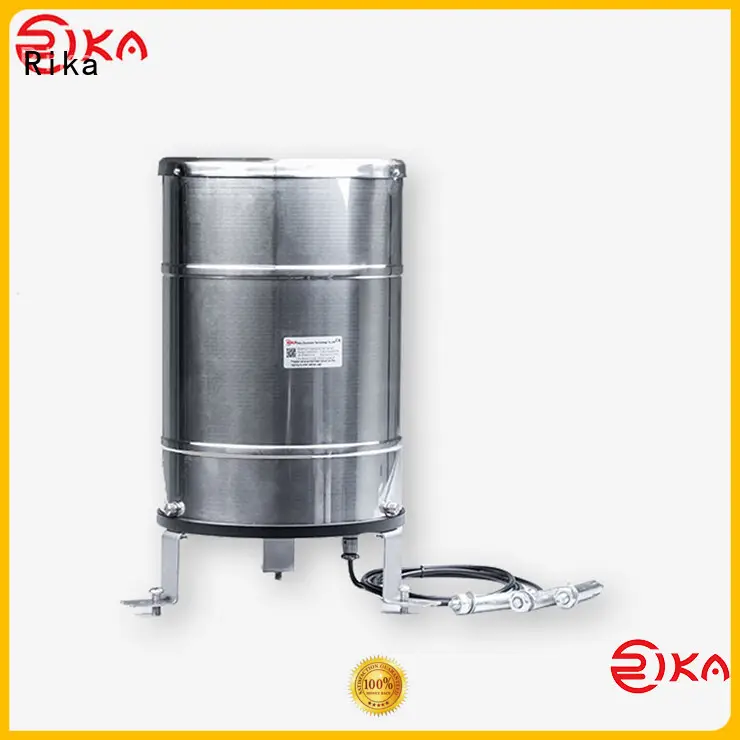

The RK400-01 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.

Rika professional large rain gauge factory 4

SPECIFICATIONS

Item

Specification

Rainfall collector

Diameter :φ200mm, height: 350mm

Measured rainfall intensity

Max: 4mm/min

Allow rainfall intensity

Max: 10mm/min

Resolution

0.1mm, 0.2mm

Accuracy(2mm/min)

±4%

Maximum load voltage

30VDC(pulse output)

Maximum load current

20mA(pulse output)

Output

Reed switch pulses,RS485(12-24VDC supply)

Operating temperature(no freeze)

-20-+80℃

Main material

Collector:304SS,tipping bucket:ABS

Tipping bucket

Single

Heating(optional)

Heating power: approx.350W
     Heating voltage:220VAC

Collector filter

Removable filter (prevent leaves and sundries)optional

Weight(unpacked)

3.5kg

WORKING PROCESS & DIMENSION

PRODUCT DETAILS

Rika professional large rain gauge factory 13

Rika professional large rain gauge factory 14Product Principle & Material

Rika professional large rain gauge factory 15

Rika professional large rain gauge factory 16 Product Feature

Rika professional large rain gauge factory 17

Rika professional large rain gauge factory 18Product Feature

PRODUCT APPLICATION


Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
