 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika professional soil sensor supplier for detecting soil conditions 1
Rika professional soil sensor supplier for detecting soil conditions 1

Rika professional soil sensor supplier for detecting soil conditions

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2 PCS
Model:
RK520-02
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry

PRODUCT DESCRIPTION

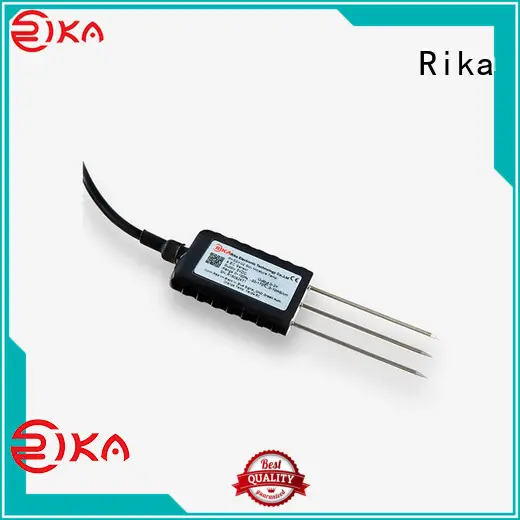

RK520-02 Soil Moisture, Temperature & soil EC Sensor is integrated the moisture, temperature & EC measurement.The stainless steel probe is inserted into soil surface or soil profile to test quickly. The product with temperature compensation to ensure the accuracy of measurement.The probe can be permanently embedded underground and be connected to a data logger for unlimited testing.

Rika professional soil sensor supplier for detecting soil conditions 2

SPECIFICATIONS

Item

Technical Specification

Moisture

Temperature

EC

Range

0-100%(m3/m3)

-30℃-+70℃

0-10mS/cm

Accuracy

±2%(0-50%)

±3%(51-100%)

±0.5℃

±3%FS

Output Signal

RS485,0-2V

Response Time

<1s

Supply

5VDC, 12-24VDC

Effective measurement area

With the center of the probe diameter is 70mm, high 70mm cylinder

Housing

ABS

Dimensions

45*15*145mm( probe:3* Ø3*70mm)

Operating Temperature

-40℃-+80℃

Ingress Protection

IP68

Storage

10-60℃@20%-90%RH

Probe material

316L  stainless steel

WORKING PROCESS & DIMENSION

PRODUCT DETAILS

PRODUCT APPLICATION



Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
