Rika professional solar pyranometer supplier for hydrological weather applications

Rika professional solar pyranometer supplier for hydrological weather applications

Model:
RK200-02
MOQ:
2PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika professional solar pyranometer supplier for hydrological weather applications
Enterprise Strength
  • Rika Sensors runs a comprehensive pre-sales and after-sales service system. We can effectively protect consumers' rights and interests and provide quality products and services.

PRODUCT DESCRIPTION

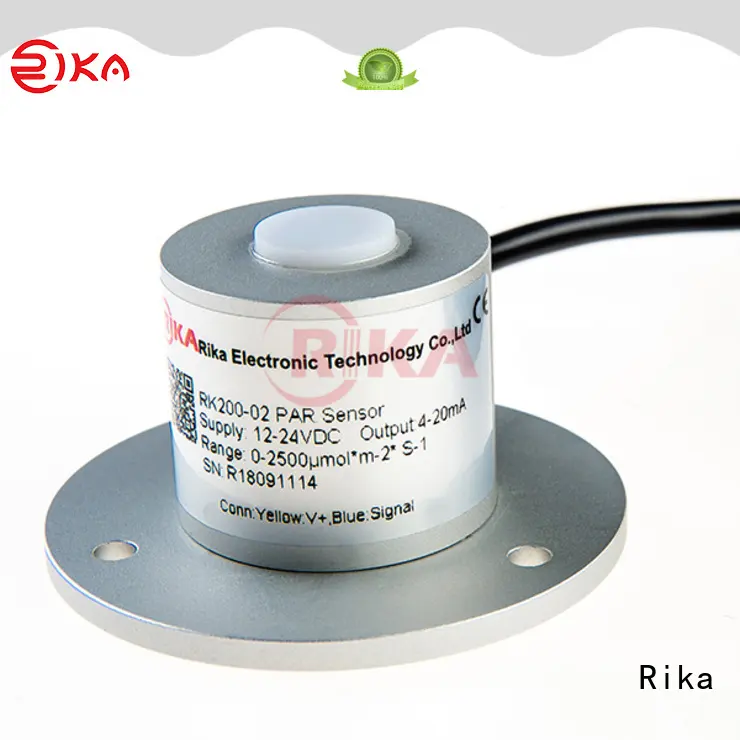

The RK200-02 PAR Sensor is mainly used for measuring solar radiation within 400~700nm wavelength. It is easy installation and can work continuously in all weathers. When there is sunlight, voltage output proportional to incident light intensity will be generated by the silicon-photo detector in the sensor. Its sensitivity is proportional to the cosine of incident light direct angle. Each product is with one sensitivity coefficient respectively. It can directly output radiation value in unit of μ*mol/m2*s.

    Rika professional solar pyranometer supplier for hydrological weather applications-1

    SPECIFICATIONS

    Item

    Specification

    Spectral range

    0-2500μ*mol/m2*s

    350-1100nm

    0-2000W/m2400-700nm

    Supply

    5V,12-24VDC

    Accuracy
    ±5% rdg

    Range

    0-2500μ*mol/m2,0-2000W/m2

    Output

    0-2000mV

    4-20mA(2-wires)

    RS485

    Sensitivity

    0-2500μ*mol/m2*s

    0.8mV/μmol*m-2* S-1

    6.4μA/μ*mol*m2*s/
    0-2000W/m21mV/W/m28uA/W/m2/

    Response time

    <1s (99%)

    Temperature effect

    <0.05%/℃

    Cosine correction

    <10% (until 80°)

    Non-linearity

    <±2%

    Operating temperature

    -40℃-+80℃°

    Shell material

    Aluminum alloy

    Storage Condition

    10℃-60℃@20%-90%RH


    OUTPUT CHARACTERISTICS

     0-2000mV

    Range:0-2000W  PAR values(W)= Voltage output value(μV)/1000

    Range:0-2500μ*mol/m2*s  PAR values(μ*mol/m2*s)= Voltage output value(μV)/800

     4-20 mA

    Range:0-2000W  PAR values(W)=(I(μA)-4000μA)/8 (Where I is output current value,unit:μA )

    Range:0-2500μ*mol/m2*s  PAR values(μ*mol/m2*s)= (I(μA)-4000μA)/6.4(Where I is output current value,unit:μA )

     RS485

    MODBUS-RTU

    DIMENSION

    Rika professional solar pyranometer supplier for hydrological weather applications-8

    In order to ensure measurement accuracy, please keep the horizontal installation.


    PRODUCT DETAILS

    Rika professional solar pyranometer supplier for hydrological weather applications-9

    Rika professional solar pyranometer supplier for hydrological weather applications-10Product Principle

    Rika professional solar pyranometer supplier for hydrological weather applications-11

    Rika professional solar pyranometer supplier for hydrological weather applications-12 Product Range

    Rika professional solar pyranometer supplier for hydrological weather applications-13

    Rika professional solar pyranometer supplier for hydrological weather applications-14Product Output Optional

    Rika professional solar pyranometer supplier for hydrological weather applications-15

    Rika professional solar pyranometer supplier for hydrological weather applications-16Product Installation

    PRODUCT APPLICATION
