Rika professional water monitoring sensors manufacturer for conductivity monitoring

Rika professional water monitoring sensors manufacturer for conductivity monitoring

Model:
RK500-12
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika professional water monitoring sensors manufacturer for conductivity monitoring
Product Details
Want to know more product information? We will provide you with detailed pictures and detailed content of environmental sensor in the following section for your reference.Rika Sensors carefully selects quality raw materials. Production cost and product quality will be strictly controlled. This enables us to produce environmental sensor which is more competitive than other products in the industry. It has advantages in internal performance, price, and quality.
  • Rika professional water monitoring sensors manufacturer for conductivity monitoring-Rika Sensors-img
Product Comparison
Closely following the market trend, Rika Sensors uses advanced production equipment and manufacturing technology to produce weather sensors. The product receives favors from the majority of customers for the high quality and favorable price.Compared with products in the same category, weather sensors has the following advantages.
  • Rika professional water monitoring sensors manufacturer for conductivity monitoring-Rika Sensors-img
    v s
    news-Rika Sensors-img

PRODUCT DESCRIPTION

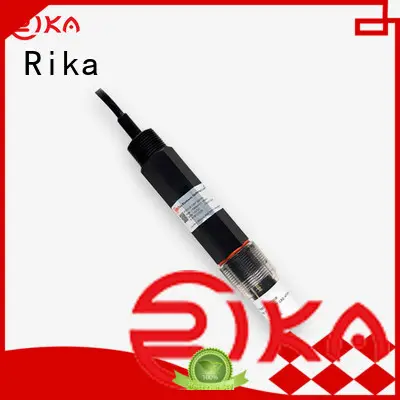

RK500-12 ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning extending the life time.

Rika professional water monitoring sensors manufacturer for conductivity monitoring-1

SPECIFICATIONS

Item

Technical Specification

Measurement Principle

Electrochemistry

Range

0-14PH

Supply

7-30VDC(power consumption<0.2W)

Accuracy

±0.05PH

Resolution

0.01PH

Temperature Compensation

Temperature compensation is optional

Response time

<8s(flowing liquid), <14s(stationary liquid)

Stability

≤0.01PH/24h

Output Signal

4-20mA & RS485 at the same time

Calibration Cycle

Every 6 month(General water )
     Every 3 month or shorter(Seriously polluted water )

Operating Environment

0-+80℃(<0.6MPa), high pressure is customizable

Cable length

5m(default),customizable

Ingress Protection

IP68

Storage

10-60℃@20%-90%RH

PH SCALE

PH value

Description

PH value

Description

<4.5

Strongly acidity

7.5-8.5

Faintly alkalinity

4.5-5.5

Acidity

8.5-9.5

Alkalinity

5.5-6.5

Faintly acidity

>9.5

Strongly alkalinity

6.5-7.5

Neutral



DIMENSION

ELECTRODE MAINTENANCE & INSTALLATION AND FIXED

PH electrode is not used at ordinary times and can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water and deionize the water or tap water with minimal plasma content.If the PH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l Hcl or NaOH solution for a few minutes and then washed with distilled water. If the PH electrode is contaminated with organic substances, it can be cleaned with alcohol or acetone and then cleaned with distilled water.(note: the protective cap before the electrode should be removed when using);

Clean the electrode with tap water every 3 months or 6 months according to the working environment.

Mounting bracket(length=1m) is optional

PRODUCT DETAILS

Rika professional water monitoring sensors manufacturer for conductivity monitoring-16

Rika professional water monitoring sensors manufacturer for conductivity monitoring-17Product Principle

Rika professional water monitoring sensors manufacturer for conductivity monitoring-18

Rika professional water monitoring sensors manufacturer for conductivity monitoring-19 Water-Proof
