Rika professional weather station radiation shield manufacturer for relative humidity measurement

Rika professional weather station radiation shield manufacturer for relative humidity measurement

Model:
RK95-01
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika professional weather station radiation shield manufacturer for relative humidity measurement
Product Comparison
environmental monitoring is in line with the stringent quality standards. The price is more favorable than other products in the industry and the cost performance is relatively high.Compared with other products in the industry, environmental monitoring has more obvious advantages which are reflected in the following aspects.
  • v s
Product Details
In the production, Rika Sensors believes that detail determines result and quality creates brand. This is the reason that we strive for excellence in every product detail.Closely following the market trend, Rika Sensors uses advanced production equipment and manufacturing technology to produce weather sensors. The product receives favors from the majority of customers for the high quality and favorable price.

PRODUCT DESCRIPTION

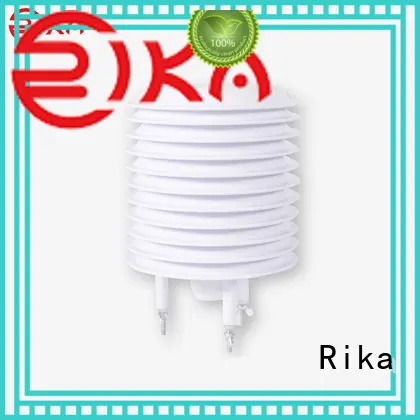

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.

Rika professional weather station radiation shield manufacturer for relative humidity measurement-1

SPECIFICATIONS

Item

Specifications

Number of plates

4 -20 plates optional,typ.:11,14,19

Color

White

Material

Anti-radiation ABS engineering plastics & Stainless steel screw

Operating temperature

-40℃-+75℃

Dimension

Inner diameter:62mm,Outer diameter:140mm/180mm
     Height:180mm(11 plates),220mm(14 plates),280mm(19 plates)

Optional accessories

Metal bracket(304SS),Embrace hoop screw(inner diameter:60mm,304SS)

BRACKET DIMENSION & WATERPROOF GLANDS SPECIFICATIONS

DIMENSION

Rika professional weather station radiation shield manufacturer for relative humidity measurement-8

Plates

Inner space(mm)

D1(mm)

H1(mm)

H2(mm)

4

ø62*45

140

51

approx.55

5

ø62*57

140

64

approx.55

6

ø62*70

140

76

approx.55

7

ø62*82

140

89

approx.55

8

ø62*95

140

101

approx.55

9

ø62*107

140

114

approx.55

10

ø62*120

140

126

approx.55

11

ø62*132

140

139

approx.55

12

ø62*145

140

151

approx.55

13

ø62*157

140

164

approx.55

14

ø62*170

140

176

approx.55

15

ø62*182

140

189

approx.55

16

ø62*195

140

201

approx.55

17

ø62*207

140

214

approx.55

18

ø62*220

140

226

approx.55

19

ø62*232

140

239

approx.55

20

ø62*245

140

251

approx.55

ADAPTER WATERPROOF GLANDS

PG  Glands

Model

Cable/Sensor Diameter(mm)

PG7

3-6.5

PG9

4-8

PG11

5-10

PG13.5

6-12

PG16

10-13

PG19

12-15

PG21

13-18

PG25

16-21

PG29

18-25

PG36

22-32

Rika professional weather station radiation shield manufacturer for relative humidity measurement-9

PRODUCT DETAILS

Rika professional weather station radiation shield manufacturer for relative humidity measurement-10

Rika professional weather station radiation shield manufacturer for relative humidity measurement-11Enhanced UV resistance plastic

Rika professional weather station radiation shield manufacturer for relative humidity measurement-12

Rika professional weather station radiation shield manufacturer for relative humidity measurement-13 Plates quantity

Rika professional weather station radiation shield manufacturer for relative humidity measurement-14

Rika professional weather station radiation shield manufacturer for relative humidity measurement-15Support & Mounting

Rika professional weather station radiation shield manufacturer for relative humidity measurement-16

Rika professional weather station radiation shield manufacturer for relative humidity measurement-17Connectors for sensors

PRODUCT APPLICATION
