 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika radiation sensor solution provider for shortwave radiation measurement 1
Rika radiation sensor solution provider for shortwave radiation measurement 1

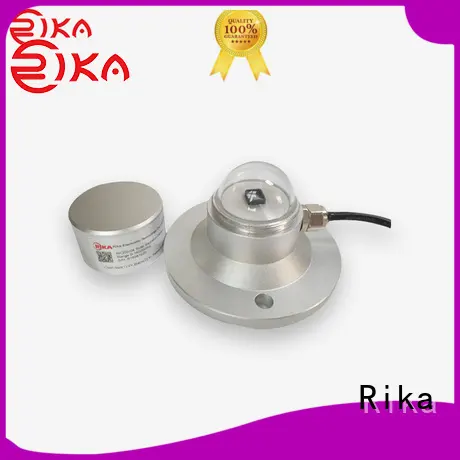

Rika radiation sensor solution provider for shortwave radiation measurement

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2 PCS
Model:
RK200-04
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry

PRODUCT DESCRIPTION

RK200-04 Solar Radiation Sensor is designed on basis of silicon-cell principle. It is mainly used for measuring solar radiation within 300-1100nm wavelength. If the sensing face is downwards, it can test the reflected radiation and solar radiation on the incident to the inclined plane. If shad is added, it can test the scattered radiation. It is widely used to monitor the solar radiation in meteorology, solar energy, agriculture, construction materials aging and atmospheric pollution and etc..

Rika radiation sensor solution provider for shortwave radiation measurement 2

SPECIFICATIONS

Item

SPECIFICATIONS

Spectral range

300~1100nm

Supply

5V,12-24VDC

Range

0-1500W/m2

Resolution

1W/m2

Output

0-5V,4-20mA,RS485

Response time

≤5s

Cosine correction

≤±10%(Solar elevation angle=10°)

Non-linear

≤±3%

Temperature effect

±0.08%/℃

Stability

≤±2%/year

Operating Temperature

-40℃-+80℃

Ingress Protection

IP65

Weight(unpacked)

420g

Shell material

Aluminum alloy

Storage Condition

10℃-60℃@20%-90%RH

* The product can be used as a sunshine time sensor Sunshine hours is the sum of time periods that the sun direct irradiance intensity to reach or exceed 120W/m2 time , hour as a unit, a decimal. Sunshine hours is also known as actual irradiance time.

DIMENSION & MOUNTING & SPECTRAL RESPONSE

PRODUCT DETAILS

Rika radiation sensor solution provider for shortwave radiation measurement 11

Rika radiation sensor solution provider for shortwave radiation measurement 12Product Principle

Rika radiation sensor solution provider for shortwave radiation measurement 13

Rika radiation sensor solution provider for shortwave radiation measurement 14 Installation

Rika radiation sensor solution provider for shortwave radiation measurement 15

Rika radiation sensor solution provider for shortwave radiation measurement 16Product Functions

Rika radiation sensor solution provider for shortwave radiation measurement 17

Rika radiation sensor solution provider for shortwave radiation measurement 18 Product Material

PRODUCT APPLICATION



Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
