Rika Sensors water level sensor for water tank industry for industrial applications
PRODUCT DESCRIPTION

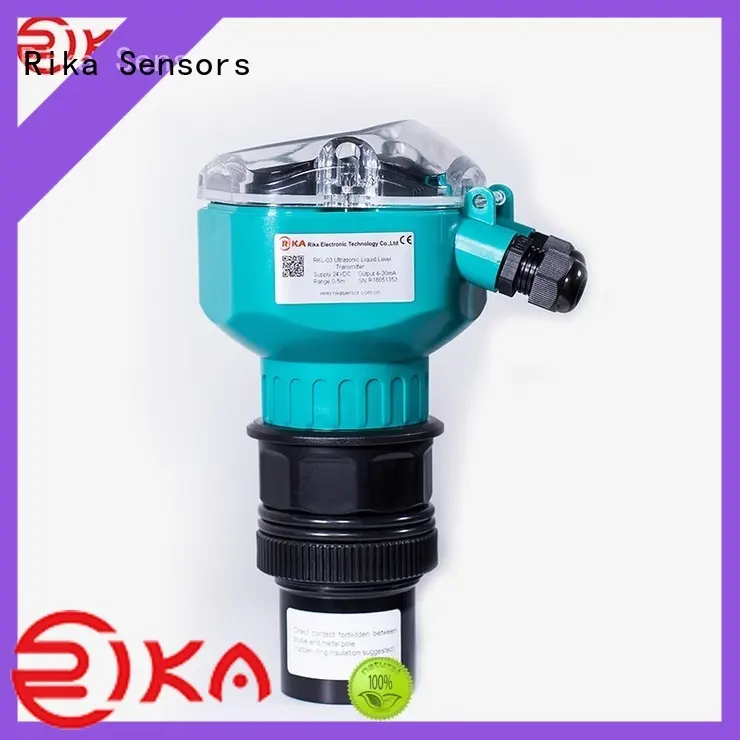

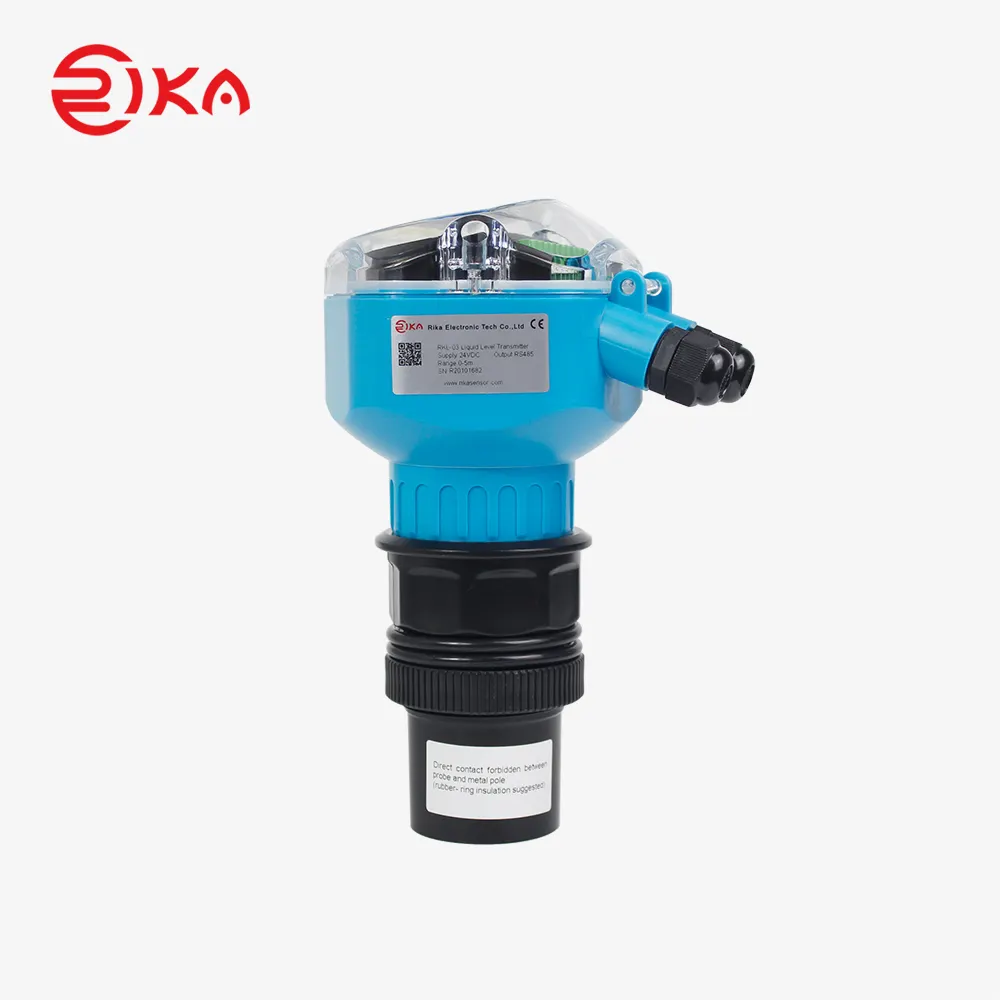

RKL-03 Ultrasonic Level Transmitter is a non-contact, high-reliability, and cost-effective liquid level measurement device, designed for easy installation and low maintenance.Operating without direct contact with the medium, it is suitable for most liquid level measurement applications. The device calculates the distance from the transducer to the liquid surface using the Time-of-Flight (TOF) principle--where the interval between transmitted and received ultrasonic pulses is proportional to the measured distance.
This transmitter is compatible with the Rk6oo Data Logger and can also be integrated with universal data logging systems.
SPECIFICATIONS
Item | Technical Specification |
Range | 5m,10m,15m,20m,30m |
Output | 4-20mA( 2wires),4-20mA(4wires),RS485(4wires) |
Supply voltage | 24VDC,220VAC, 12VDC(RS485 output only) |
Accuracy | 0.5%-1% |
Resolution | ±3mm or 0.1%FS(take the maximum value) |

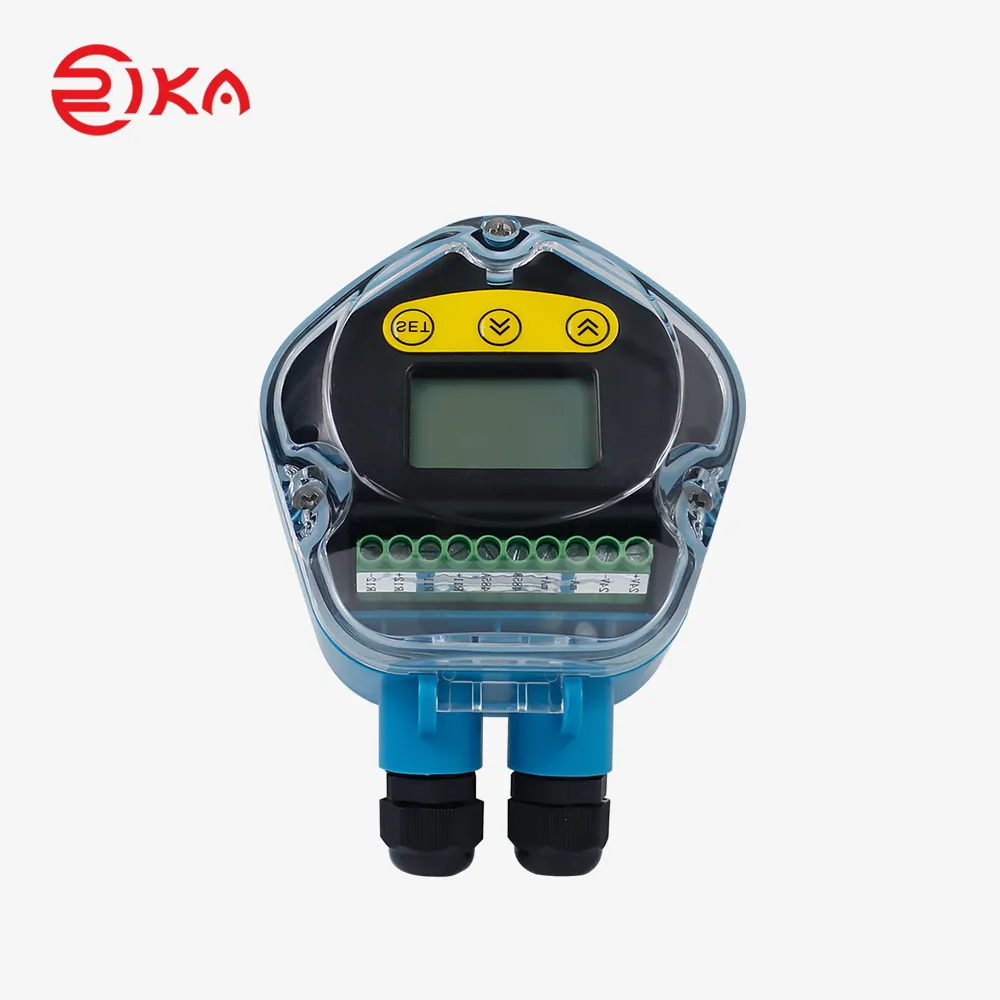

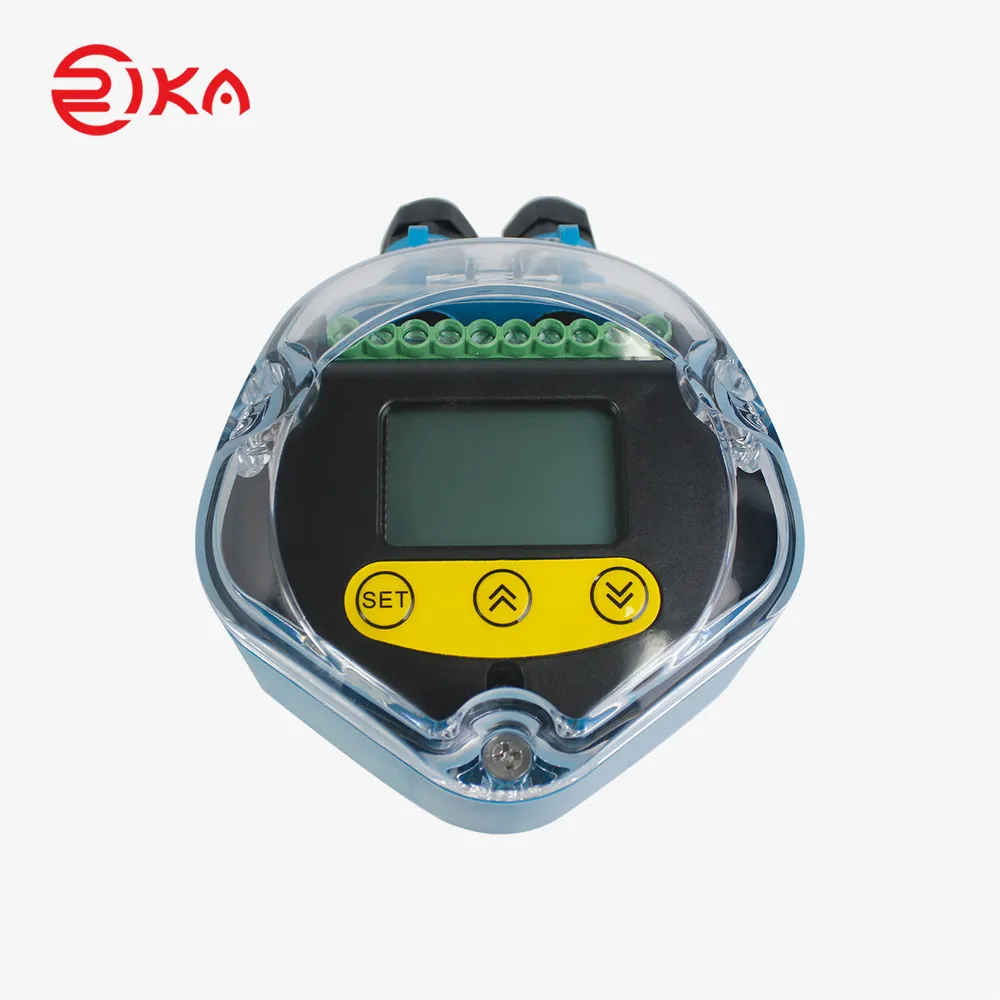

Display | LCD with English |
Control | Relay AC250V/8A or 30V/5A |
Power consumption | 4-wire,without relay:1.9W |
4-wire,with relay:3.6W | |
2-wire,without relay:0.48W | |
Ingress protection | Probe:IP68,Display unit:IP66 |
Operating | Probe:-20℃~ +80℃,Display unit:-20℃~ +60℃ |
Housing material | Anti-aging corrosion resistant engineering plastics, Cast aluminum shell (explosion-proof) |
Process connection | Range=0-10m:G2 |
Range=0-20m: M78*2 | |
Range>20m:M108*2 | |
Menu setting | Reference zero point, maximum of measuring range, minimum of measuring range,alarm point, Return difference setting, working mode, response time, parameter correction,communication setting etc. |
Storage Condition | 10℃-50℃@20%-90%RH |
PRODUCT DETAILS

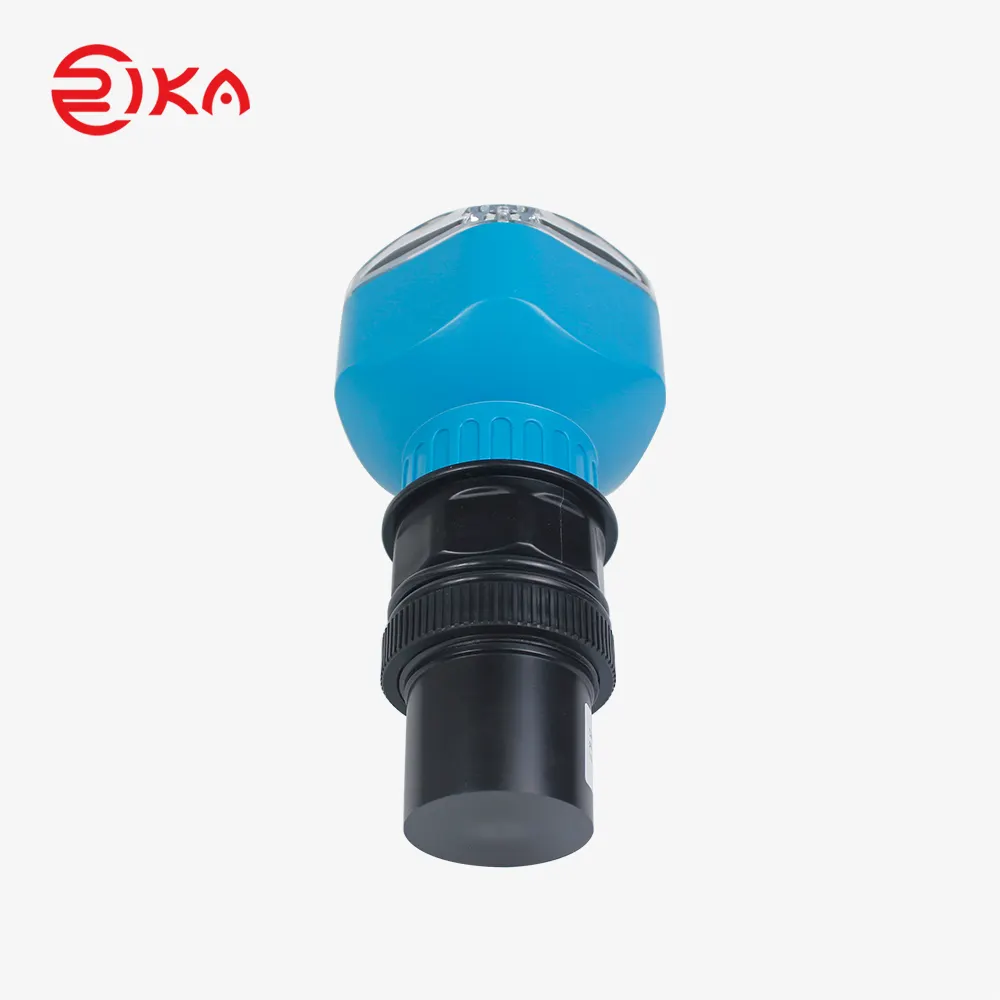

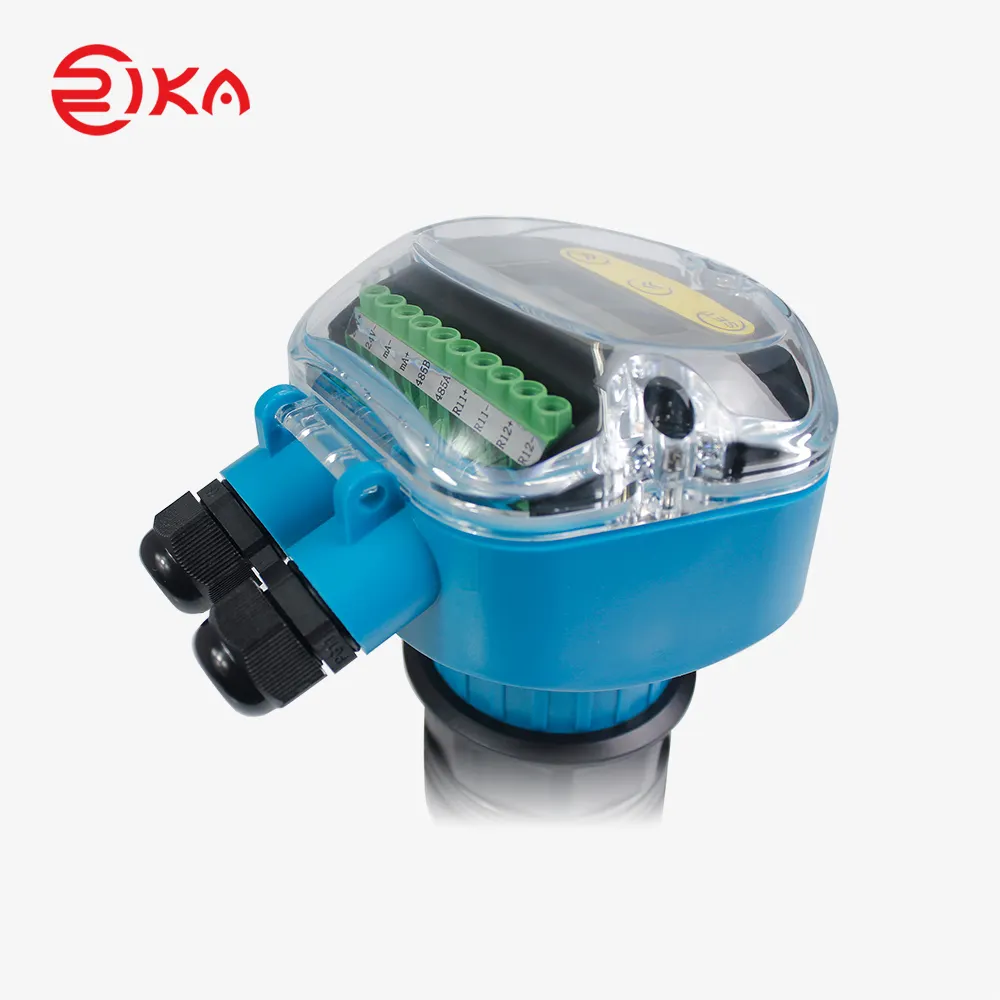

The ultrasonic liquid level sensor is high precision and easy to be installed.
MOUNTING

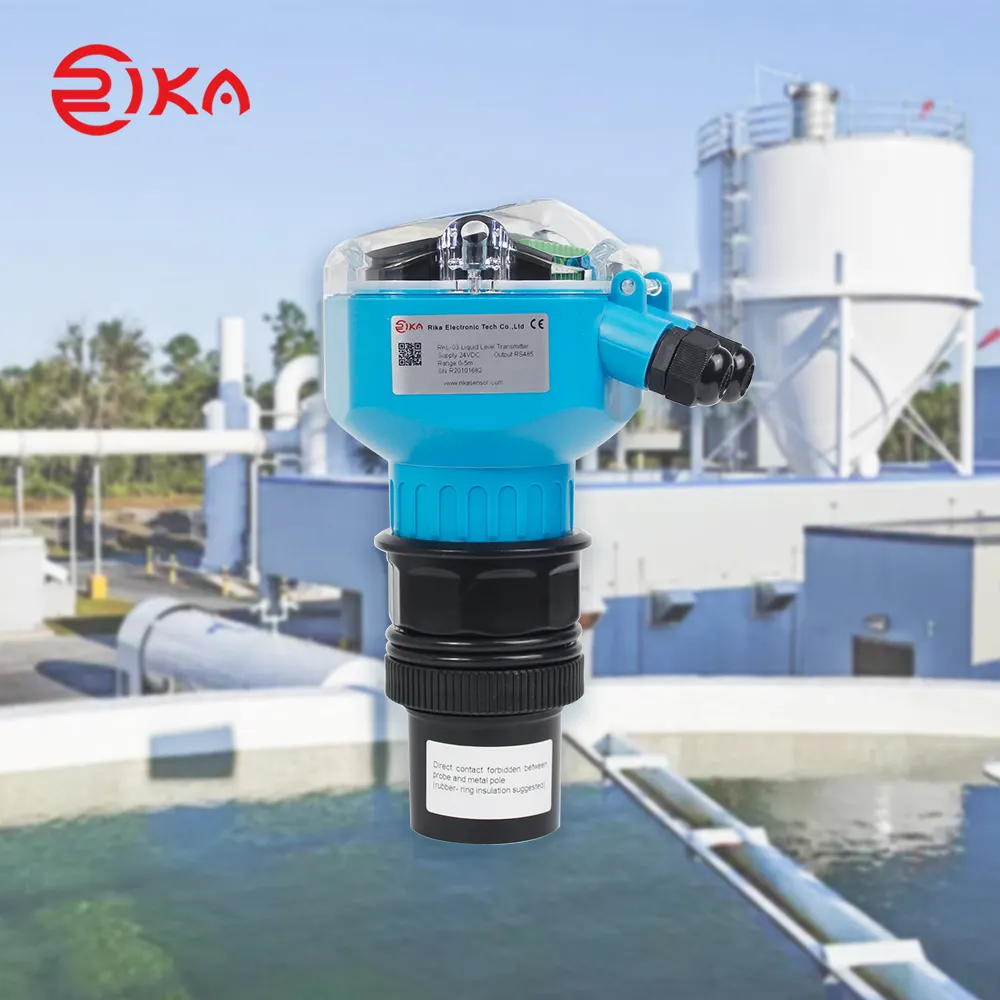

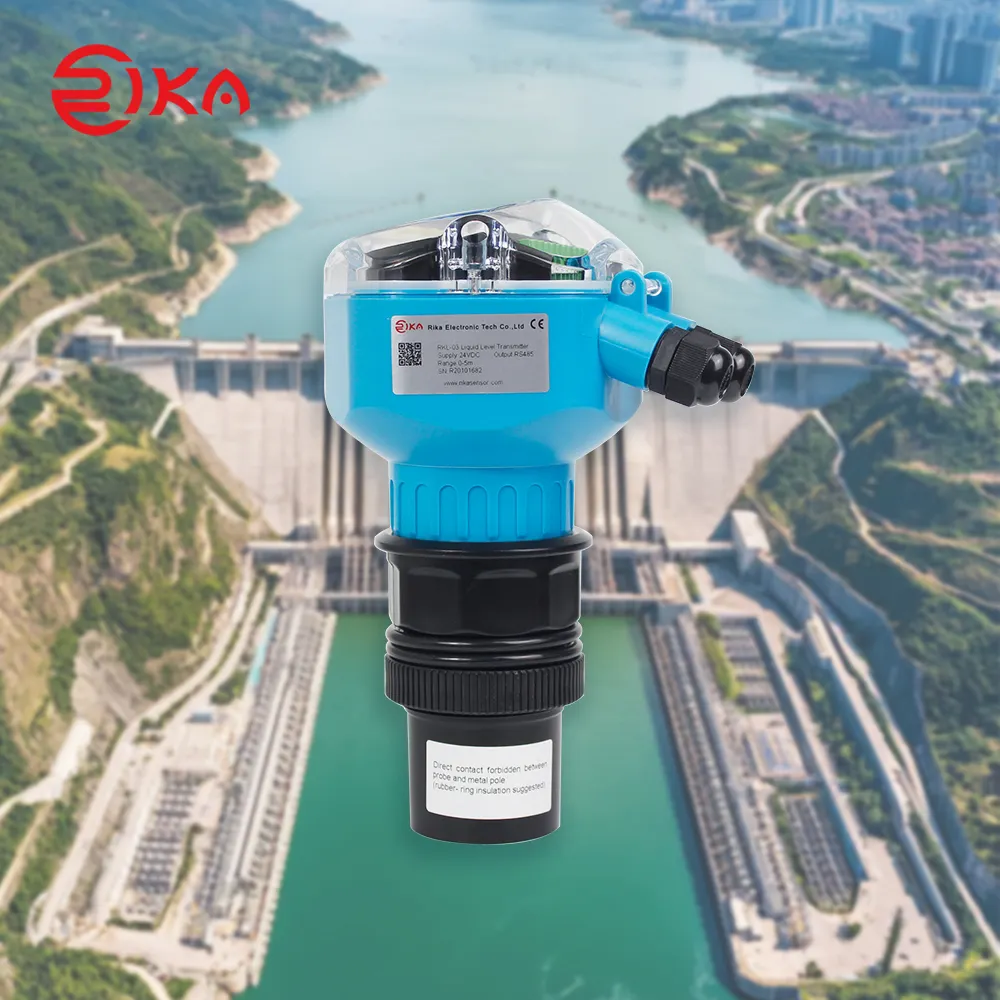

PRODUCT APPLICATION
