Rika top rated ultrasonic wind industry for industrial applications

Rika top rated ultrasonic wind industry for industrial applications

Model:
RK100-02
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika top rated ultrasonic wind industry for industrial applications
Application Scope
Rika Sensors's environmental sensor can play an important role in various fields.Rika Sensors is rich in industrial experience and is sensitive about customers' needs. We can provide comprehensive and one-stop solutions based on customers' actual situations.

PRODUCT DESCRIPTION

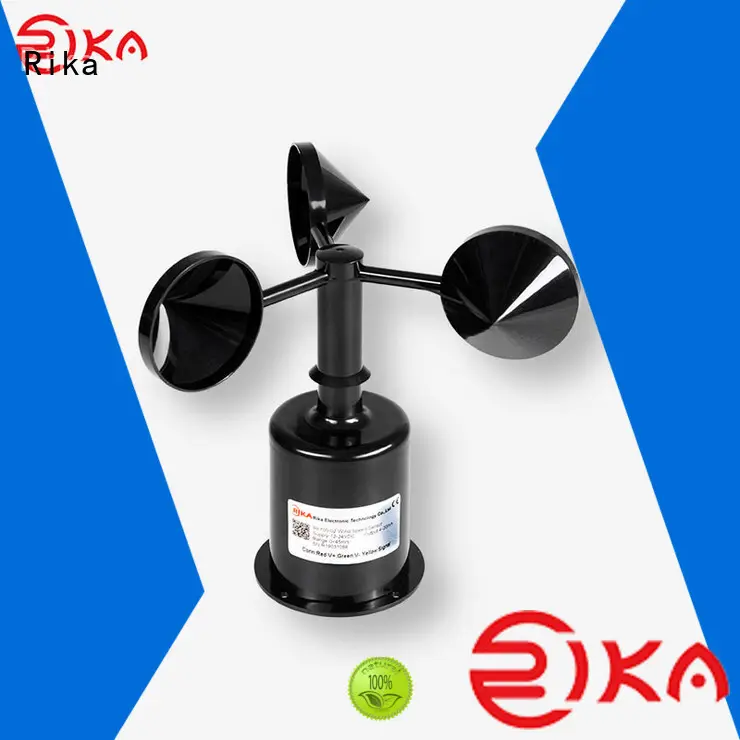

The RK100-02 Wind Speed Sensor uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups are made of carbon fiber material, with high intensity and low starting threshold. The signal processing units are built in the housing shell. Rika RK100-02 3 cup anemometer can be widely used in meteorology, marine, environmental monitoring, airport, harbor, laboratory, industrial and agricultural areas.

Rika top rated ultrasonic wind industry for industrial applications-1

SPECIFICATIONS

Rika RK100-02 wind speed sensor features

Output

Pulses

4-20mA

0-5V

RS485

Supply voltage

5V, 12V-24V

5V, 12V-24V

5V, 12V-24V

5V, 12V-24V

Load capacity

>1kΩ

<500Ω(typ 250Ω)

>1kΩ


Range

0-45m/s

0-45m/s

0-45m/s

0-45m/s

Accuracy

±(0.3+0.03V)m/s; (V is the current wind speed)

Starting threshold

<0.5m/s

Limit wind speed

50m/s

Ingress protection

IP65

Operating temperature

-40℃ ~ +50℃

Cable grade

Nominal voltage: 300V, Temperature grade: 80℃

Weight(unpacked)

170g

Dimension

Cup rotor: 179mm, Height: 160mm

Main material

Carbon fiber

Storage condition

10℃-50℃@20%-90%RH

DIMENSION & MOUNTING

Rika RK100-02 3-cup anemometer size

PRODUCT FUNCTION

Rika top rated ultrasonic wind industry for industrial applications-11
Rika top rated ultrasonic wind industry for industrial applications-12
Rika top rated ultrasonic wind industry for industrial applications-13

PRODUCT APPLICATION
