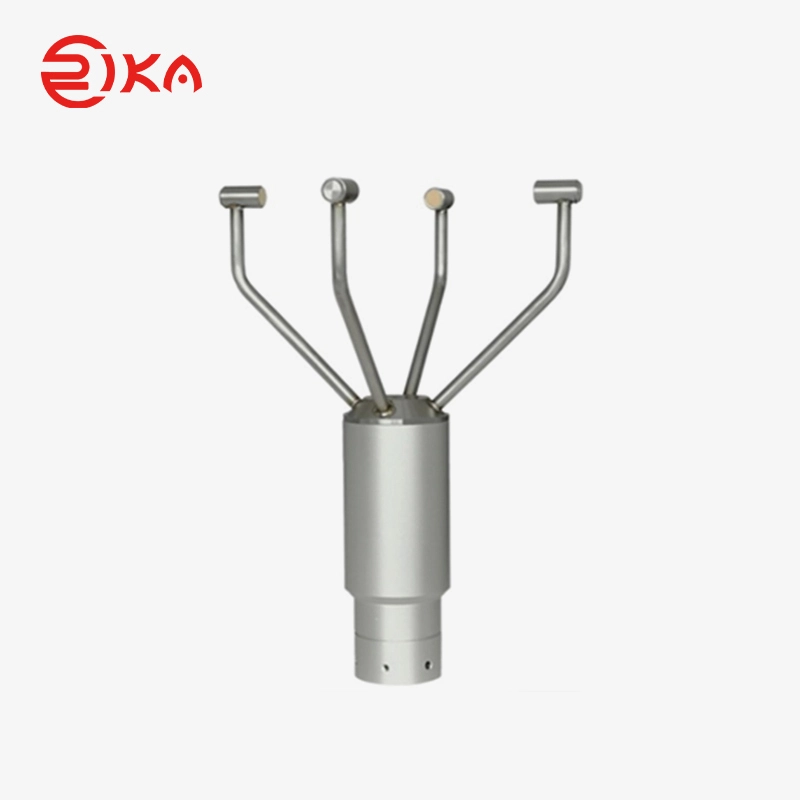

RK120-08 Ultrasonic Wind Speed And Direction Sensor

Name: RK120-08 Ultrasonic Wind Speed And Direction Sensor
Brand: Rika Sensor

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

1PCS

Model:

RK120-08

Lead Time:

9-14 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

download

RK120-08 Ultrasonic wind speed&direction sensor sp

Write a Review

PDF Download

PRODUCT DESCRIPTION

RK120-08 Ultrasonic Wind Speed &Direction Sensor operates on the work principle of ultrasonic transit-ime to measure the wind speed. The Anemometer features a light weight, no moving parts, and highdurability. It requires no maintenance and on-site calibration, and simultaneously outputs both windspeed and direction data. If necessary, customers may select wind speed unit, the output frequency andoutput format,may also select the heating device(recommended for cold environment)or analog output.It can connect with computers, data acquisition, or other RS485 or analog output consistent with thecollection of equipment. If necessary, you can also form a network of multiple to use. UltrasonicAnemometer is an advanced instrument of wind speed detection. Because it can overcome the inherentdefects of mechanical anemometer, it can work in whole day, long time. It gets more and more widelyused and is a powerful replacement of mechanical anemometer.

RK120-08 Ultrasonic Wind Speed And Direction Sensor 2

RK120-08 Ultrasonic Wind Speed And Direction Sensor 3

Low starting threshold.

RK120-08 Ultrasonic Wind Speed And Direction Sensor 4

Overall carbon fiber material.

RK120-08 Ultrasonic Wind Speed And Direction Sensor 5

Strong corrosion resistant ability.

RK120-08 Ultrasonic Wind Speed And Direction Sensor 6

Light structure.

RK120-08 Ultrasonic Wind Speed And Direction Sensor 7

Various output signals optional.

RK120-08 Ultrasonic Wind Speed And Direction Sensor 8

Easy Installation.

SPECIFICATIONS

Item	Technical Specification
	Wind speed	Wind direction
Range	0-60m/s	0-359°
Resolution	0.01m/s	1°
Accuracy	±2%	±3°
Starting threshold	0.01m/s
Power supply	12-24VDC(Heating must be 24VDC)
Power consumption	<0.2W (Heating not activated); <20W (Heating activated)
Output signal	RS485(MODBUS-RTU/NMEA-0183)/RS232/SDI-12 4-20mA/0-5V
Wind speed unit	m/s, knots, mph, kph, ft/min
Ultrasonic output frequency	1Hz (default); 10Hz (optional)
Extreme Wind Speed	80m/s
Baud rate	4800-19200
Operating temperature	-50℃-+70℃
Storage temperature	-50℃-+80℃
Working humidity	0 - 100%
Ingress protection	IP66
Dimension	Ф228*285mm
Weight(unpacked)	1.13kg
Main material	Stainless steel + aluminum alloy

DIMENSION & MOUNTING

Unit:mm

There are rotary adjustable mounting holes at the bottom of the sensor, when mounting the sensor, to ensure the indicator on the sensor comply with the geographic north.

RK120-08 Ultrasonic Wind Speed And Direction Sensor 9

Equipment Maintenance & Attention

Equipment maintenance:

If there is dust on the instrument, it can be lightly scrubbed with a cloth stained with (biodegradable) softdetergent.

Do not use dissolvable reagents. Scrub carefully to avoid scratching the surface of the instrument. Ifthere is snow or ice on the surface of the instrument, wait for it to dissolve naturally slowly, and do not usetools to remove it.

PRODUCT APPLICATION
