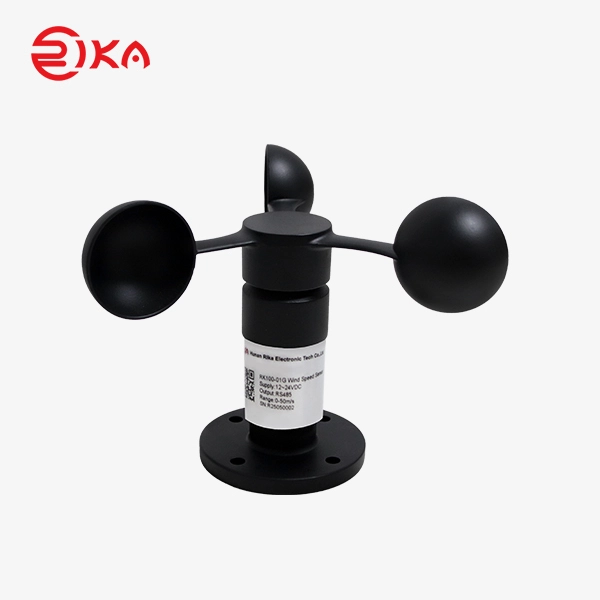

RK100-01G Wind Speed Sensor (High-Strength)

    oops...!

    no product data.

    Go to homepage
    RK100-01G Wind speed specification V5.0.pdf (2)
    RK100-01G Wind speed specification V5.0.pdf (2)
    PDF Download

    PRODUCT DESCRIPTION

    The RK100-01G wind speed sensor adopts aluminum alloy precision die casting technology, with small dimensional tolerances, high surface accuracy, built-in high-performance circuits, high strength, strong weather resistance, strong corrosion resistance, and good waterproof performance. This sensor is widely used in places where wind speed needs to be measured, such as solar farm, meteorology, ships, docks, tower cranes, ports, agriculture, etc.

    RK100-01G Wind Speed Sensor (High-Strength) 6
    RK100-01G Wind Speed Sensor (High-Strength) 7
    Low starting threshold.
    RK100-01G Wind Speed Sensor (High-Strength) 8
    Overall carbon fiber material.
    RK100-01G Wind Speed Sensor (High-Strength) 9
    Strong corrosion resistant ability.
    RK100-01G Wind Speed Sensor (High-Strength) 10
    Light structure.
    RK100-01G Wind Speed Sensor (High-Strength) 11
    Various output signals optional.
    RK100-01G Wind Speed Sensor (High-Strength) 12
    Easy Installation.

    SPECIFICATIONS

    Rika RK100-01G wind speed sensor features

    Item

    Technical Specification

    Supply voltage

    12-24VDC

    5-24VDC

    Output

    RS485,4-20mA

    Pulse(Pulse high level depends on the supply voltage)

    Range

    0-30m/s,0-50m/s,0-60m/s

    Starting threshold

    0.2m/s

    Limit wind speed

    70m/s

    Accuracy

    ±(0.3+0.03V)m/s

    Resolution

    0.1m/s

    Response time

    <1s

    Power consumption

    20mA@12V

    Ingress protection

    IP65

    Operating temperature

    -30℃-+70℃

    Main material

    Aluminum alloy

    Connector

    M12 waterproof connector

    Finish

    Polyester powder electrostatic spraying(black)

    Weight(unpacked)

    410g(Excluding wires)

    Storage condition

    10℃-60℃@20%-90%RH

    DIMENSION & MOUNTING

    Rika RK100-01G 3-cup anemometer size

    Flange mounted, fix four screws on the bracket and keep the product horizontal.

    RK100-01G Wind Speed Sensor (High-Strength) 13





    Unit:mm

    PRODUCT APPLICATION

    RK100-01G Wind Speed Sensor (High-Strength) 14
    Agricultural Meteoroiogical Station
    RK100-01G Wind Speed Sensor (High-Strength) 16
    Greenhouse Weather Station
    RK100-01G Wind Speed Sensor (High-Strength) 17
    Metereological Monitoring For Expressway
    RK100-01G Wind Speed Sensor (High-Strength) 18
    Metereological Monitoring For High-altitude Facility
    RK100-01G Wind Speed Sensor (High-Strength) 19
    Metereological Monitoring For Seaport
    RK100-01G Wind Speed Sensor (High-Strength) 20
    Weather Monitoring For Power Generating
    RK100-01G Wind Speed Sensor (High-Strength) 21
    Wind Speed Sensor & Wind Direction Sensor

    CUSTOMER TESTIMONIALS

    RK100-01G Wind Speed Sensor (High-Strength) 22
    RK100-01G Wind Speed Sensor (High-Strength) 23

    CERTIFICATE

    RK100-01G Wind Speed Sensor (High-Strength) 24
    CE-Wind Speed Sensor
    RK100-01G Wind Speed Sensor (High-Strength) 25
    EMC-Wind Speed Sensor
    RK100-01G Wind Speed Sensor (High-Strength) 26
    ISO9001
    RK100-01G Wind Speed Sensor (High-Strength) 27
    TUV Certificate
