    PRODUCT DESCRIPTION

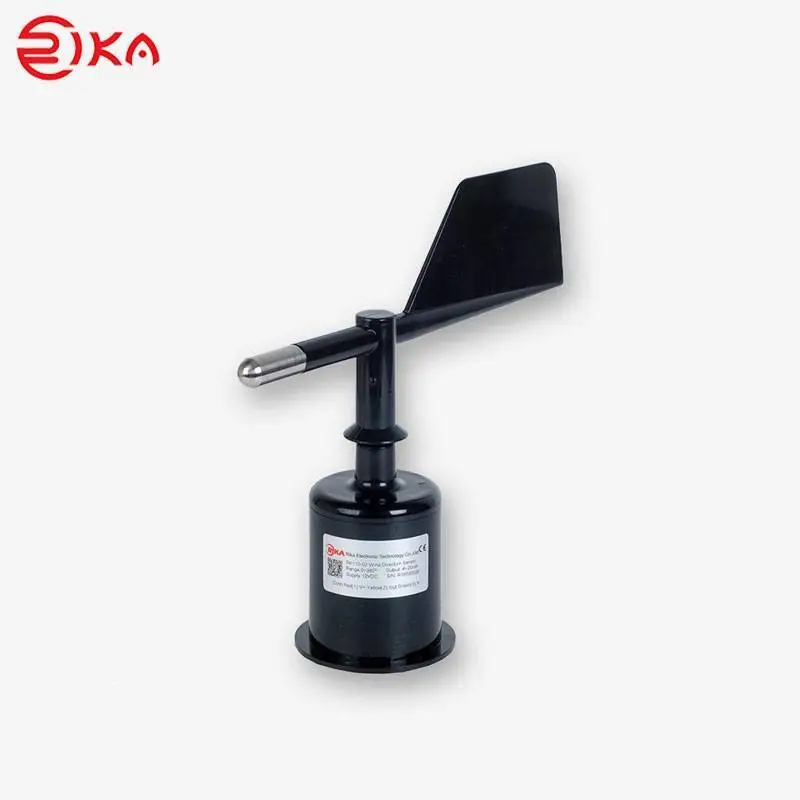

    The RK110-02 wind direction sensor is a sensitive wind direction indicator that gives a visual indication of wind direction. High precision magnetic sensitive chips are built in the housing shell. The wind vane is constructed on low inertia light metal to show wind directions. The product is wide range, good linearity, strong anti- lightning strike, good performance.

    RK110-02 Wind Direction Sensor Wind Vane Sensor 5
    RK110-02 Wind Direction Sensor Wind Vane Sensor 6
    Low starting threshold.
    RK110-02 Wind Direction Sensor Wind Vane Sensor 7
    Overall carbon fiber material.
    RK110-02 Wind Direction Sensor Wind Vane Sensor 8
    Strong corrosion resistant ability.
    RK110-02 Wind Direction Sensor Wind Vane Sensor 9
    Light structure.
    RK110-02 Wind Direction Sensor Wind Vane Sensor 10
    Various output signals optional.
    RK110-02 Wind Direction Sensor Wind Vane Sensor 11
    Easy Installation.

    SPECIFICATIONS

    Output

    4-20mA

    0-5V

    RS485

    Supply Voltage

    5V,12V-24V

    5V,12V,24V

    5V,12V-24V

    Load Capacity

    <500Ω(typ 250Ω)

    >1kΩ



    Range

    0~360°

    Accuracy

    ±3°

    Resolution

    Starting Threshold

    <0.5m/s

    Limit wind speed

    50m/s

    Ingress Protection

    IP65

    Operating Temperature

    -40℃~+50℃

    Cable Grade

    Nominal voltage: 300V, Temperature grade: 80℃

    Weight(unpacked)

    195g

    Dimension

    Turning Radius:147mm,Height:199mm

    Main material

    Carbon fiber

    Storage Condition

    10℃-50℃@20%-90%RH

    DIMENSION & MOUNTING

    Flange mounted, fix the four screws on the bracket and keep the product horizontal. There is a arrow marker on the label. Please make sure the marker is pointed to the south during installation (you can use a compass for positioning). Connector dimension:ø15mm Unit:mm
    RK110-02 Wind Direction Sensor Wind Vane Sensor 13
    Connector dimension:
    ø15mm (recommended reserving ø 25mm for wiring) Unit:mm
