PRODUCT DESCRIPTION

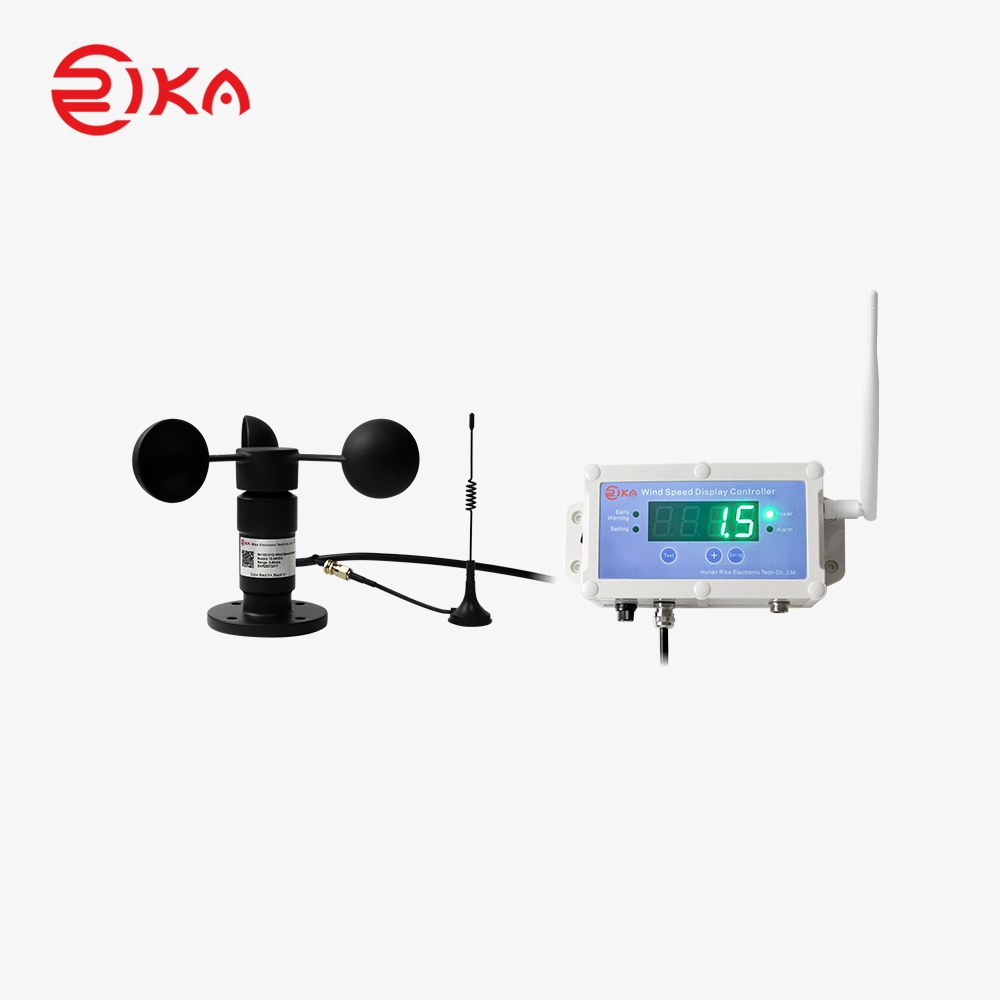

The RK150-01 anemometer is equipped with LED digital display screen that can intuitively display real-time wind speed. Built in microprocessor with high performance and low power consumption. Wind speed warning and alarm values can be set through the buttons on the panel. When giving a warning or alarm, the wind speed sensor signal output can control the relay action. Sensors and anemometers can beconnected both wired and wireless to monitor environmental wind speed in real-time.
The RK150-01 supports both wired and wireless connections between the wind speed sensor and the display controller. For the wireless version, the effective transmission distance can reach up to 1 km under line-of-sight conditions, while the wired version supports a cable connection of up to 200 m. These options provide flexibility for different crane installation environments and wind speed monitoring requirements. Combining real-time wind speed display, adjustable warning and alarm thresholds, and relay output, the crane wind speed indicator helps operators monitor changing wind conditions and receive timely warnings when preset thresholds are reached.
SPECIFICATIONS
ltem | Technical Specification | |
Range | 0-60m/s | 0-216km/h |
Accuracy | ±(0.3+0.03V)m/s | ±(1.08+0.11V)km/h |
Resolution(display) | 0.1m/s | 0.1km/h |
Early warning | Any value within 1 m/s~59 m/s,the warning | Any value within1km/h~212km/h,the warning |
Alarm | Any value within 1 m/s~60 m/s | Any value within 1km/h~216km/h |
Alarm response time | <100mS | |
Type of alarm | Sound and light alarm | |
Contact capacity | 10A@30VDC/250VAC | |
Wired type | Cable:200m(max.)between sensorand controller | |
Wireless type | Effective distance:1km(LOS)between sensor and controller | |
Operating temperature | -30℃-+70℃ | |
Power supply | AC100-240V/DC12V-DC24V | |
Power consumption | Wired:<3W(sensor & controller) | |
Ingress protection | Controller:IP54,wind speed sensor:IP65 | |
Weight(unpacked) | Controller:315g,wind speed sensor:240g | |
Main material | Controller(housing):ABS,wind speed sensor:Aluminum alloy | |
Storage condition | 10℃-50℃@20%-90%RH | |
Mounting
Four ø4.5mm mounting pole
