Rika water monitoring sensors manufacturer for temperature monitoring

Rika water monitoring sensors manufacturer for temperature monitoring

Model:
RK500-12
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika water monitoring sensors manufacturer for temperature monitoring

PRODUCT DESCRIPTION

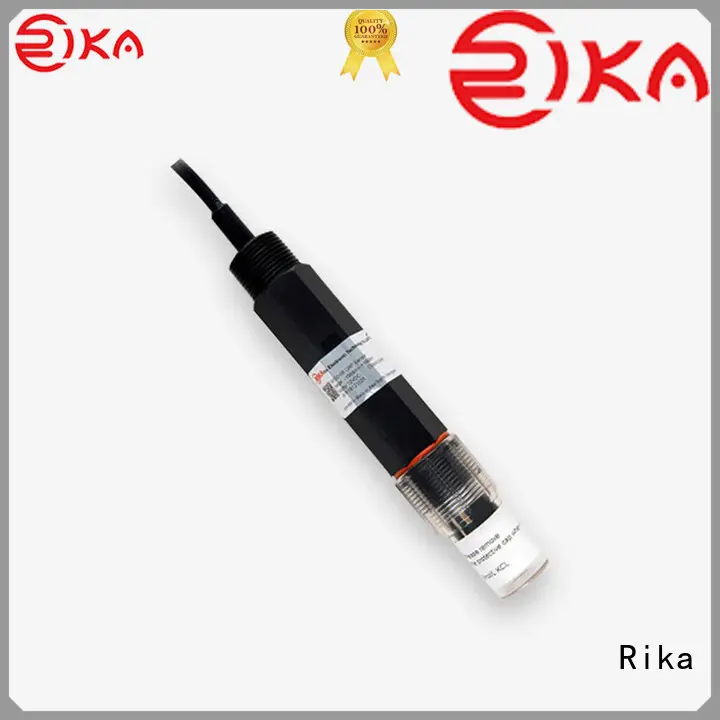

RK500-12 ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning extending the life time.

Rika water monitoring sensors manufacturer for temperature monitoring-1

SPECIFICATIONS

Item

Technical Specification

Measurement Principle

Electrochemistry

Range

0-14PH

Supply

7-30VDC(power consumption<0.2W)

Accuracy

±0.05PH

Resolution

0.01PH

Temperature Compensation

Temperature compensation is optional

Response time

<8s(flowing liquid), <14s(stationary liquid)

Stability

≤0.01PH/24h

Output Signal

4-20mA & RS485 at the same time

Calibration Cycle

Every 6 month(General water )
     Every 3 month or shorter(Seriously polluted water )

Operating Environment

0-+80℃(<0.6MPa), high pressure is customizable

Cable length

5m(default),customizable

Ingress Protection

IP68

Storage

10-60℃@20%-90%RH

PH SCALE

PH value

Description

PH value

Description

<4.5

Strongly acidity

7.5-8.5

Faintly alkalinity

4.5-5.5

Acidity

8.5-9.5

Alkalinity

5.5-6.5

Faintly acidity

>9.5

Strongly alkalinity

6.5-7.5

Neutral



DIMENSION

ELECTRODE MAINTENANCE & INSTALLATION AND FIXED

PH electrode is not used at ordinary times and can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water and deionize the water or tap water with minimal plasma content.If the PH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l Hcl or NaOH solution for a few minutes and then washed with distilled water. If the PH electrode is contaminated with organic substances, it can be cleaned with alcohol or acetone and then cleaned with distilled water.(note: the protective cap before the electrode should be removed when using);

Clean the electrode with tap water every 3 months or 6 months according to the working environment.

Mounting bracket(length=1m) is optional

PRODUCT DETAILS

Rika water monitoring sensors manufacturer for temperature monitoring-16

Rika water monitoring sensors manufacturer for temperature monitoring-17Product Principle

Rika water monitoring sensors manufacturer for temperature monitoring-18

Rika water monitoring sensors manufacturer for temperature monitoring-19 Water-Proof

PRODUCT APPLICATION
