Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika weather station radiation shield supplier for relative humidity measurement1

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

2 PCS

Model:

RK95-02A

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

Product Details

Rika Sensors pays great attention to product quality and strives for perfection in every detail of products. This enables us to create fine products.Rika Sensors carries out strict quality monitoring and cost control on each production link of weather sensors, from raw material purchase, production and processing and finished product delivery to packaging and transportation. This effectively ensures the product has better quality and more favorable price than other products in the industry.

PRODUCT DESCRIPTION

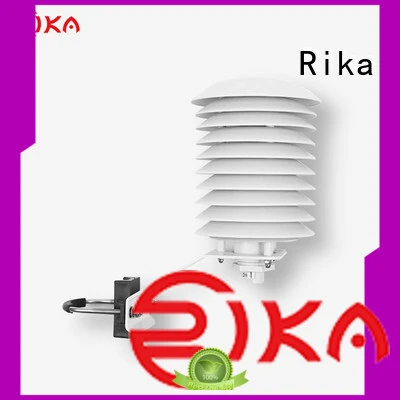

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather condition.

Rika weather station radiation shield supplier for relative humidity measurement1 3

Compact size for easy use

Good air circulation around shield

Excellent stability

Simple operation screen

SPECIFICATIONS

Item		Specifications
		A	B
Number of plates		10	7
Color		Pure white
Dimensions( mm)	Inner diameter	30	22
	Outer diameter	130	79
	Internal height	135	80
Material		Special engineering plastics against radiation & Stainless steel screw
Install accessories(attached)		Stainless steel bracket
Operating temperature		-40℃-+75℃

DIMENSION & MOUNTING

Rika weather station radiation shield supplier for relative humidity measurement1 8

Rika weather station radiation shield supplier for relative humidity measurement1 9

PRODUCT DETAILS

Rika weather station radiation shield supplier for relative humidity measurement1 10

Rika weather station radiation shield supplier for relative humidity measurement1 11 Installation Probes

Rika weather station radiation shield supplier for relative humidity measurement1 12

Rika weather station radiation shield supplier for relative humidity measurement1 13 Suitable For Outdoor Installation

Rika weather station radiation shield supplier for relative humidity measurement1 14

Rika weather station radiation shield supplier for relative humidity measurement1 15 Rain-proof Design

PRODUCT APPLICATION

Agriculture Weather Station

Automatic weather station

PV Station

Scenic Spot

Schoolyard Weather Station

Weather Station

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
