 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika wind anemometer solution provider for meteorology field 1
Rika wind anemometer solution provider for meteorology field 1

Rika wind anemometer solution provider for meteorology field

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2 PCS
Model:
RK100-02
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry

PRODUCT DESCRIPTION

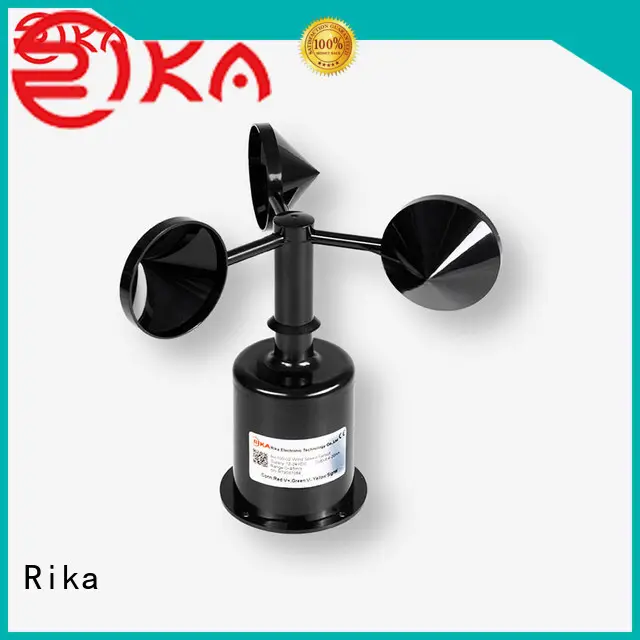

The RK100-02 Wind Speed Sensor uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups are made of carbon fiber material, with high intensity and low starting threshold. The signal processing units are built in the housing shell. Rika RK100-02 3 cup anemometer can be widely used in meteorology, marine, environmental monitoring, airport, harbor, laboratory, industrial and agricultural areas.

Rika wind anemometer solution provider for meteorology field 2

SPECIFICATIONS

Rika RK100-02 wind speed sensor features

Output

Pulses

4-20mA

0-5V

RS485

Supply voltage

5V, 12V-24V

5V, 12V-24V

5V, 12V-24V

5V, 12V-24V

Load capacity

>1kΩ

<500Ω(typ 250Ω)

>1kΩ


Range

0-45m/s

0-45m/s

0-45m/s

0-45m/s

Accuracy

±(0.3+0.03V)m/s; (V is the current wind speed)

Starting threshold

<0.5m/s

Limit wind speed

50m/s

Ingress protection

IP65

Operating temperature

-40℃ ~ +50℃

Cable grade

Nominal voltage: 300V, Temperature grade: 80℃

Weight(unpacked)

170g

Dimension

Cup rotor: 179mm, Height: 160mm

Main material

Carbon fiber

Storage condition

10℃-50℃@20%-90%RH

DIMENSION & MOUNTING

Rika RK100-02 3-cup anemometer size

PRODUCT FUNCTION

Rika wind anemometer solution provider for meteorology field 12
Rika wind anemometer solution provider for meteorology field 13
Rika wind anemometer solution provider for meteorology field 14

PRODUCT APPLICATION



Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
