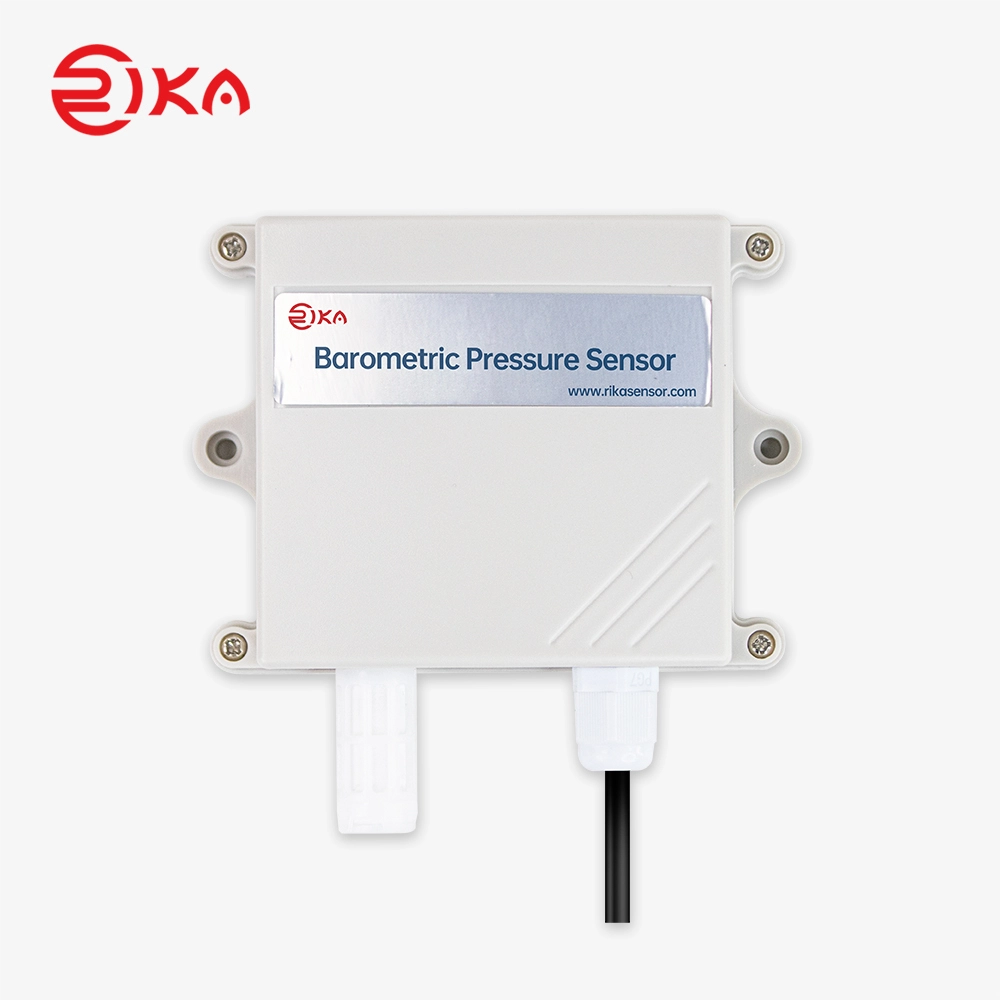

RK300-01 Customized Wall-mounted Barometric Pressure Sensor
PRODUCT DESCRIPTION
RK300-01 Wall-mounted Barometric Pressure Sensor with small size, reliable performance, high precision, long transmission distance, strong anti-jamming capability,which is widely used in meteorology, marine, environment, airports, ports, laboratory, agricultural and transportation and other fields.
SPECIFICATIONS
Item | Technical Specification |
Range | 500-1100hPa(mbar) |
Resolution | 0.1hPa |
Accuracy | ±1mBar(-20~45℃) |
Temperature Drift | ≤0.02%FS/℃ |
Response Time | <1s |
Supply | 12VDC |
Output Signal | SDI-12 |
Power consumption | ≤5mA active |
≤1mA static | |
Operating Temperature | -40℃-+75℃ |
Ingress Protection | IP65 |
Storage | 10-60℃@20%-90%RH |
Dimensions | 117 *86*40 mm |
Weight(unpacked) | 155g |
MOUNTING
1. Install the product in stable environment area, avoid direct sunlight, away from windows air-conditioning,
heating and other equipment. Otherwise it will cause atmospheric pressure measurement inaccuracies.
2. It is recommended to install in the cabinet open to the atmosphere, for example: instrument shelter.
DIMENSION
Unit:mm
