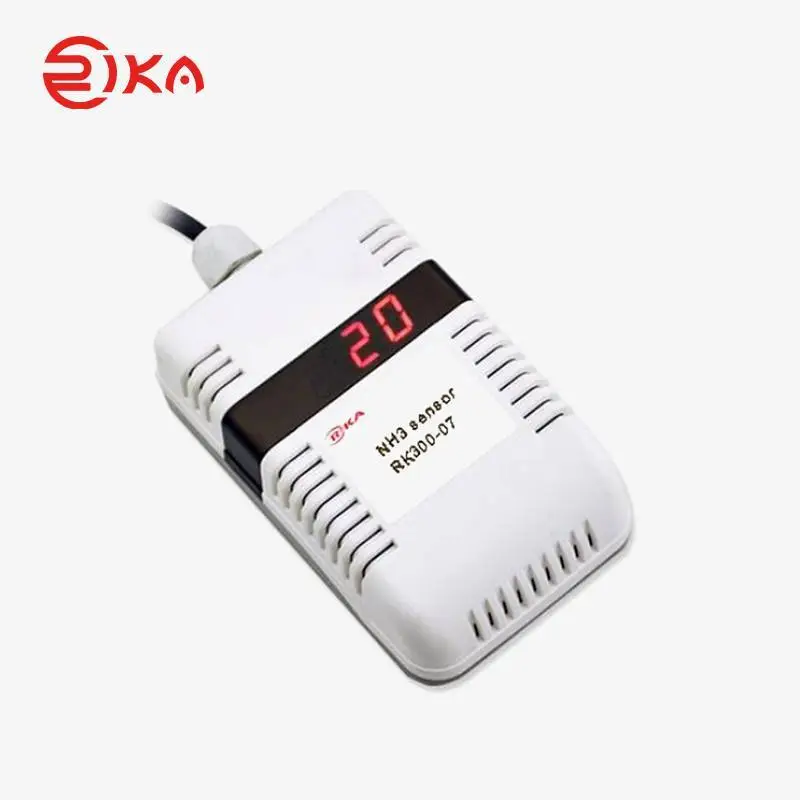

RK300-07 NH3 Concentration Sensor 1
RK300-07 NH3 Concentration Sensor 1

RK300-07 NH3 Concentration Sensor

    oops...!

    no product data.

    Go to homepage
    PDF Download

    PRODUCT DESCRIPTION

    RK300-07 NH3 Concentration Sensor is composed of three electrode electro-chemical sensor and high performance microprocessor, the built-in temperature sensor for temperature compensation, can accurately measure the ammonia concentration environment, perfect combination of electro-chemical sensors and transmitting circuit is satisfy for ammonia concentration detection.

    RK300-07 NH3 Concentration Sensor 2
    RK300-07 NH3 Concentration Sensor 3
    LCD display Optional.
    RK300-07 NH3 Concentration Sensor 4
    Temperature Compensation.
    RK300-07 NH3 Concentration Sensor 5
    Fast response.
    RK300-07 NH3 Concentration Sensor 6
    Excellent stability.
    RK300-07 NH3 Concentration Sensor 7
    Multiple signal output options.
    RK300-07 NH3 Concentration Sensor 8
    High sensitivity.

    SPECIFICATIONS

    Item

    Technical Specification

    Range(concentration)

    0-100ppm

    Accuracy

    ±5%FS@25℃

    Resolution

    1ppm

    Supply

    5VDC,12-24VDC

    Output

    4-20mA,0-5V,RS485

    Power Consumption

    <50mA@24V(4-20mA)

    Response Time

    <15s

    Operating Temperature

    -20℃-+50℃@15-80%RH

    Storage

    -40-70℃@20%-90%RH

    Shell Material

    ABS




    WORKING PROCESS & DIMENSION

    RK300-07 NH3 Concentration Sensor 9
    RK300-07 NH3 Concentration Sensor 10

    PRODUCT APPLICATION

    RK300-07 NH3 Concentration Sensor 11
    RK300-07 NH3 Concentration Sensor 12
