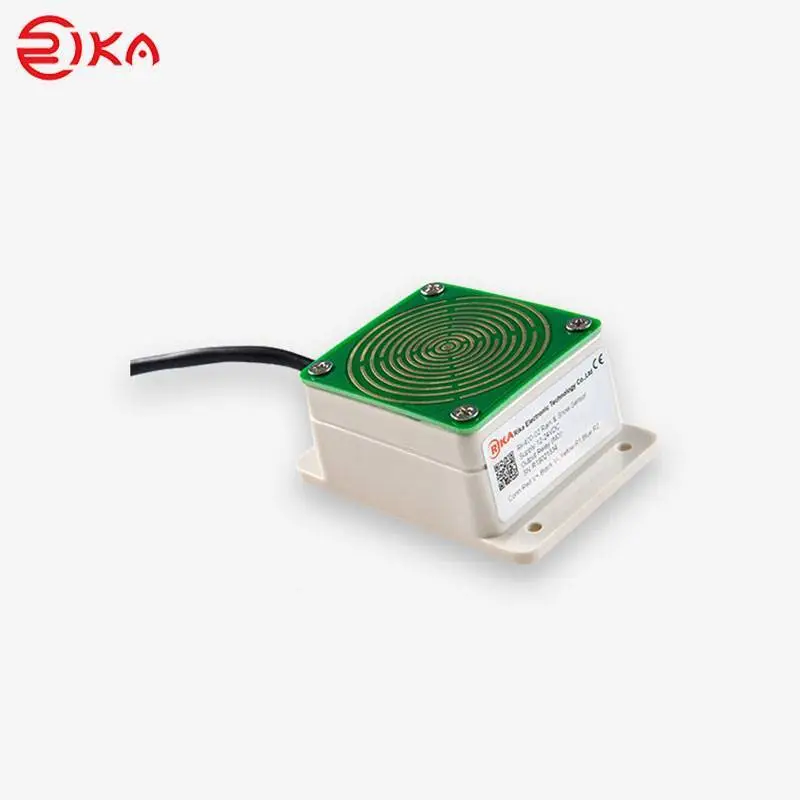

RK400-02 Rain & Snow Sensor, Rain & Snow Switch
PRODUCT DESCRIPTION
RK400-02 Rain & Snow Sensor is a high sensitive detector to achieve qualitative detection of rain and snow. There is a ring conductor sense rain board on the surface. Products are optional automatic melting snow and melting ice function (automatic heating). When it rains or snows, it will output switch signal.
SPECIFICATIONS
Item | Specifications |
Supply Voltage | 12-24VDC |
Automatic heating | heating power:10W max. |
Output | Relay(NO) |
Load Capacity(relay) | AC120V/2A ,DC24V/2A |
Coil material | Gold-plated(Strong corrosion resistance) |
Ingress protection | IP67 |
Operating Temperature | -30℃-+70℃ |
Weight(unpacked) | 150g |
Dimension | 90*60*40mm |
Shell material | ABS |
Storage Condition | 10℃-60℃@20%-90%RH |
