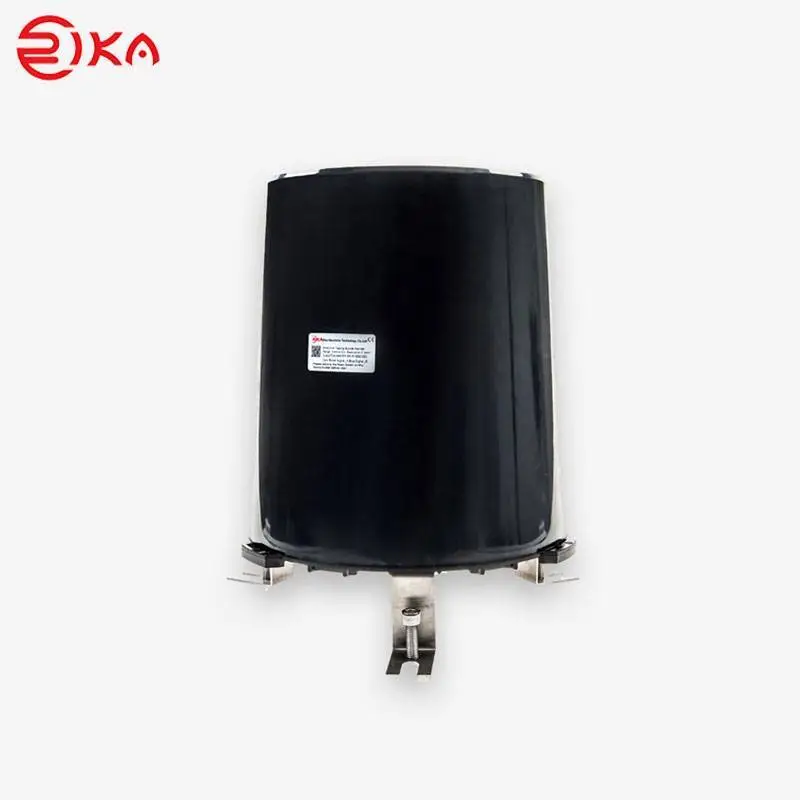

RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor

    oops...!

    no product data.

    Go to homepage
    PDF Download

    PRODUCT DESCRIPTION

    RK400-04 Economical Tipping Bucket Rainfall Sensor is a hydrology, meteorological instrument used to measure the nature of rainfall, and it converts the precipitation into a pulse signal output. Designed with insect-proof nets, free blocking nozzle and built-in leveller. The model can be used in meteorology, hydrology, agriculture, forestry, field monitoring stations and other industries. Combined with rainfall recorder can be used to measure measure precipitation, precipitation intensity, precipitation time.

    RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor 6
    RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor 7
    Compact size for easy use.
    RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor 8
    Auto-heating function.
    RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor 9
    Excellent stability.
    RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor 10
    High accuracy.
    RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor 11
    Stainless steel Construction.
    RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor 12
    Outlet with insect-proof.

    SPECIFICATIONS

    Item

    Specification

    Collector

    Diameter :φ200mm, height: 271mm

    Measured rainfall intensity

    Max: 4mm/min

    Allow rainfall intensity

    Max: 8mm/min

    Resolution

    0.2mm

    Accuracy(2mm/min)

    ±4%

    Maximum load voltage

    30VDC(pulse output)

    Maximum load current

    20mA

    Output

    Pulses(@10kΩ&0.01uF),RS485(12-24VDC supply)

    Operating temperature

    0-60℃@0%-100%RH

    Weight(unpacked)

    Rainfall collector & tipping bucket: ABS,
         Supporting leg:304SS

    Weight(unpacked)

    2kg

    WORKING PROCESS DIMENSION & MOUNTING

    DIMENSION & MOUNTING

    Adjust the balance foot screws to ensure that it is in a horizontal position.Using three fastening screws to fix this three support legs at the platform to keep the entire apparatus at an optimum level , which ensure the accuracy of rainfall data.

    RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor 13

    WORKING PROCESS

    Rainfall is captured in the 200mm diameter collector funnel and is directed through a delivery pipe to fill a divided ABS injection molded tipping bucket device.The bucket is pivoted through its center and has a preset calibration to tip for 0.2 mm of rainfall. When the bucket is “full”, it pivots and empties - this action magnetically closes and opens a reed switch, sending a pulse signal to the data logger or electronic counter. Through this tipping “seesaw” action, the other side of the bucket is aligned to receive the flow from the delivery pipe. This recording and tipping cycle continues with rainfall.

    PRODUCT DETAILS

    RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor 14

    RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor 15Product Principle

    RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor 16

    RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor 17 Material

    RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor 18

    RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor 19Leaf Filter

    RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor 20

    RK400-04 Economical Plastic Tipping Bucket Rain Gauge Sensor 21Horizontal Adjustment
