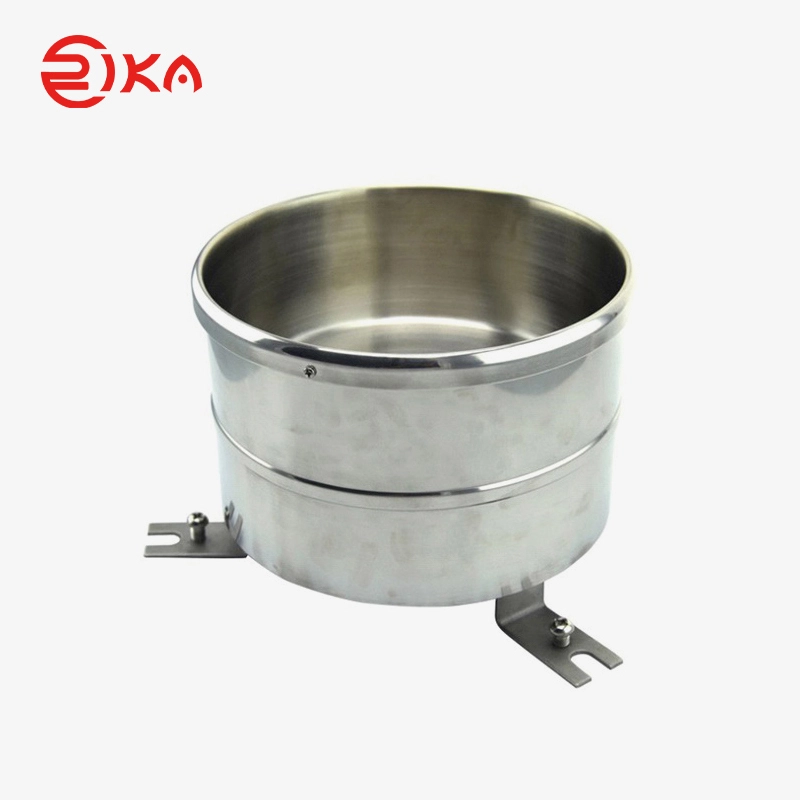

RK400-10 Weight Principle Evaporation Sensor
PRODUCT DESCRIPTION
The product uses the high-precision weighing principle to measure the liquid weight in the evaporation pan, and calculates the liquid level of evaporation loss by measuring the difference of the liquid weight before and after the measurement. The evaporating dish is made with high-quality stainless steel , which has good anticorrosive and anti erosion characteristics. It ensures the measurement accuracy and can be used in conjunction with the automatic weather station or professional evaporation recorder.
SPECIFICATIONS
Item | Specification |
Evaporation pan | Diameter :φ200mm |
Range | 0-75mm |
Response time | <1s |
Accuracy | ±1% |
Power Supply | 5V,12-24V |
Output | 4-20mA,0-2V,0-5V,RS485 |
Operating temperature | -30-+80℃ |
Ingress protection | IP65 |
Main material | 304SS |
Weight(unpacked) | 2.5kg |
