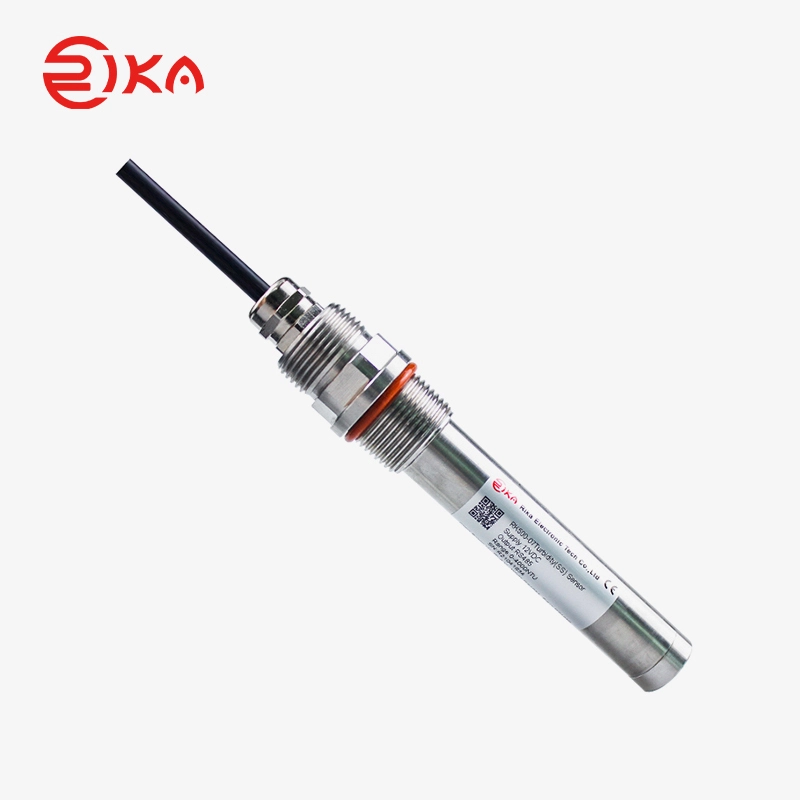

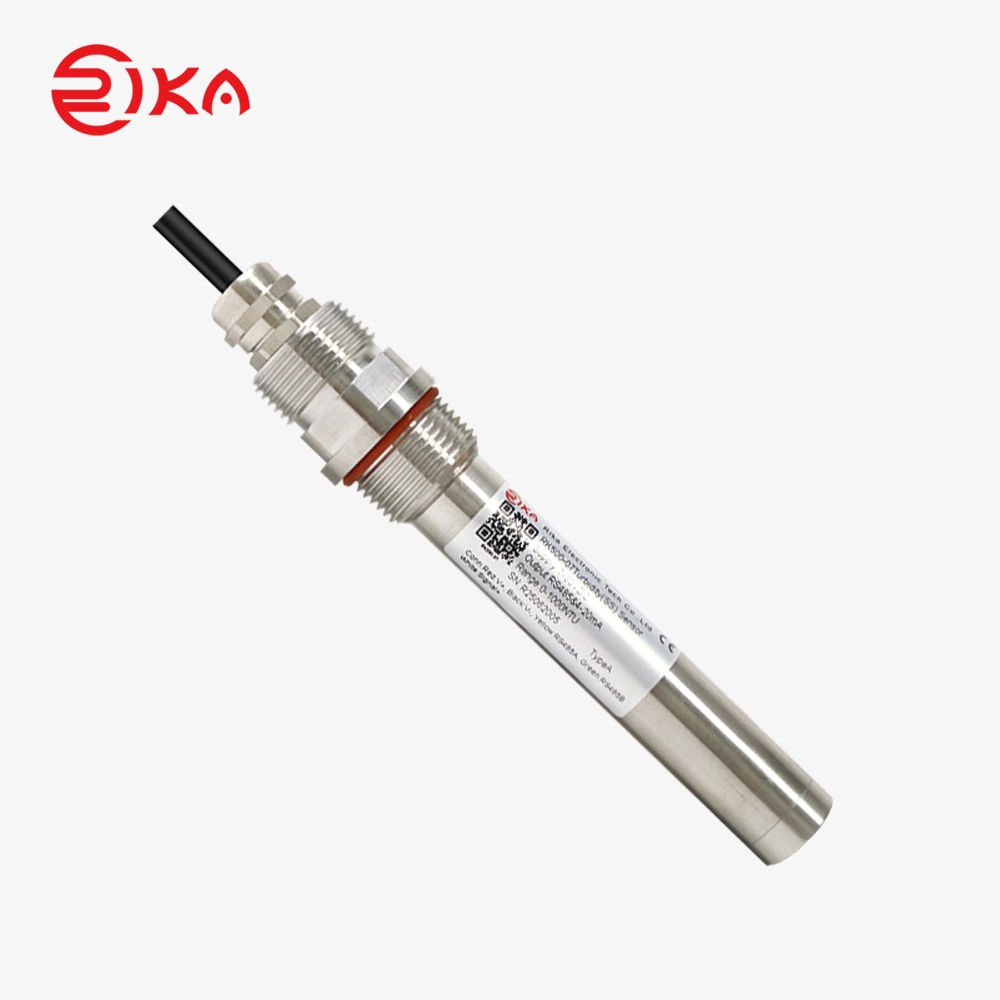

RK500-07 (SS) Turbidity Sensor

    oops...!

    no product data.

    Go to homepage
    PDF Download

    PRODUCT DESCRIPTION

    RK500-07 Turbidity sensor is an instrument which uses optical principle to measure the degree of turbidity of water. Turbidity is caused by suspended particles in water. The suspended particles reflect the incident light. Usually, the scattered light in the direction of 90°is used as the test signal, so the unit tested is called NTU. This method is suitable for testing low to medium range, ranging from 0.01 to 4000FNU. According to EN27027 and ISO7027 standards, infrared light of 860 nm is used as light source, which cannot be disturbed by the chromaticity of samples.

    素材
    RK500-07 (SS) Turbidity Sensor 7
    Fast response.
    RK500-07 (SS) Turbidity Sensor 8
    Excellent stability.
    RK500-07 (SS) Turbidity Sensor 9
    Widely used.
    RK500-07 (SS) Turbidity Sensor 10
    High sensitivity.
    RK500-07 (SS) Turbidity Sensor 11
    High precision.
    RK500-07 (SS) Turbidity Sensor 12
    Simple operation.

    SPECIFICATIONS

    Item Technical Specification
    Range 0-100NTU,0-1000NTU,0-4000NTU
    Accuracy ±1.5%FS
    Resolution 0.10%
    Supply 12-24VDC
    Output RS485,4-20mA
    Pressure resistance <0.4MPa
    Measuring principle optical
    Power consumption <0.2W
    Operating temperature 0-+60
    Wavelength of falling radiation 860nm
    Spectral band width <60nm
    Diapason choosing automatically
    Dimension Φ20*145mm
    Main material 316L
    Ingress protection IP68
    Storage 10-60@20%-90%RH
    Cable length 5m default

    DIMENSION

    RK500-07 (SS) Turbidity Sensor 13

    Unit:mm

    PRODUCT DETAILS

    Introduction to turbidity sensor
    Product details display of turbidity sensor
    Optical measurement principle of turbidity sensor

    PRODUCT APPLICATION

    RK500-07 (SS) Turbidity Sensor 17
    Biodegradation
    RK500-07 (SS) Turbidity Sensor 18
    Agricultural Irrigation
    RK500-07 (SS) Turbidity Sensor 19
    Chemical
    RK500-07 (SS) Turbidity Sensor 20
    Reservoir
    RK500-07 (SS) Turbidity Sensor 21
    Water Treatment
    RK500-07 (SS) Turbidity Sensor 22
    River
    RK500-07 (SS) Turbidity Sensor 23
    Well
    RK500-07 (SS) Turbidity Sensor 24
    Urban Sewage

    CUSTOMER TESTIMONIALS

    RK500-07 (SS) Turbidity Sensor 25
    RK500-07 (SS) Turbidity Sensor 26

    CERTIFICATE

    RK500-07 (SS) Turbidity Sensor 27
    TUV Certificate
    RK500-07 (SS) Turbidity Sensor 28
    ISO9001
    RK500-07 (SS) Turbidity Sensor 30
    RoHS-Automatic Weather Station
