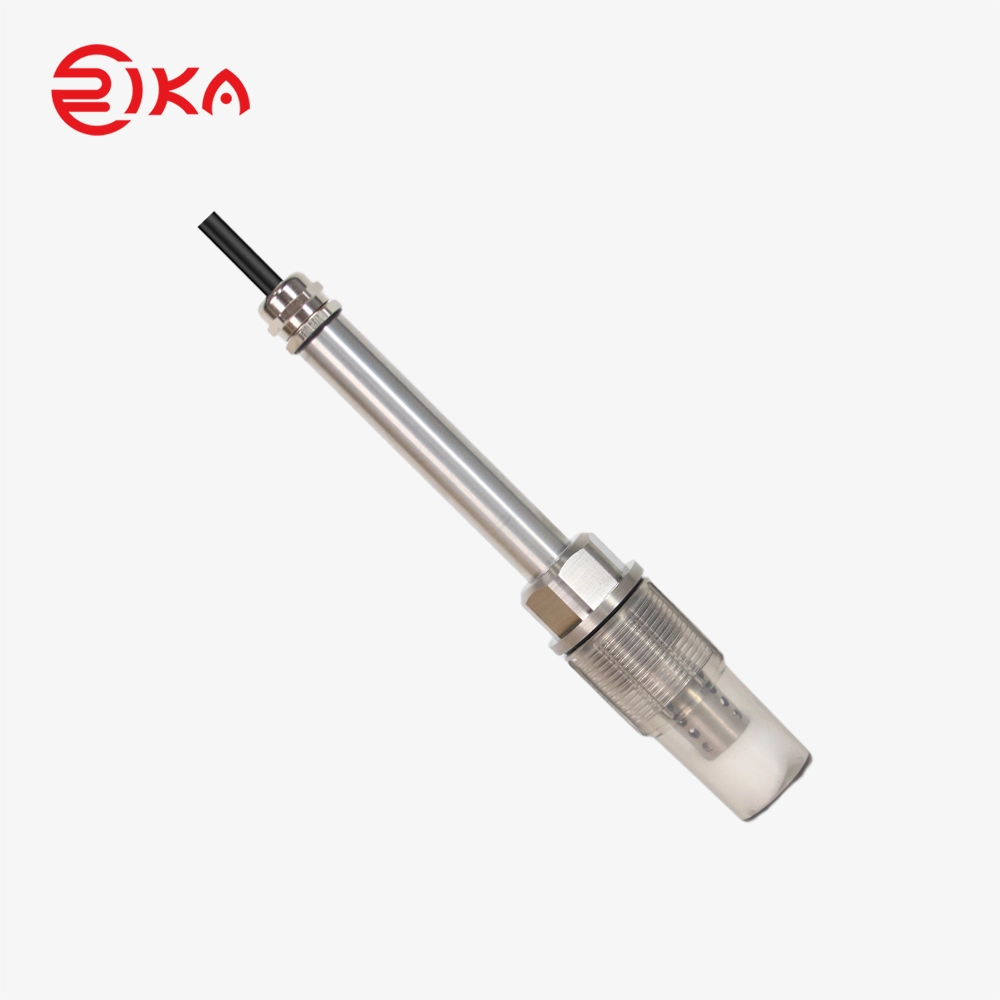

RK500-12 (Liquid cooling) pH Sensor
PRODUCT DESCRIPTION
The RK500-12 liquid-cooled pH sensor is tailored for precise monitoring of liquid cooling systems, addressing the critical impact of cooling liquid cleanliness on system stability. As the stable operation of liquid cooling systems hinges on the purity of the cooling liquid—where contaminants like particulate matter, corrosion products, and microbial impurities can reduce heat dissipation efficiency, clog pipelines, corrode components, and even trigger system failures or downtime accidents—this sensor serves as a key monitoring tool. It utilizes advanced glass electrode technology paired with a high-precision signal processing chip to accurately measure pH values, sensitively capturing subtle changes in the acidity or alkalinity of the cooling liquid. Whether operating in acidic or alkaline environments, it delivers accurate and stable monitoring data, laying a reliable foundation for evaluating the operating status of liquid cooling systems and preventing hazards caused by imbalanced pH levels.
SPECIFICATIONS
Item | Technical Specification |
Main material | 316L+ Titanium alloy |
Applicable medium | Deionized water, PG25,EG25 |
O-ring material | EPDM |
Screw thread | Upper:G3/4 |
Sealing method | End face sealing |
Outlet mode | Direct outlet, customizable M16 aviation plug outlet |
Accuracy | ±0.1pH |
Resolution | 0.01pH |
Power consumption | <0.2W |
Operating temperature | 0-+60℃ |
Temp. compensation | Thermal resistance |
Range | 0-14pH |
Supply | 7-30VDC |
Output | 4-20mA&RS485 at the same time |
Response time | 10 seconds (98% flowing liquid) |
Pressure resistance | <1MPa(10Bar) |
Ingress protection | IP68 |
Storage | 10-60℃@20%-90%RH |
Cable length | 5m default, other cable lengths can be customized |
DIMENSION
Uint:mm
Installation & Fixed
