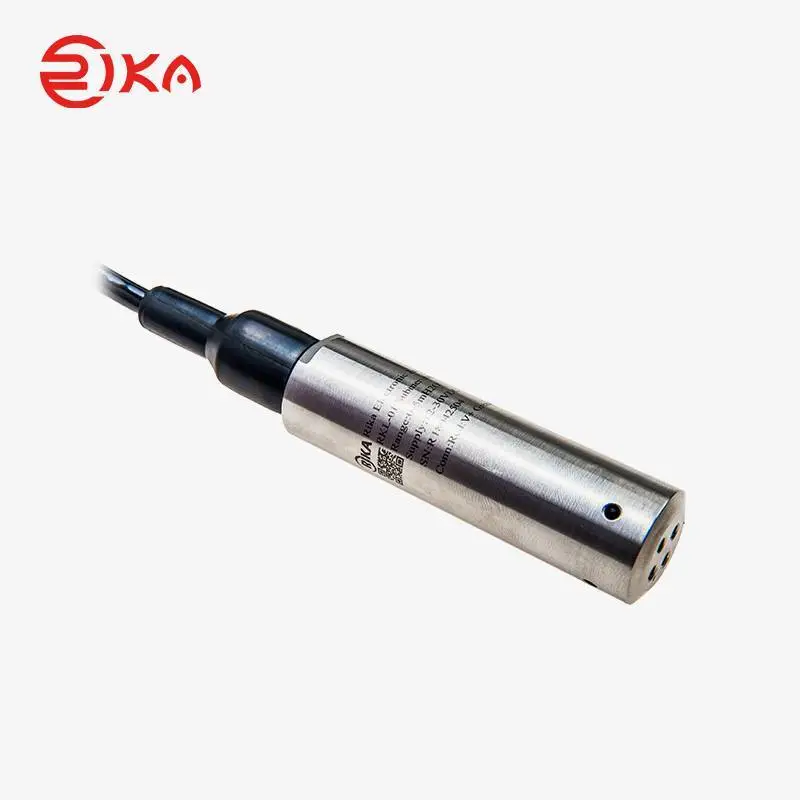

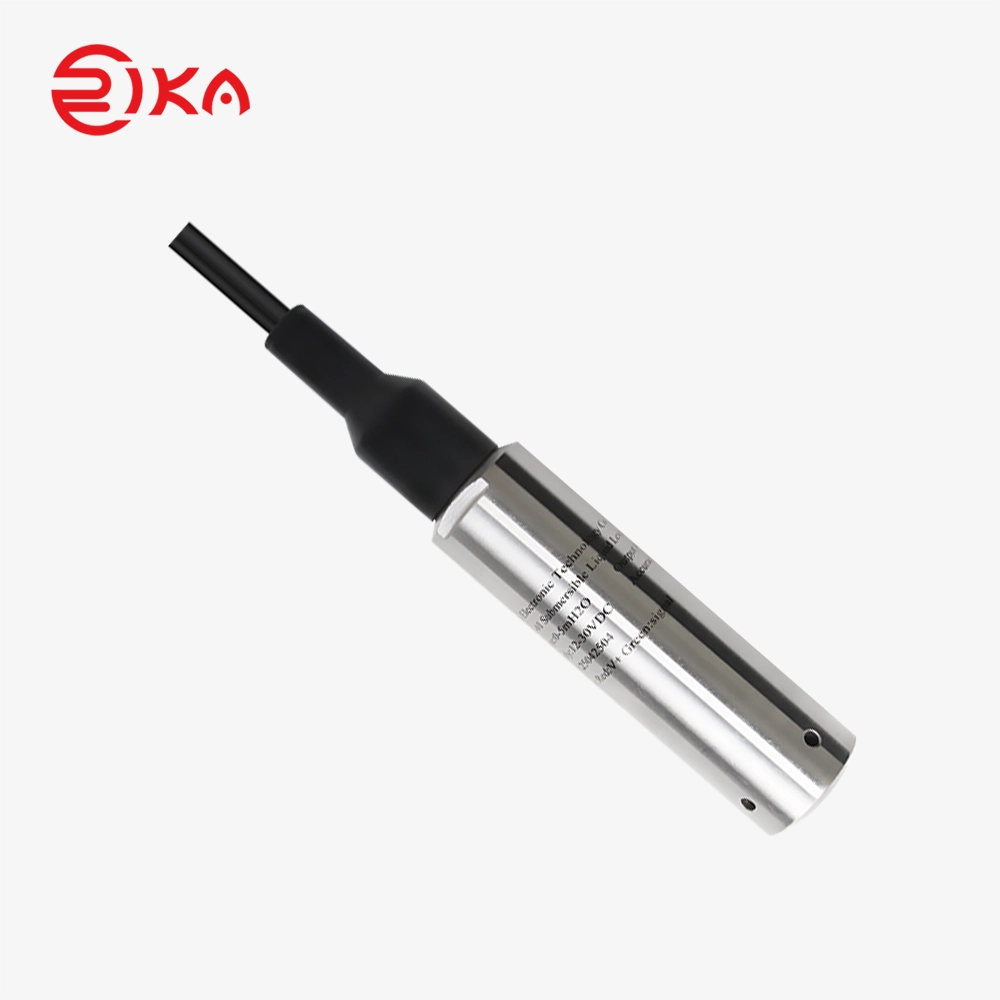

RKL-01 Submersible Liquid Level Transmitter Submersible Water Level Sensor
PRODUCT DESCRIPTION
RKL-01 Submersible Liquid Level Transmitter features a stainless steel isolation diaphragm and utilizesdiffusion silicon pressure sensor element,the pressure core body adopts the process of laser trimmingresistor for a wide temperature range of zero and sensitivity temperature compensation.Special cable forair-venting conduit and waterproof technology ensures water tightness,and ventilation between insideand outside,ensuring long-term measurement stability and accuracy.
SPECIFICATIONS
Item | Technical Specification | |||
Product diameter | Φ27mm default | Φ19mm | Φ16mm | Φ13mm |
Range① | 0 ~ 0.5m…500mH2O | 0 ~ 5m…300mH2O | 0 ~ 0.5m…200mH2O | 0 ~ 3m…300mH2O |
Temperature coefficient of zero | ±0.015%FS/°C@25°C | 2%FS (Max) | ±0.015%FS/°c@25°C | |
Temperature coefficient of span | ±0.02%FS/°C@25°C | 2%FS (Max) | ±0.02%FS/°c@25°C | |
Supply voltage | 10-30VDC,24V typ. | |||
Output | 4-20mA,0-5V,0-10V,RS485 | |||
Overload pressure | 1.5×FS | |||
Measuring medium | The liquid(not sticky ) compatible with 316 stainless steel | |||
Total accuracy | 0.1%FS,0.25%FS, 0.5%FS (standard) | |||
Long-term stability | 0.1%FS/year typ., 0.2%FS/year max | |||
Ingress protection | IP68 | |||
Operating temperature | -20°C~ +85°C | |||
Compensating temperature | -10°C~ 70°C, -40°C~ 70°C(Φ27mm) | |||
Main material | Sensor:316L, housing:304SS (316L is optional) | |||
Cable | Outer layer material: PUR, Atmospheric pressure compensation cable, Polymer waterproof plug | |||
Cable weight | PUR cable: 0.056kg/m, PUR reinforced cable: 0.06kg/m | |||
Power consumption | Current output:(U*0.02)W, Voltage output:(U*0.008)W, Digital output:(U*0.015)W | |||
Load capacity | Current output:≤(U-10)/0.02Ω, Voltage output:≥20kΩ | |||
Insulation resistance | 100MΩ@ 250VDC | |||
Response time | 1ms | |||
Pressure connection | Screw thread, throw-in type | |||
Weight (probe unpacked) | Probe 27mm: 0.3kg, Probe 19mm, 16mm, 13mm, Weight: 0.2kg | |||
Storage condition | -40°C-75°C(dry soundings) | |||
Corresponding relationship between product outer diameter, accuracy, and measuring range
Accuracy | 0.5%FS (standard) | 0.25%FS | 0.1%FS |
Product outer diameter | Φ27,Φ19,Φ16,Φ13 | Φ27,Φ19 | Φ27,Φ19 |
Starting range | Range ① indicates the range | Range≥2m | Range≥4m |
DIMENSIONS
Unit:mm
MOUNTING
As shown in picture 1, when the submersible level sensor is installed in static water such as in poos, water towers, probe is immersed into the bottom and should be as far as possible away from the pump or valves. The terminal box should keep above water surface and prevent water penetrating into cables.Please make sure the airway not be blocked;
As shown in picture 2, when the submersible water level sensor is installed in dynamic water such as dams or rivers, the probe should be inserted into a steel pipe(inner dia is around 45mm), burrowing several holes at a different height on the pipe side wall which is opposite to the water flow direction. The terminal box should keep above the water surface and prevent water from penetrating cables. Please make sure the airway not be blocked.
PRODUCT APPLICATION
Applications of the Rika RKL-01 submersible level transmitter
Submersible water level sensors can be used in a variety of applications, including groundwater monitoring, wastewater management, and irrigation systems.
They can also be used in industrial applications to monitor water levels in tanks and other containers.
