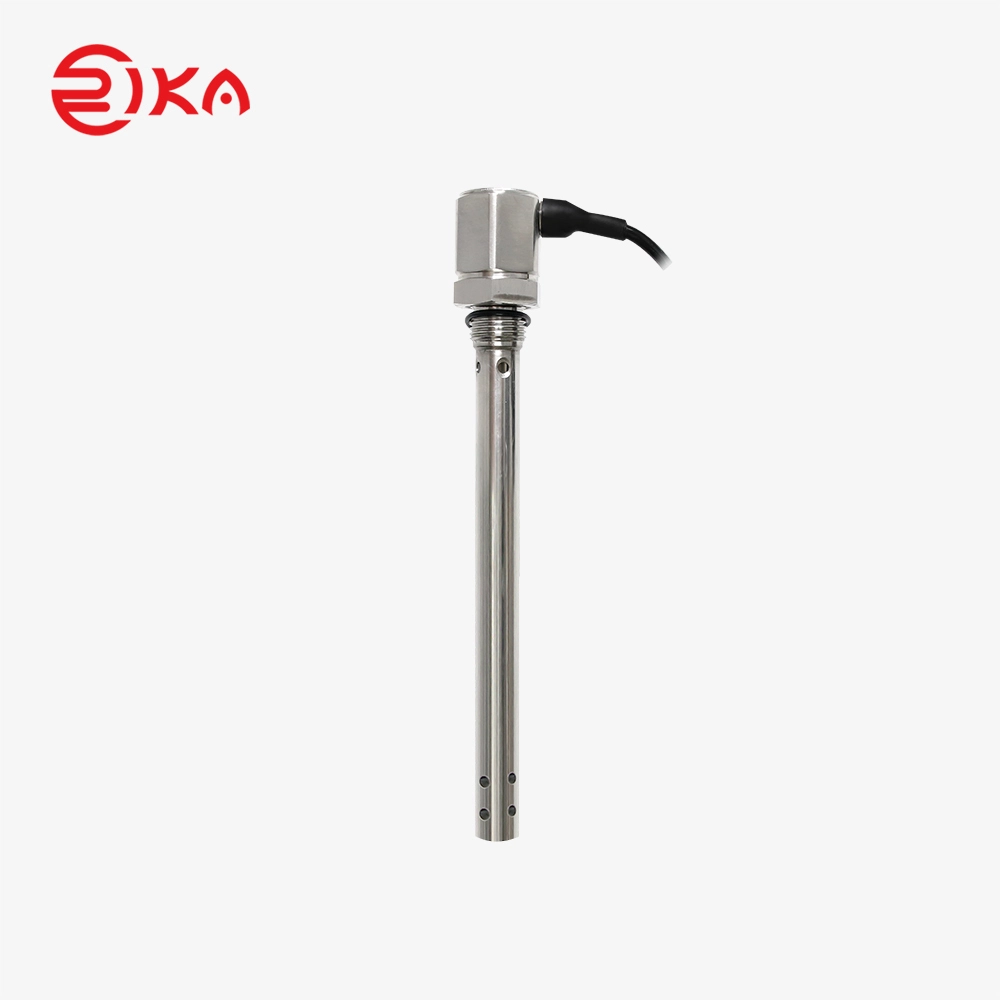

Rkl-04 Capacitance Fuel Level Sensor

这里可以自定义设置

PRODUCT DESCRIPTION

The sensing part of the RKL-04 is a coaxial capacitor, when the liquid enters the condenser caused the change of the sensor shell and sensor capacitance between electrodes, the variation through the subsequent acquisition and conversion circuit and precise linear and temperature compensation, the output field required standard voltage, current, the digital signal, sampling frequency is adjustable. Food grade Teflon and 304 stainless steel material with fully welded structure, high health level, high breaking strength; Long - term stability, high reliability. Used for measuring: oil (gasoline, diesel oil, hydraulic oil, lubricating oil), water (sewage), beverage, medical treatment, chemical and other liquid media, suitable for high and low temperature, or even viscous liquid media occasions. Extremely wide measuring range: 0.03......2m, especially suitable for measuring liquid heights below 500mm.

Wide temperature range compensation

Fast response

Excellent stability

Strong resistance to interference

Anti-corrosion material optional

High accuracy

SPECIFICATIONS

Item	Technical specifications
Range	0-30…100…500…700…2000mm
Output	4-20mA,0-5V, RS485
Supply Voltage	DC12-24V.
Comprehensive Accuracy	1.0%FS
Long-term stability	0.2%FS
Zero temperature drift	0.02%FS/℃
Full temperature drift	0.03%FS/℃
Ingress Protection	IP67
Operating Temperature	-40℃~ +80℃(Other temperatures can be customized)
Pressure range	-0.1mpa ~ 0.5mpa
storage temperature	-40 ~ +100℃
Blind area detection	5mm(optional),10mm(typ.)
Probe diameter	Ф16 mm
Fixed thread installation	M20×1.5, G1/2, customized; Flange DN25, DN40, DN50 can be installed
Electrical interface	Direct line
Measuring the dielectric	Oil (gasoline, diesel oil, hydraulic oil, lubricating oil), water (sewage), beverage, medical, chemical and other liquid media

PARAMETER SELECTION TABLE PARAMETER SELECTION TABLE

Remark	Series	Supply	Output	Range	Cable Length
RKL
	04
		A				12-24V
		X				Other
			A			4-20mA
			B			0-5V
			C			RS485(MODBUS-RTU)
			X			Other
				R		0~2000mm optional
					5000	5m
					...	...

Example: RKL-01AAR100mm5000 Supply:12-24V, Output:4-20mA, Range:100mm, Cable Length:5m.

PRODUCT DETAILS

PRODUCT APPLICATION

Engineering vehicles

Teaching equipment & laboratory

Generator sets mechanical equipment

Logistics freight fleets

Chemical and medical equipment

Sewage treatment and water tank
