 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

top rated solar radiation sensor manufacturer 1
top rated solar radiation sensor manufacturer 1

top rated solar radiation sensor manufacturer

Payment:
T/T, L/C or Paypal
MOQ:
2PCS
Model:
RK200-02
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry
Product Comparison
Rika Sensors has professional production workshops and great production technology. weather sensors we produce, in line with the national quality inspection standards, has reasonable structure, stable performance, good safety, and high reliability. It is also available in a wide range of types and specifications. Customers' diverse needs can be fully fulfilled.weather sensors produced by Rika Sensors stands out among many products in the same category. And the specific advantages are as follows.
  • top rated solar radiation sensor manufacturer 2
    v s
    top rated solar radiation sensor manufacturer 3
Product Details
To better learn about environmental monitoring, Rika Sensors will provide detailed pictures and detailed information in the following section for your reference.environmental monitoring, manufactured based on high-quality materials and advanced technology, has excellent quality and favorable price. It is a trustworthy product which receives recognition and support in the market.
  • top rated solar radiation sensor manufacturer 4

PRODUCT DESCRIPTION

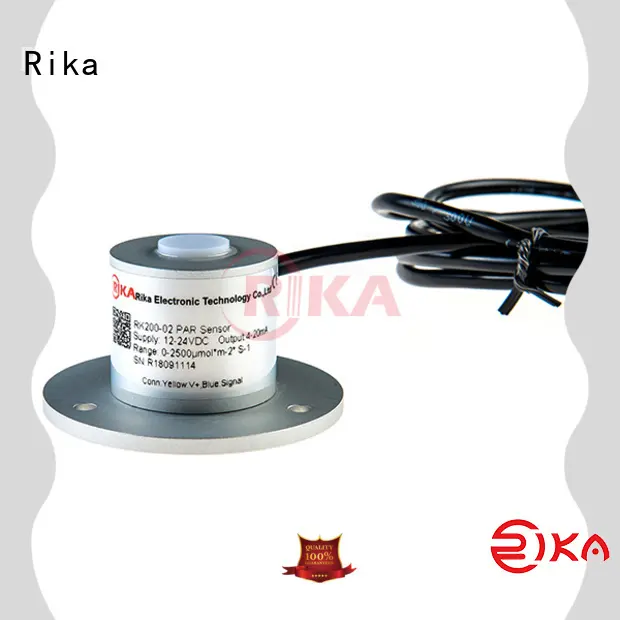

The RK200-02 PAR Sensor is mainly used for measuring solar radiation within 400~700nm wavelength. It is easy installation and can work continuously in all weathers. When there is sunlight, voltage output proportional to incident light intensity will be generated by the silicon-photo detector in the sensor. Its sensitivity is proportional to the cosine of incident light direct angle. Each product is with one sensitivity coefficient respectively. It can directly output radiation value in unit of μ*mol/m2*s.

    top rated solar radiation sensor manufacturer 5

    SPECIFICATIONS

    Item

    Specification

    Spectral range

    0-2500μ*mol/m2*s

    350-1100nm

    0-2000W/m2400-700nm

    Supply

    5V,12-24VDC

    Accuracy
    ±5% rdg

    Range

    0-2500μ*mol/m2,0-2000W/m2

    Output

    0-2000mV

    4-20mA(2-wires)

    RS485

    Sensitivity

    0-2500μ*mol/m2*s

    0.8mV/μmol*m-2* S-1

    6.4μA/μ*mol*m2*s/
    0-2000W/m21mV/W/m28uA/W/m2/

    Response time

    <1s (99%)

    Temperature effect

    <0.05%/℃

    Cosine correction

    <10% (until 80°)

    Non-linearity

    <±2%

    Operating temperature

    -40℃-+80℃°

    Shell material

    Aluminum alloy

    Storage Condition

    10℃-60℃@20%-90%RH


    OUTPUT CHARACTERISTICS

     0-2000mV

    Range:0-2000W  PAR values(W)= Voltage output value(μV)/1000

    Range:0-2500μ*mol/m2*s  PAR values(μ*mol/m2*s)= Voltage output value(μV)/800

     4-20 mA

    Range:0-2000W  PAR values(W)=(I(μA)-4000μA)/8 (Where I is output current value,unit:μA )

    Range:0-2500μ*mol/m2*s  PAR values(μ*mol/m2*s)= (I(μA)-4000μA)/6.4(Where I is output current value,unit:μA )

     RS485

    MODBUS-RTU

    DIMENSION

    top rated solar radiation sensor manufacturer 12

    In order to ensure measurement accuracy, please keep the horizontal installation.


    PRODUCT DETAILS

    top rated solar radiation sensor manufacturer 13

    top rated solar radiation sensor manufacturer 14Product Principle

    top rated solar radiation sensor manufacturer 15

    top rated solar radiation sensor manufacturer 16 Product Range

    top rated solar radiation sensor manufacturer 17

    top rated solar radiation sensor manufacturer 18Product Output Optional

    top rated solar radiation sensor manufacturer 19

    top rated solar radiation sensor manufacturer 20Product Installation

    PRODUCT APPLICATION



    Contact us
    we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
