    top rated ultrasonic wind sensor supplier for industrial applications

    top rated ultrasonic wind sensor supplier for industrial applications
    • top rated ultrasonic wind sensor supplier for industrial applications

    top rated ultrasonic wind sensor supplier for industrial applications

    Rika wind speed direction sensor is a product of the most advanced technology. We use 3d composite weaving, electrostatic nanometer mesh technology manufacturing, etc. to produce this product. This product is highly resistant to sand and hail
    Inquire Online
    Get the latest price
    Quantity Needed：
    Pieces
    E-mail：

    PRODUCT DESCRIPTION

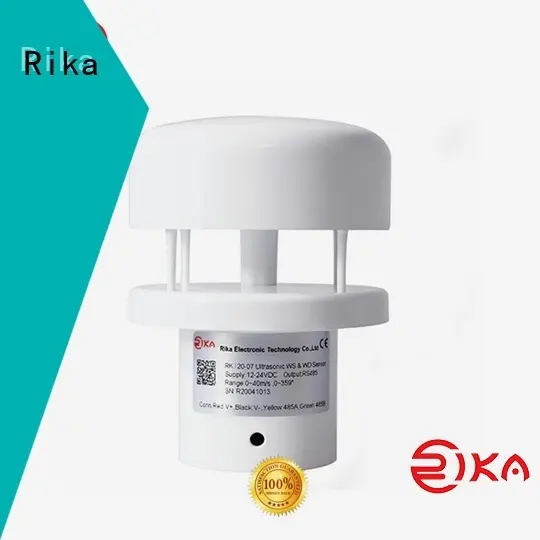

    RK120-07 The wind speed and direction meter is a kind of measuring instrument which uses the time difference of ultrasonic wave in the air to measure the wind speed and direction. RK120-07 uses low-power chip with power consumption of only 0.2W, which is especially suitable for solar or battery powered environment with high power consumption requirements. Due to the adoption of new technology and new process, the structure is more compact and compact. Optional temperature and air pressure module.

      top rated ultrasonic wind sensor supplier for industrial applications-1
      top rated ultrasonic wind sensor supplier for industrial applications-2
      Low starting threshold.
      top rated ultrasonic wind sensor supplier for industrial applications-3
      Overall carbon fiber material.
      top rated ultrasonic wind sensor supplier for industrial applications-4
      Strong corrosion resistant ability.
      top rated ultrasonic wind sensor supplier for industrial applications-5
      Light structure.
      top rated ultrasonic wind sensor supplier for industrial applications-6
      Various output signals optional.
      top rated ultrasonic wind sensor supplier for industrial applications-7
      Easy Installation.

      SPECIFICATIONS

      Item

      Technical Specification

      Power Supply

      12-24VDC

      Power consumption

      1.7W

      Output Signal

      RS232/RS485(Modbus/NMEA-0183),SDI-12

      Operating Temperature

      -30℃-+60℃

      Ingress Protection

      IP65

      Dimension

      Ф82*108mm

      Weight(unpacked)

      0.8kg

      Main material

      ABS


      Item

      Technical Specification

      Range

      Resolution

      Accuracy

      Wind Speed

      0-40m/s

      0.1m/s

      ±3%

      Wind Direction

      0-360°

      1°

      ±3°

      Starting Threshold0.1m/s
      		0.1m/s        -
      Extreme Wind Speed60m/s


      DIMENSION & MOUNTING

      Step1:

      Positioning: generally, RK120-07 is installed in a vertical installation pipe .ensure the measurement on the same level.

      For indoor use, the sensor can be used at any where .Directional installation to measure wind speed on different planes.

      Step2:

      There is rotary adjustable mounting holes at the bottom of the senor,when mounting the sensor, to ensure the indicator on on the sensor comply with the geographic north.

      Step3:

      Installation: the installation pipe needs 3 equally spaced holes, tapping M5 screws, position7.5mm from the top of the pipe.


      top rated ultrasonic wind sensor supplier for industrial applications-8


      PRODUCT DETAILS

      PRODUCT APPLICATION

      top rated ultrasonic wind sensor supplier for industrial applications-12
      Drilling Platform
      top rated ultrasonic wind sensor supplier for industrial applications-13
      Port
      top rated ultrasonic wind sensor supplier for industrial applications-14
      Automatic Weather Station
      top rated ultrasonic wind sensor supplier for industrial applications-15
      Scenic Spot
      top rated ultrasonic wind sensor supplier for industrial applications-16
      Ships
      top rated ultrasonic wind sensor supplier for industrial applications-17
      Tunnels



      wind detector is designed to bring great convenience for customers. Through hardening treatment, it is sturdy enough
      wind speed direction sensor from Hunan Rika Electronic Tech Co.,Ltd is of superior quality. Its accessories, imported from Japan, Germany, Japan, are reliable and high-precision
      It is wind detector that contributes to the uniqueness of our ultrasonic wind sensor. Its coating has been treated by high temperature, enabling users to maintain it more easily
      Hunan Rika Electronic Tech Co.,Ltd provides different designs of wind speed direction sensor for your choice. Its stainless steel raw materials make it easy to clean
      Through the extinguished design of our professional engineers, our wind speed direction sensor in its ultrasonic wind sensor rank top. The whole surface of the product is nonconductive
      Rika Sensors combines ultrasonic wind sensor with ultrasonic wind sensor together to ensure the durability of wind detector. The whole surface of the product is nonconductive
