    top rated wind speed monitor factory for meteorology field

    top rated wind speed monitor factory for meteorology field
    • top rated wind speed monitor factory for meteorology field

    top rated wind speed monitor factory for meteorology field

    Rika wind direction instrument hits all the high points in CertiPUR-US. No prohibited phthalates, low chemical emission, no ozone depleters and everything else for which CertiPUR keeps an eye out. This product has the advantage of vibration resistance
    Inquire Online
    Get the latest price
    Quantity Needed：
    Pieces
    E-mail：

    PRODUCT DESCRIPTION

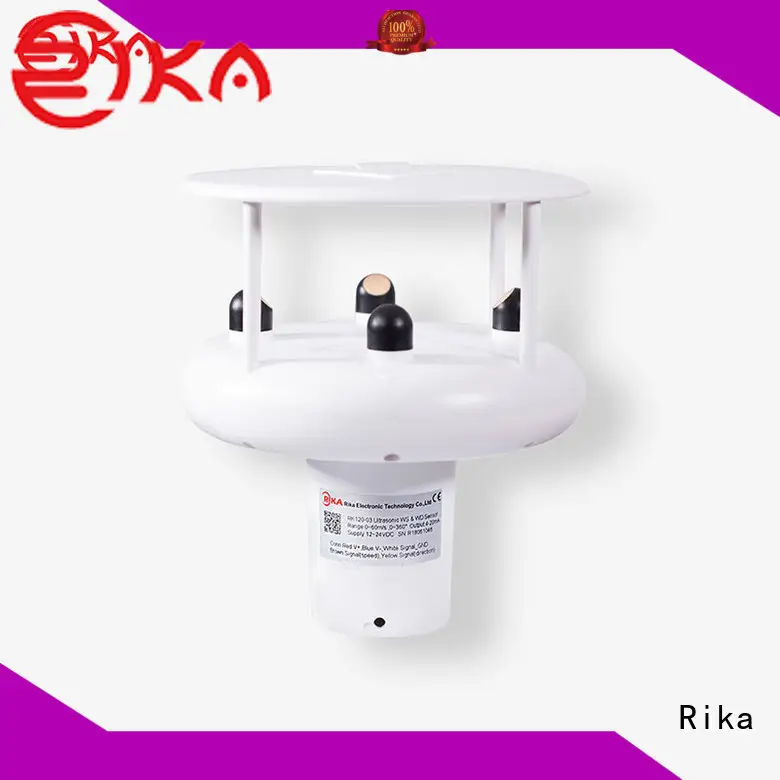

    RK120-03 Economical Ultrasonic Wind Sensor is a fully digital detector, high-precision sensors,  integrated by the ultrasonic wind speed and direction sensors. it can accurately and quickly detect the wind speed, wind direction; built-in signal processing unit can output a corresponding signal in response to user needs, with the structure lightweight and compact, no moving parts, high-strength structural design can be accurately detected in the harsh climatic conditions,made the accurate and stable elements, low maintenance, an open communications protocol and so on.It can be widely used in meteorology, oceanography, environment, airports, ports, laboratories, industry and agriculture, and transportation and other fields.

    top rated wind speed monitor factory for meteorology field-1
    top rated wind speed monitor factory for meteorology field-2
    Low starting threshold.
    top rated wind speed monitor factory for meteorology field-3
    Overall carbon fiber material.
    top rated wind speed monitor factory for meteorology field-4
    Strong corrosion resistant ability.
    top rated wind speed monitor factory for meteorology field-5
    Light structure.
    top rated wind speed monitor factory for meteorology field-6
    Various output signals optional.
    top rated wind speed monitor factory for meteorology field-7
    Easy Installation.

    SPECIFICATIONS

    Item

    Technical Specification

    Power Supply

    12-24VDC

    Power consumption

    <1W(Heating not activated); <3W(Heating activated)

    Output Signal

    RS232/RS485(Modbus/NMEA-0183),4-20mA(only for wind speed & direction) optional

    Operating Temperature

    -30℃-+70℃

    Ingress Protection

    IP66

    Heating power

    3W max.

    Electronic compass

    optional

    Atmospheric pressure

    optional

    Dimension

    Ф144*148mm

    Weight(unpacked)

    0.8kg

    Main material

    ASA



    Item

    Technical Specification

    Wind speed

    Wind direction

    Atmospheric pressure

    Range

    0-45m/s,0-60m/s

    0-360°

    150-1100hPa

    Resolution

    0.01m/s

    1°

    0.1hPa

    Accuracy

    ≤10m/s：±0.2m/s
         ＞10m/s：＜±2% the current value

    ±3°

    ±1 hPa

    Starting Threshold

    0.1m/s

    0.1m/s


    Extreme Wind Speed

    60m/s

    DIMENSION & MOUNTING

    There is rotary adjustable mounting holes at the bottom of the senor, when mounting the sensor, to ensure the indicator on on the sensor comply with the geographic north.
    top rated wind speed monitor factory for meteorology field-8
    top rated wind speed monitor factory for meteorology field-9

    PRODUCT DETAILS

    top rated wind speed monitor factory for meteorology field-10

    top rated wind speed monitor factory for meteorology field-11Ultrasonic Pavilion Reflection Principle

    top rated wind speed monitor factory for meteorology field-12

    top rated wind speed monitor factory for meteorology field-13 Suitable For Harsh Environment

    top rated wind speed monitor factory for meteorology field-14

    top rated wind speed monitor factory for meteorology field-15Auto-Locate The Installation Position

    top rated wind speed monitor factory for meteorology field-16

    top rated wind speed monitor factory for meteorology field-17Connectors and installation

    PRODUCT APPLICATION

    top rated wind speed monitor factory for meteorology field-18
    Automatic Weather Station
    top rated wind speed monitor factory for meteorology field-19
    Drilling Platform
    top rated wind speed monitor factory for meteorology field-20
    Port
    top rated wind speed monitor factory for meteorology field-21
    Ships
    top rated wind speed monitor factory for meteorology field-22
    Tunnels
    top rated wind speed monitor factory for meteorology field-23
    Scenic Spot



    Rika Sensors wind direction instrument features a special design which is well-designed by our professional designers.
    The production of Rika Sensors wind detector follows the normative conditions.
    Thanks to the upgrading technology and creative ideas, the design of Rika Sensors wind detector is especially unique in the industry.
    The application of advanced equipment gives Rika Sensors wind detector a fine finished.
    With the help of our skilled engineers, Rika Sensors wind detector is designed with a variety of innovative and practical designs.
    wind detector Excellent material selection, excellent workmanship, high quality, strong and durable, with the characteristics of acid and alkali resistance, corrosion resistance, heat resistance and so on.
