PRODUCT DESCRIPTION

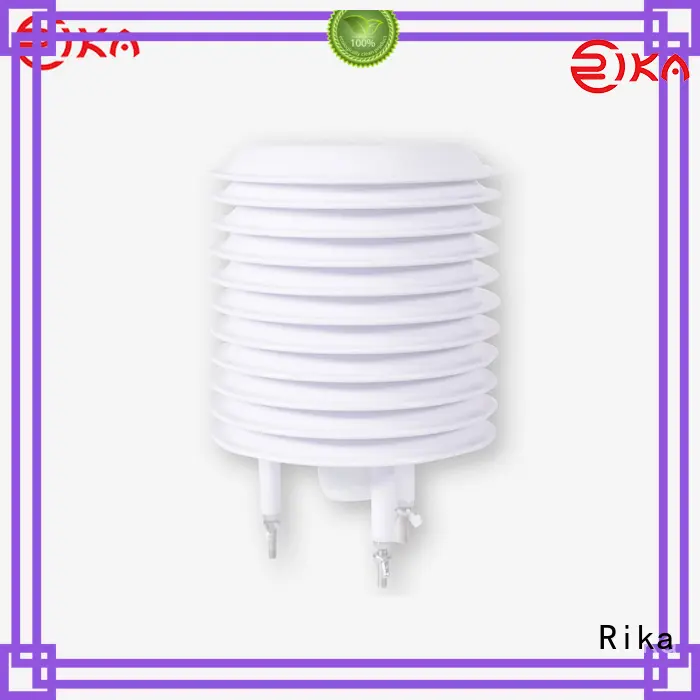

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.

best multi-plate radiation shield solution provider for relative humidity measurement-1

best multi-plate radiation shield solution provider for relative humidity measurement-2

Compact size for easy use

best multi-plate radiation shield solution provider for relative humidity measurement-3

Good air circulation around shield

best multi-plate radiation shield solution provider for relative humidity measurement-4

Excellent stability

best multi-plate radiation shield solution provider for relative humidity measurement-5

Simple operation screen

SPECIFICATIONS

Item	Specifications
Number of plates	4 -20 plates optional,typ.:11,14,19
Color	White
Material	Anti-radiation ABS engineering plastics & Stainless steel screw
Operating temperature	-40℃-+75℃
Dimension	Inner diameter:62mm,Outer diameter:140mm/180mm Height:180mm(11 plates),220mm(14 plates),280mm(19 plates)
Optional accessories	Metal bracket(304SS),Embrace hoop screw(inner diameter:60mm,304SS)

BRACKET DIMENSION & WATERPROOF GLANDS SPECIFICATIONS

All 304 stainless steel material （Unit:mm）

best multi-plate radiation shield solution provider for relative humidity measurement-6

best multi-plate radiation shield solution provider for relative humidity measurement-7

Waterproof Glands Specifications

DIMENSION

best multi-plate radiation shield solution provider for relative humidity measurement-8

Plates	Inner space(mm)	D1(mm)	H1(mm)	H2(mm)
4	ø62*45	140	51	approx.55
5	ø62*57	140	64	approx.55
6	ø62*70	140	76	approx.55
7	ø62*82	140	89	approx.55
8	ø62*95	140	101	approx.55
9	ø62*107	140	114	approx.55
10	ø62*120	140	126	approx.55
11	ø62*132	140	139	approx.55
12	ø62*145	140	151	approx.55
13	ø62*157	140	164	approx.55
14	ø62*170	140	176	approx.55
15	ø62*182	140	189	approx.55
16	ø62*195	140	201	approx.55
17	ø62*207	140	214	approx.55
18	ø62*220	140	226	approx.55
19	ø62*232	140	239	approx.55
20	ø62*245	140	251	approx.55

ADAPTER WATERPROOF GLANDS

PG Glands
Model	Cable/Sensor Diameter(mm)
PG7	3-6.5
PG9	4-8
PG11	5-10
PG13.5	6-12
PG16	10-13
PG19	12-15
PG21	13-18
PG25	16-21
PG29	18-25
PG36	22-32

best multi-plate radiation shield solution provider for relative humidity measurement-9

PRODUCT DETAILS

best multi-plate radiation shield solution provider for relative humidity measurement-10

best multi-plate radiation shield solution provider for relative humidity measurement-11 Enhanced UV resistance plastic

best multi-plate radiation shield solution provider for relative humidity measurement-12

best multi-plate radiation shield solution provider for relative humidity measurement-13 Plates quantity

best multi-plate radiation shield solution provider for relative humidity measurement-14

best multi-plate radiation shield solution provider for relative humidity measurement-15 Support & Mounting

best multi-plate radiation shield solution provider for relative humidity measurement-16

best multi-plate radiation shield solution provider for relative humidity measurement-17 Connectors for sensors

PRODUCT APPLICATION

best multi-plate radiation shield solution provider for relative humidity measurement-18

Agriculture Weather Station

best multi-plate radiation shield solution provider for relative humidity measurement-19

Automatic weather station

best multi-plate radiation shield solution provider for relative humidity measurement-20

PV Station

best multi-plate radiation shield solution provider for relative humidity measurement-21

Scenic Spot

best multi-plate radiation shield solution provider for relative humidity measurement-22

Schoolyard Weather Station

best multi-plate radiation shield solution provider for relative humidity measurement-23

Weather Station

k******q

Rika Sensors weather station radiation shield has passed the necessary tests that are required in the furniture industry. These tests cover a broad spectrum of aspects such as inflammability, moisture resistance, antibacterial property, and stability. We accept customized service whatever is outlook and function

x******t

Various on-site tests for Rika Sensors multi-plate radiation shield have been performed to assess its compliance. They include color shading, seam quality, measurements, labeling, and packaging. Made of thick steel panel, it is durable and dust-proof

p******g

Rika Sensors ambient weather radiation shield is analyzed in various ways. Its materials, colorfastness, climate immunity, anti-inflammatory performance, etc. are all assessed or tested. Equip Bill validator, coin distributor which support give change function

u******g

Rika Sensors weather station radiation shield is requested to undergo a range of quality tests. They are dimensional stability & accuracy, structural strength & sturdiness, colorfastness in washing and exposure, and overall hardness. The product is equipped with a GPRS remote management monitoring system

f******k

Rika Sensors multi-plate radiation shield is tested from different aspects. It has gone through both physical and mechanical tests, such as color shading, rub colorfastness, odor testing, and burn tests. Large inside space and modular design support that update machine and easy to maintain

n******b

This product does not shrink easily. The fabric weaves tightly, the structure is firm, is not easy to be destroyed by the outside environment. This product is CE and RoHS certified
