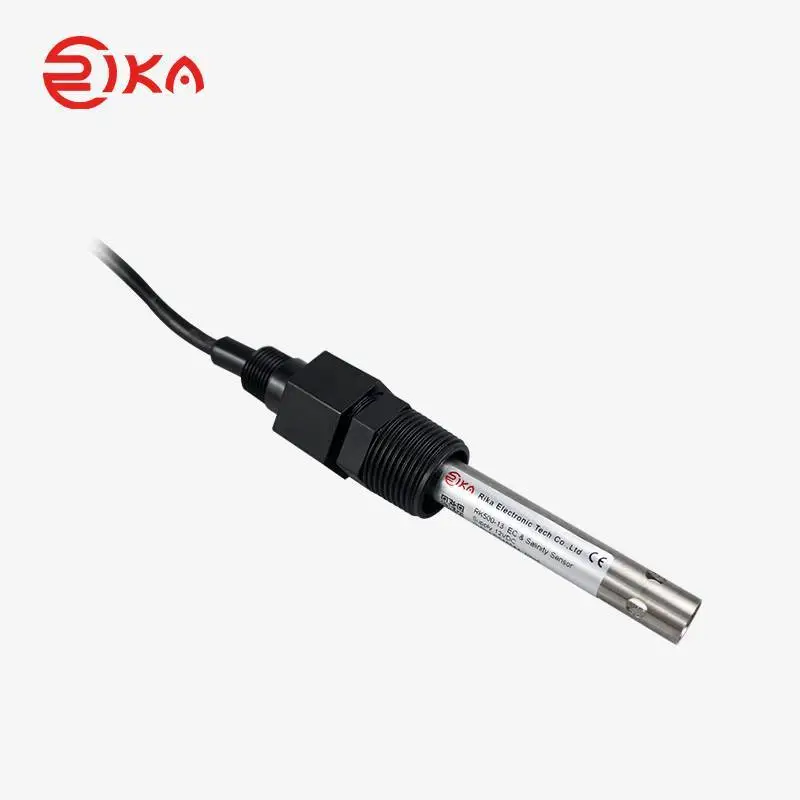

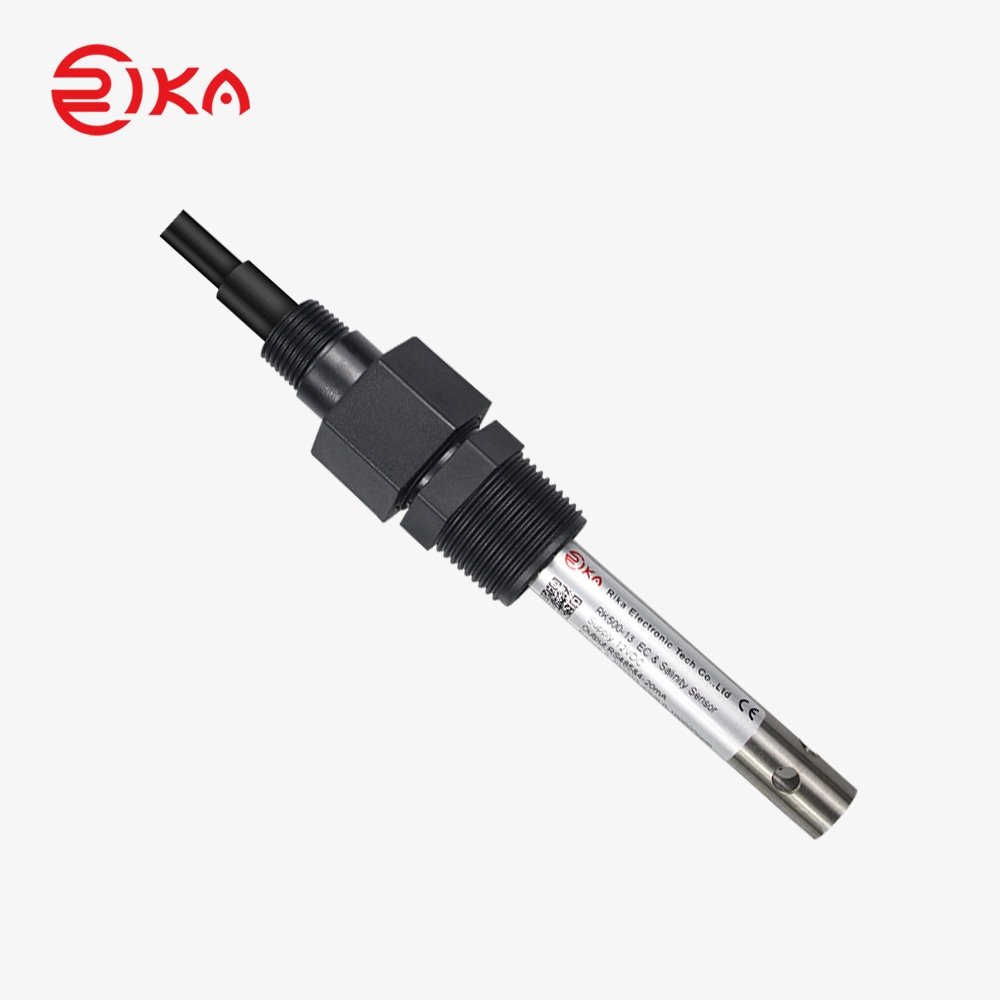

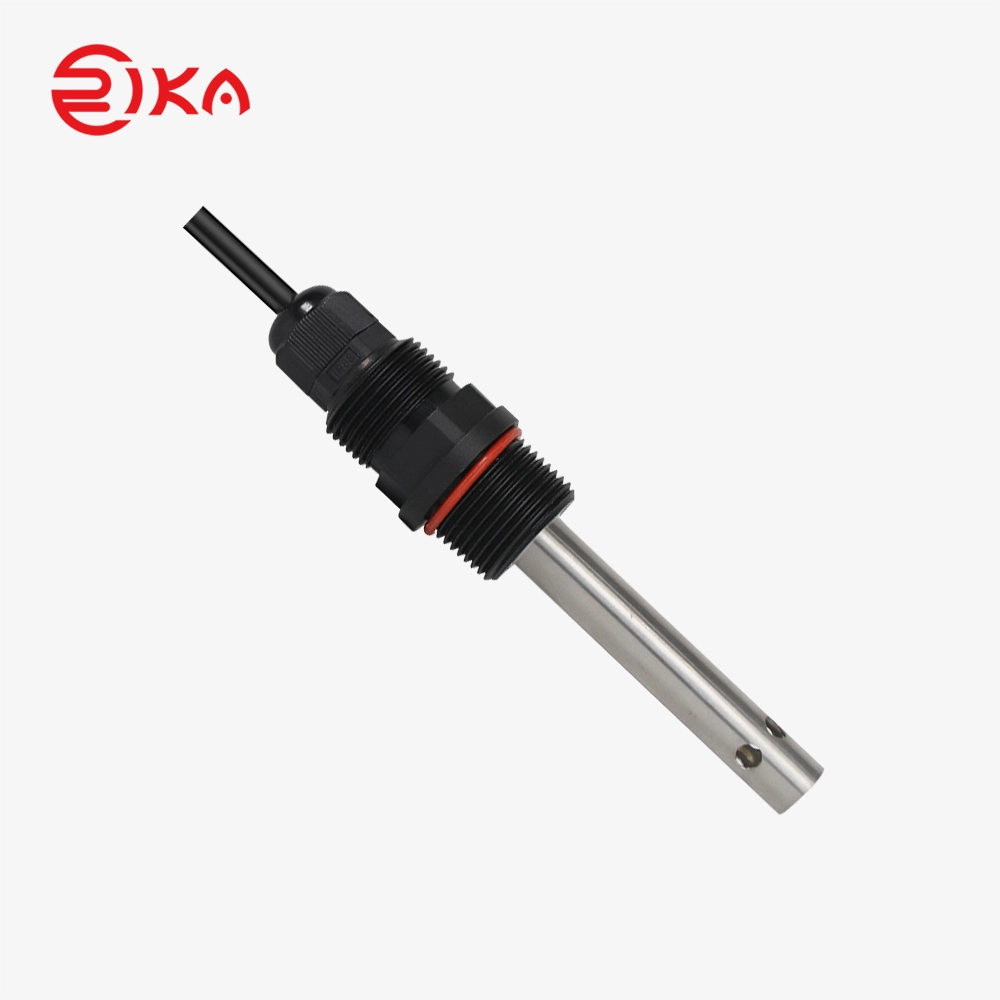

RK500-13 Online EC/Salinity Sensor

B站不支持收货地址

B站不支持库存规格

Model:: RK500-13

MOQ:: 2 PCS

Payment:: T/T, L/C or Paypal

Lead Time:: 5-7 days

Certification:: CE-EMC, CE-LVD, RoHS, ISO9001

OEM/ODM:: Available

B站不支持优惠卷

Inquire Online
download

Cancel
PDF Download

Add success, do you want to check your shopping cart?

Ok Close

B站不支持产品保障

该产品后台详情无内容

这里可以自定义设置

PRODUCT DESCRIPTION

RK500-13 ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning extending the life time.

product-Rika Sensors-RK500-13 Online ECSalinity Sensor-img-2

High precision.

High sensitivity.

Fast response.

Widely used.

Excellent stability.

Simple operation.

SPECIFICATIONS

Item	Technical Specification
	EC	Salinity
Measuring medium	Liquid
Principle	Frequency conversion method
Range	0～500us/cm, 0～5000us/cm, 0～10000us/cm, 0～200000us/cm(any range of 0-300ms/cm can be customized, 1ms/cm = 1000us/cm)	0～100000ppm(mg/L) 1ppm(mg/L)=1000ppb(ug/L)=1000000ppt(ng/L)
Supply	7-30VDC(power consumption<0.2W)
Accuracy	±1%
Response time	1s
Output Signal	4-20mA & RS485 at the same time
Electrode	Titanium alloy
Temperature compensation		Automatic compensation
Drift	≤0.3%FS/24h
Operating Temperature	-20℃-+80℃
Probe material	316L or ABS(Strongly corrosive liquids)
Ingress Protection	IP68
Storage	10-60℃@20%-90%RH
Cable length	Default:5m

DIMENSION

Dimension （Unit：mm）

Installation & Usage

Directly into the liquid
Adopt submersible mounting bracket(show in the below figure)

PRODUCT DETAILS

product-Rika Sensors-img-4 Product Principle & Material

product-Rika Sensors-RK500-13 Online ECSalinity Sensor-img-4 Temperature Compensated

product-RK500-13 Online ECSalinity Sensor-Rika Sensors-img-5

product-Rika Sensors-img-5 Installation

PRODUCT APPLICATION

Agricultural Irrigation
