RK500-13 Type-C Water quality conductivity probe（Strong anti-corrosion） 1

RK500-13 Type-C Water quality conductivity probe（Strong anti-corrosion） 2

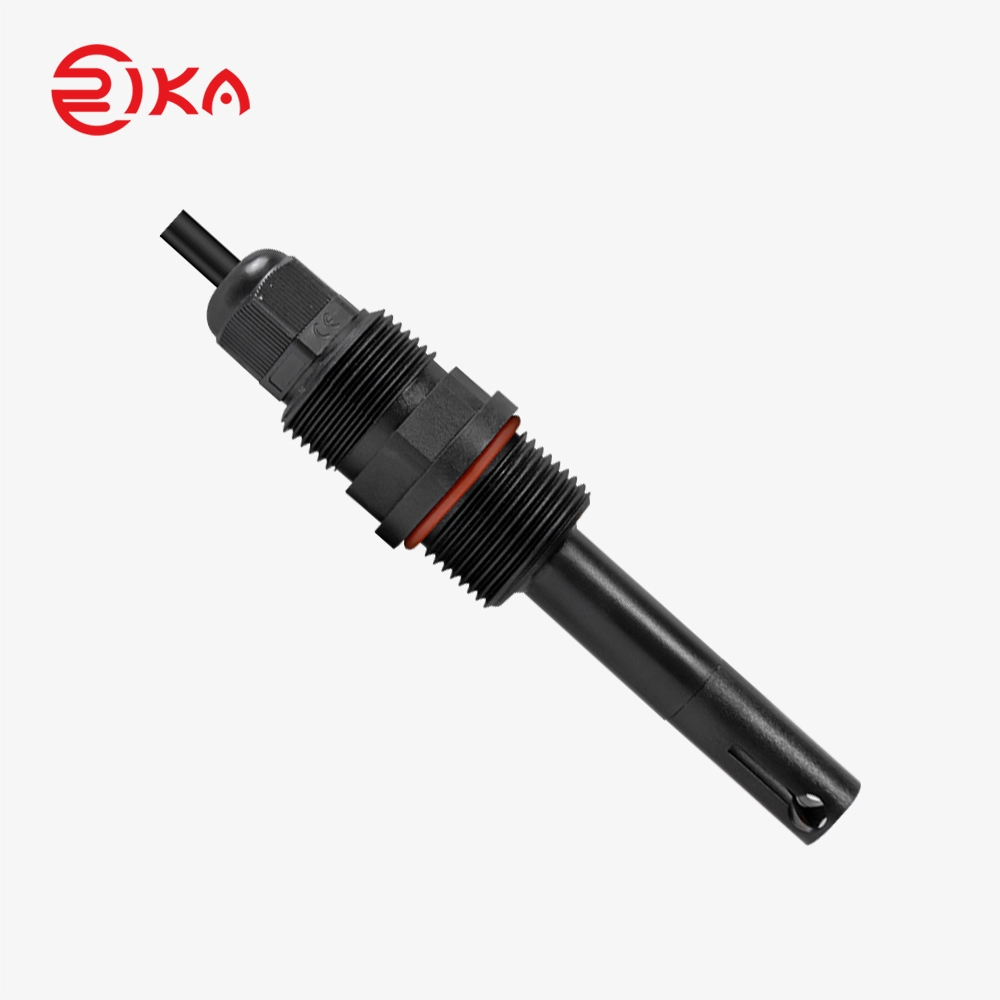

RK500-13 Type-C Water quality conductivity probe（Strong anti-corrosion）

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

1 PCS

Model:

RK500-13 Type-B

Lead Time:

7-11 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

download

RK500-13 EC Sensor specification v5

Write a Review

PDF Download

PRODUCT DESCRIPTION

The RK500-13-C Ec Sensor stands as a pinnacle of engineering in electrical conductivity (EC) monitoring technology, engineered to meet the rigorous demands of modern industrial, marine, and environmental applications. As a versatile and robust solution, it redefines precision sensing through the integration of advanced materials, intelligent design, and industry-leading performance, making it an indispensable tool for professionals requiring unmatched accuracy, durability, and adaptability in critical monitoring systems.

Crafted with a nylon fiber-graphite electrode composite, this sensor delivers exceptional strong anti-corrosion capabilities, ideal for harsh environments such as marine aquaculture, highly corrosive wastewater, and complex industrial scenarios. Its robust construction features NPT3/4 threaded connections on both upper and lower ends, ensuring secure installation, while its 1.0MPa pressure resistance guarantees reliability even in high-pressure conditions.

RK500-13 Type-C Water quality conductivity probe（Strong anti-corrosion） 3

RK500-13 Type-C Water quality conductivity probe（Strong anti-corrosion） 4

High precision.

RK500-13 Type-C Water quality conductivity probe（Strong anti-corrosion） 5

High sensitivity.

RK500-13 Type-C Water quality conductivity probe（Strong anti-corrosion） 6

Fast response.

RK500-13 Type-C Water quality conductivity probe（Strong anti-corrosion） 7

Widely used.

RK500-13 Type-C Water quality conductivity probe（Strong anti-corrosion） 8

Excellent stability.

RK500-13 Type-C Water quality conductivity probe（Strong anti-corrosion） 9

Simple operation.

SPECIFICATIONS

Technical Parameter
Type	RK500-13-C
Type	Strong anti-corrosion
Main material	Nylon fiber+graphite electrode
Screw thread	Upper: NPT3/4 Bottom: NPT3/4
Pressure Resistance	1.0MPa
Temperature Compensation	Automatic (Temperature 0-60℃)
Output signal	4-20mA & RS485 at the same time
Supply	7-30VDC
Range EC	0～2000μs/cm, 0～5000μs/cm, 0～10000μs/cm, 0～20000μs/cm (any range of 0-300ms/cm can be customized, 1ms/cm = 1000μs/cm)
Accuracy	±1%FS
Resolution	0.01mS/cm
Power consumption	<0.2W
Principle	Frequency conversion method
Response time	1s
Drift	≤0.3%FS/24h
Measurement environment	0-60℃(High temperature electrodes can be customized)
Ingress protection	IP68
Storage	10-60℃@20%-90%RH
Cable length	5m default, other length customizable
Application	Mariculture, strongly corrosive sewage, complex scenes etc
