PRODUCT DESCRIPTION

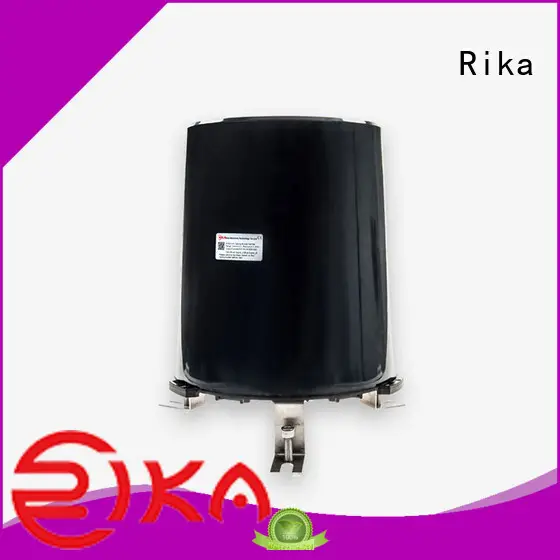

RK400-04 Economical Tipping Bucket Rainfall Sensor is a hydrology, meteorological instrument used to measure the nature of rainfall, and it converts the precipitation into a pulse signal output. Designed with insect-proof nets, free blocking nozzle and built-in leveller. The model can be used in meteorology, hydrology, agriculture, forestry, field monitoring stations and other industries. Combined with rainfall recorder can be used to measure measure precipitation, precipitation intensity, precipitation time.

best rain and temperature gauge manufacturer-1

best rain and temperature gauge manufacturer-2

Compact size for easy use.

best rain and temperature gauge manufacturer-3

Auto-heating function.

best rain and temperature gauge manufacturer-4

High accuracy.

best rain and temperature gauge manufacturer-5

High accuracy.

best rain and temperature gauge manufacturer-6

Stainless steel Construction.

best rain and temperature gauge manufacturer-7

Outlet with insect-proof.

SPECIFICATIONS

Item	Specification
Collector	Diameter :φ200mm, height: 271mm
Measured rainfall intensity	Max: 4mm/min
Allow rainfall intensity	Max: 8mm/min
Resolution	0.2mm
Accuracy(2mm/min)	±4%
Maximum load voltage	30VDC(pulse output)
Maximum load current	20mA
Output	Pulses(@10kΩ&0.01uF),RS485(12-24VDC supply)
Operating temperature	0-60℃@0%-100%RH
Weight(unpacked)	Rainfall collector & tipping bucket: ABS, Supporting leg:304SS
Weight(unpacked)	2kg

WORKING PROCESS DIMENSION & MOUNTING

DIMENSION & MOUNTING

Adjust the balance foot screws to ensure that it is in a horizontal position.Using three fastening screws to fix this three support legs at the platform to keep the entire apparatus at an optimum level , which ensure the accuracy of rainfall data.

best rain and temperature gauge manufacturer-8

WORKING PROCESS

Rainfall is captured in the 200mm diameter collector funnel and is directed through a delivery pipe to fill a divided ABS injection molded tipping bucket device.The bucket is pivoted through its center and has a preset calibration to tip for 0.2 mm of rainfall. When the bucket is “full”, it pivots and empties - this action magnetically closes and opens a reed switch, sending a pulse signal to the data logger or electronic counter. Through this tipping “seesaw” action, the other side of the bucket is aligned to receive the flow from the delivery pipe. This recording and tipping cycle continues with rainfall.

PRODUCT DETAILS

best rain and temperature gauge manufacturer-9

best rain and temperature gauge manufacturer-10 Product Principle

best rain and temperature gauge manufacturer-11

best rain and temperature gauge manufacturer-12 Material

best rain and temperature gauge manufacturer-13

best rain and temperature gauge manufacturer-14 Leaf Filter

best rain and temperature gauge manufacturer-15

best rain and temperature gauge manufacturer-16 Horizontal Adjustment

PRODUCT APPLICATION

best rain and temperature gauge manufacturer-17

n******u

Rika Sensors rain gauge station is fabricated using quality raw materials and advanced production technology. At Tigerwings, each product is ensured to be non-toxic and environmentally friendly

f******e

Premium raw materials: Rika Sensors rain gauge station is made of high quality raw materials. They are supplied by our reliable partners who have signed contracts and established cooperation relationship with us for over years. Tigerwings offers rubber pads with top quality and long-time use without deformation

o******p

The progress production of Rika Sensors rain and temperature gauge leads the industry. Tigerwings has worked with DELL, Disney, Rantopad, Logitech, etc

a******a

Rika Sensors rain gauge station, with comprehensive functionality and high performance, is developed by top-class R&D team. The team has spent a lot time developing the new function of this product. Tigerwings has 16 years of experience in manufacturing foam rubber pad

u******f

Rika Sensors rain gauge station we provide is manufactured under the vigilance of our diligent professionals as per quality norms using premium quality materials. Tigerwings uses advanced German printing machine to ensure premium printing quality

s******m

The product features accurate sizes. Its parts are clamped in forms having the proper contour and then brought in contact with high-speed rotating knives to get a proper size. Tigerwings offers rubber pads featuring good durability, anti-deformation, and slip resistance
