great air quality monitoring sensors solution provider for dust monitoring

Great air quality monitoring sensors solution provider for dust monitoring

Model:
RK330-01
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Comparison
Rika Sensors pays great attention to integrity and business reputation. We strictly control the quality and production cost in the production. All these guarantee environmental monitoring to be quality-reliable and price-favorable.Rika Sensors's environmental monitoring has been substantially improved in a scientific way, as shown in the following aspects.
  • product-Rika Sensors-img
    product-Rika Sensors-great air quality monitoring sensors solution provider for dust monitoring-img
Application Scope
With wide application, weather sensors is suitable for various industries. Here are a few application scenes for you.Rika Sensors insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.
  • great air quality monitoring sensors solution provider for dust monitoring-Rika Sensors-img-1

PRODUCT DESCRIPTION

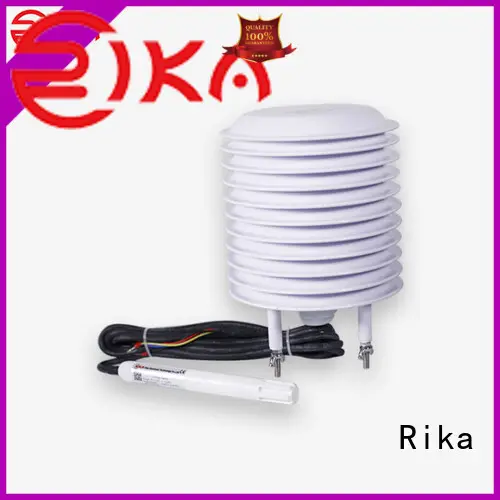

RK330-01 Atmospheric Temperature, Humidity & Pressure Sensor is a professional measurement of air temperature, relative humidity & barometric pressure. Sensors are built-in the water-proof and anti-UV shelter. It is widely used in agriculture, forestry, meteorology as well as a climate chamber, warehousing and other places.This model also can be equipped with 11 plates radiation shield(RK95-01) to protect the sensors from solar radiation and rain.

great air quality monitoring sensors solution provider for dust monitoring-1

SPECIFICATIONS


Item

SPECIFICATIONS

Temperature

HumidityPressure

Range

-40-60℃

0-100%RH10-110kPa(100-1100hPa)

Resolution

0.1℃

0.5%RH0.1hPa

Accuracy

±0.5℃

±3%RH±1hPa

Supply

5VDC, 12-24VDC

Output Signal

4-20mA,0-5V,0-10V,RS485(MODBUS),IIC

Current Consumption

<20mA

Operating Temperature

-40℃-+80℃

Ingress Protection

IP65

Storage

10-60℃@20%-90%RH

Weight(unpacked)

120g

Probe material

ABS

Radiation Shield(optional)

RK95-01,11 plates

* Analog output only is proper for one or two measurement parameters.

DIMENSION & MOUNTING

PRODUCT DETAILS

PRODUCT APPLICATION



The manufacturing process of Rika Sensors air quality monitoring sensors includes profiles extruding, cutting, CNC machining, deburring, and surface treating. All of these procedures have to be inspected by the QC team to meet the highest requirements in the heat sink industry.
During the development of Rika Sensors temperature and humidity sensor, the interface with the device issue is taken into consideration with the purpose of reducing the tiny air gaps between the component and the product.
The quality control of Rika Sensors air quality monitoring sensors is conducted rigorously. It is tested in terms of its air circulation, surface treatment, as well as the most important part, thermal dissipation performance.
Many design factors of Rika Sensors co2 sensor have been taken into consideration by our designers during the preliminary stage. These factors include thermal resistance, materials, fin efficiency, and spreading resistance.
Rika Sensors air quality monitoring sensors is developed professionally by the in-house R&D team who strives to provide a specific heat dissipation solution for our customers.
Before delivering, the product is closely inspected on various quality parameters.
