With a focus on quality, Rika Sensors pays great attention to the details of weather sensors.Rika Sensors is certified by various qualifications. We have advanced production technology and great production capability. weather sensors has many advantages such as reasonable structure, excellent performance, good quality, and affordable price.

Application Scope

Rika Sensors's environmental monitoring is mainly used in the following aspects.While providing quality products, Rika Sensors is dedicated to providing personalized solutions for customers according to their needs and actual situations.

PRODUCT DESCRIPTION

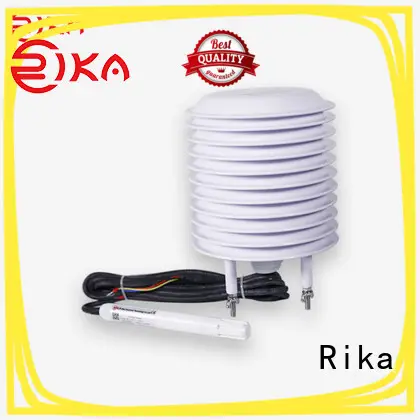

RK330-01 Atmospheric Temperature, Humidity & Pressure Sensor is a professional measurement of air temperature, relative humidity & barometric pressure. Sensors are built-in the water-proof and anti-UV shelter. It is widely used in agriculture, forestry, meteorology as well as a climate chamber, warehousing and other places.This model also can be equipped with 11 plates radiation shield(RK95-01) to protect the sensors from solar radiation and rain.

great air quality sensor industry for humidity monitoring-1

great air quality sensor industry for humidity monitoring-2

High sensitivity.

great air quality sensor industry for humidity monitoring-3

LCD display optional.

great air quality sensor industry for humidity monitoring-4

Temperature compensation.

great air quality sensor industry for humidity monitoring-5

Fast response.

great air quality sensor industry for humidity monitoring-6

Multiple signal output options.

great air quality sensor industry for humidity monitoring-7

Excellent stability.

SPECIFICATIONS

Item	SPECIFICATIONS
	Temperature	Humidity	Pressure
Range	-40-60℃	0-100%RH	10-110kPa(100-1100hPa)
Resolution	0.1℃	0.5%RH	0.1hPa
Accuracy	±0.5℃	±3%RH	±1hPa
Supply	5VDC, 12-24VDC
Output Signal	4-20mA,0-5V,0-10V,RS485(MODBUS),IIC
Current Consumption	<20mA
Operating Temperature	-40℃-+80℃
Ingress Protection	IP65
Storage	10-60℃@20%-90%RH
Weight(unpacked)	120g
Probe material	ABS
Radiation Shield(optional)	RK95-01,11 plates

* Analog output only is proper for one or two measurement parameters.

DIMENSION & MOUNTING

Unit:mm

great air quality sensor industry for humidity monitoring-8

great air quality sensor industry for humidity monitoring-9

MOUNTING

1. Install the product in stable environment area, avoid direct sunlight, away from windows air-conditioning, heating and other equipment. Otherwise it will cause measurement inaccuracies.
2.Fixing rail is optional.
3.If you use indoor, recommends clamp to install, as shown on the right picture.

PRODUCT DETAILS

PRODUCT APPLICATION

great air quality sensor industry for humidity monitoring-11

Schoolyard Weather Station

great air quality sensor industry for humidity monitoring-18

Solar radiation monitoring station

h******g

Rika Sensors temperature and humidity sensor is expertly manufactured according to the guidance of lean production method. This product has been applied to different industries such as transportation, plastic, metallurgy, chemistry, textile, tobacco, food processing, printing, etc

p******k

Rika Sensors dust sensor is produced according to the high production standards through the combination of traditional craftsmanship and modern technology. This product is not prone to breaks or cracks

i******j

Rika Sensors temperature and humidity sensor is of various modern and stylish designs. This product is treated with hot-dipped galvanizing for perfect weather resistance

q******f

Excellent craftsmanship: Rika Sensors leaf wetness sensor is crafted with excellent craftsmanship which is a result of talents and skills. Its superior craftsmanship makes it high quality. Adopting energy-saving technologies, the product consumes little energy

l******d

The progress production of Rika Sensors leaf wetness sensor leads the industry. This product has been certified under CE and RoHS

p******g

ndir co2 sensor ensures our temperature and humidity sensor sold well over the world. It can detect and respond quickly to some types of input
