PRODUCT DESCRIPTION

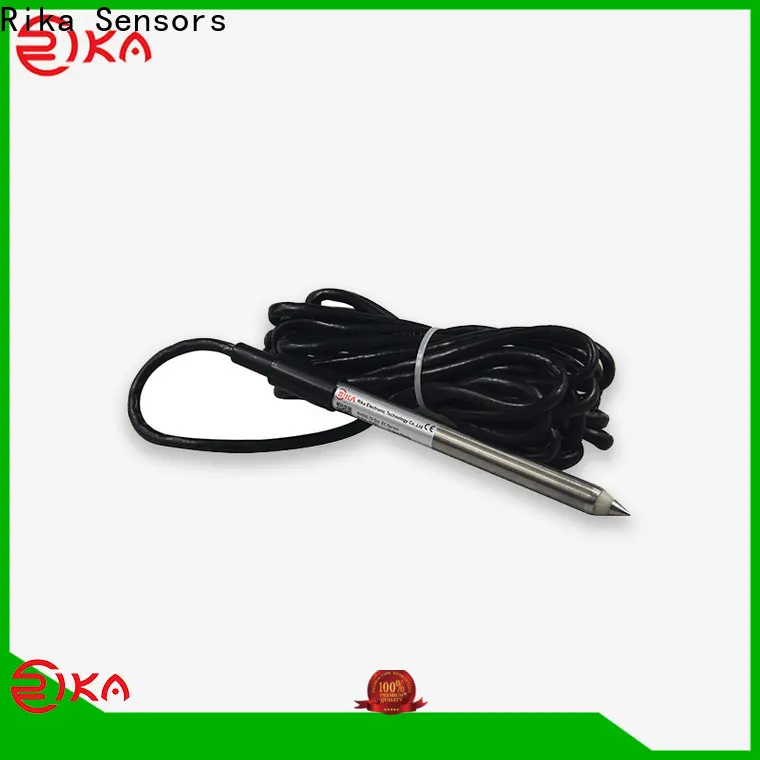

RK520-02 Soil Moisture, Temperature & soil EC Sensor is integrated the moisture, temperature & EC measurement.The stainless steel probe is inserted into soil surface or soil profile to test quickly. The product with temperature compensation to ensure the accuracy of measurement.The probe can be permanently embedded underground and be connected to a data logger for unlimited testing.
SPECIFICATIONS
Item | Technical Specification | ||
Moisture | Temperature | EC | |
Range | 0-100%(m3/m3) | -30℃-+70℃ | 0-10mS/cm |
Accuracy | ±3% | ±0.3℃ | ±2%FS |
Output Signal | RS485,0-2V | ||
Response Time | <1s | ||
Supply | 5VDC, 12-24VDC | ||
Effective measurement area | With the center of the probe diameter is 70mm, high 70mm cylinder | ||
Housing | ABS | ||
Dimensions | 71*45*16mm( probe:3* Ø3*70mm) | ||
Operating Temperature | -40℃-+80℃ | ||
Ingress Protection | IP68 | ||
Storage | 10-60℃@20%-90%RH | ||
Probe material | 316L stainless steel |
WORKING PROCESS & DIMENSION
PRODUCT DETAILS
PRODUCT APPLICATION
